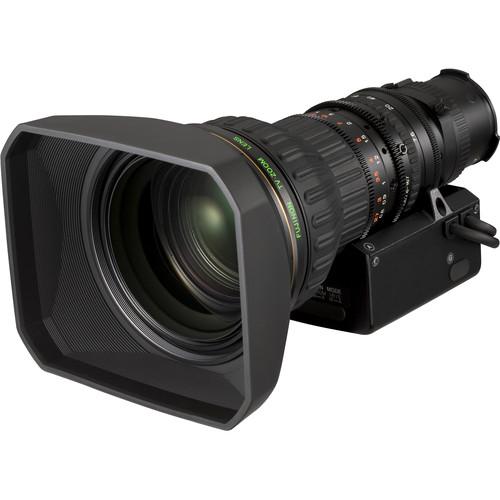

User Manual for Fujinon 7.6-167mm f 1.8-2.5 ENG Style Lens with Digital Servo and Quickframe Click to enlarge the picture
Contents of the user manual for the Fujinon 7.6-167mm f 1.8-2.5 ENG Style
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon 7.6-167mm f 1.8-2.5 ENG Style contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon 7.6-167mm f/1.8-2.5 ENG Style Lens with Digital Servo and Quickframe provides 2/3" cameras with a slightly wide to super telephoto focal range. The lens features a fast maximum aperture of f/1.8 at 7.6-120mm and f/2.5 at 167mm. A digital servo provides powered focus and zoom, and Quickframe allows for fast manual zooms without disengaging the servo zoom lock.
Internal focusing minimizes the effects of lens breathing, ensuring a more consistent focal length when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Zoom Limit function purposefully constrains the focal range to only desirable focal lengths. The Quickframe functionality allows you to manually adjust your zoom without disengaging the zoom servo. - 7.6-167mm focal length, a 22x zoom ratio for 2/3" cameras
- Fast maximum aperture of f/1.8 at 7.6-120mm and f/2.5 at 167mm
- Digital servo for focus and zoom
- The Inner Focus design means that any focusing action only moves elements in the middle of the lens so the length of the lens does not change while focusing. This feature also enables the use of polarizing filters and matte boxes because the front element will not rotate
- Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom speed is improved to 0.7 seconds end to end
- Quick Frame allows the operator to make manual zooms while the lens is in servo zoom mode. The mechanical clutch that allows this function reduces backlash in the zoom motor/lens combination, providing extremely accurate and repeatable zooms, which makes this lens well suited for robotic and virtual reality applications
In the Box Fujinon 7.6-167mm f/1.8-2.5 ENG Style Lens with Digital Servo and Quickframe 2-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 7.6-167mm f 1.8-2.5 ENG Style Lens with Digital Servo and Quickframe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 7.6-167mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 7.6 to 167mm | | Built-In Extender | None | | Zoom Ratio | 22x | | Angle of View | 16:9
Wide: 64.5 x 39.05° (H x V)
Tele: 3.28 x 1.85° (H x V) | | Maximum Aperture | f/1.8 to 2.5 (T9 to 2.6) | | Filter Thread | M95 x 1 mm
M107 x 1 mm Filter attaches to the lens hood | | Minimum Focus Distance from Image Plane | 3.51' / 1.07 m | | Minimum Object Distance | 2.62' / 0.8 m | | Dimensions | 3.8 x 8.8" / 10.0 x 22.3 cm (
