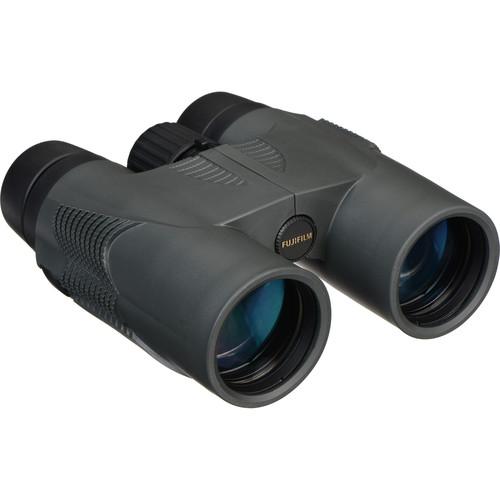

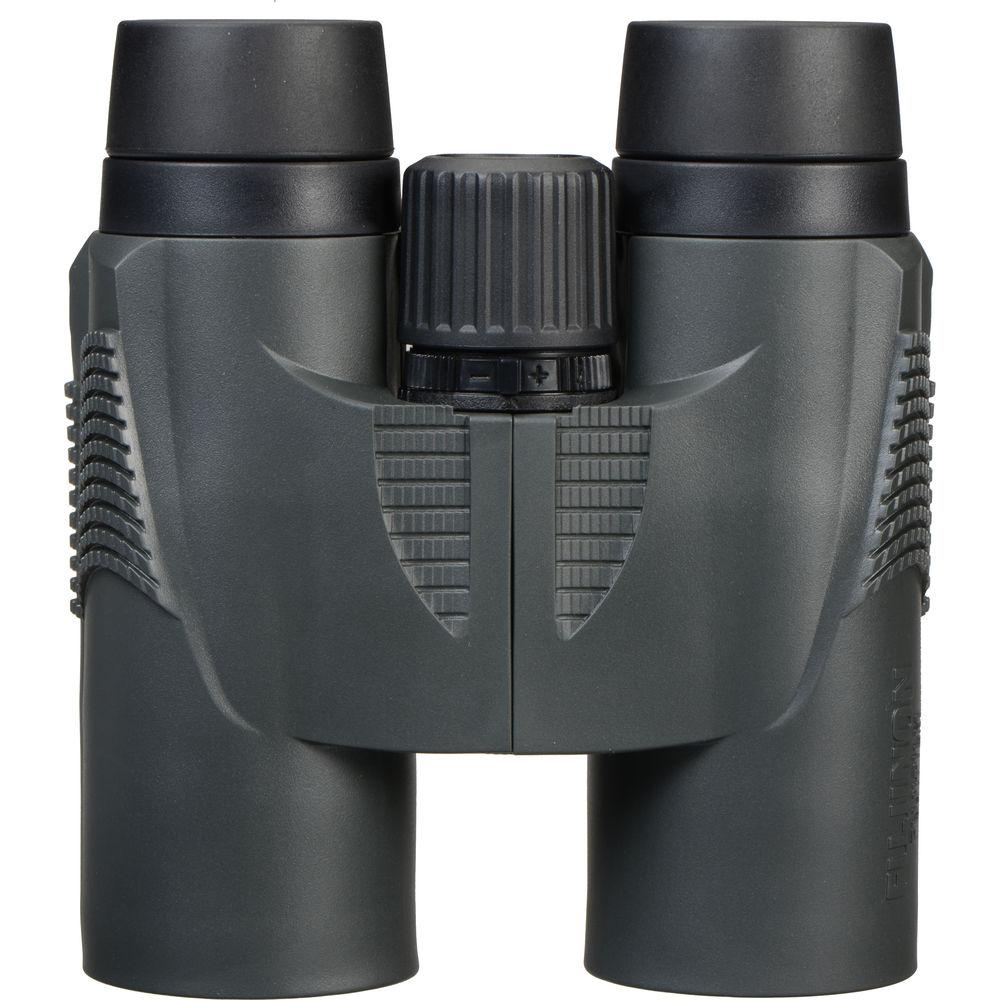

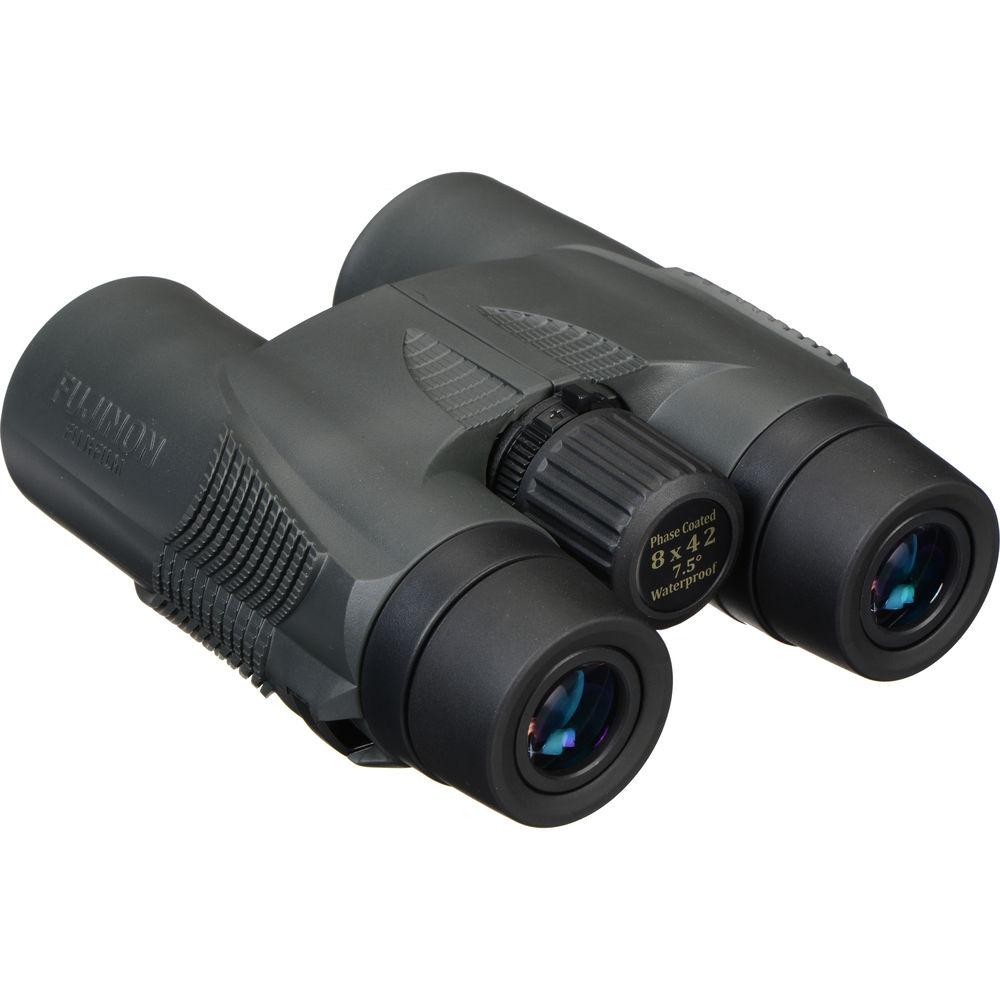

User Manual for Fujinon 8x42 KF Binocular Click to enlarge the picture
Contents of the user manual for the Fujinon 8x42 KF Binocular
- Product category: Binoculars Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Binoculars
 |
User manual for the Fujinon 8x42 KF Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The 8x42 KF Binocular from Fujinon utilizes phase-corrected BK7 roof prisms with anti-reflection fully multi-coated optics to create images that are clear and bright with minimal distortion and true color transmission. The 8x magnification is ideal for resolving detail in heavy brush, where accurate identification is critical. With a long eye relief, a wide exit pupil, and a wide apparent angle of view, you are free to experience an immersive observational experience without the noticeable visible hand shake common with higher magnification optics.Built to withstand the rigors of constant outdoor use, the housing features an armored exterior that protects the binocular from drops and impacts as well as helps to provide a slip-resistant grip, especially when it is cold and wet out. The optical tubes are nitrogen filled and O-ring sealed for water and fogproof performance in all weather conditions. For long-duration observation sessions, the KF binocular can be mounted on a tripod using an optional adapter. - Optical Performance
-
- 8x magnification
- 42mm diameter objective
- BK7 roof prisms
- Phase-corrected silver-coated prisms provide enhanced color rendition and contrast
- Anti-reflection fully multi-coated optics reduce light loss and increase overall image brightness, color, and clarity
- 397' field of view at 1000 yards
- Wide 60° apparent angle of view
- Use and Handling
-
- Center focus wheel
- Right-eye dioptric adjustment
- 56-74mm interpupillary adjustment range
- Tripod mountable with optional adapter
- Wide 5.25mm exit pupil
- Long 18mm long eye relief
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Protective rubber armoring provides slip-resistant grip
- Waterproof and nitrogen filled for fogproof performance
- Weight: 23.5 ounces
UPC: 631267108422 In the Box Fujinon 8x42 KF Binocular Lens Cloth Neck Strap Carrying Case 2 x Ocular Lens Covers 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 8x42 KF Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 600015990 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 18.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.6 x 5.4 x 2.2" / 14.3 x 13.7 x 5.5 cm | | Weight | 23.5 oz / 666.2 g | | | | Package Weight | 1.91 lb | | Box Dimensions (LxWxH) | 8.1 x 6.45 x 2.95" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
