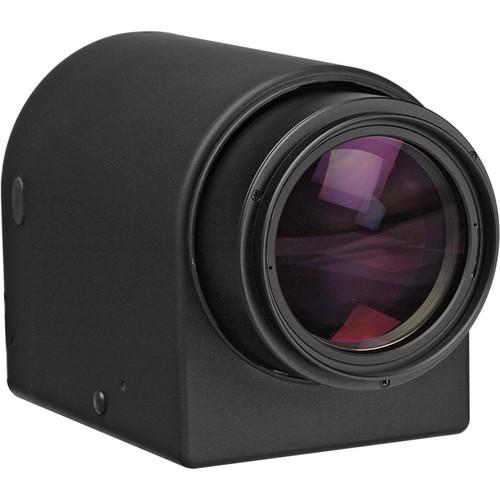

User Manual for Fujinon C22X17R3J-SSF Telephoto Zoom Lens Click to enlarge the picture
Contents of the user manual for the Fujinon C22X17R3J-SSF Telephoto Zoom Lens
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon C22X17R3J-SSF Telephoto Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon C22X17R3J-SSF Telephoto Zoom Lens (17-374mm, 22x Zoom) with near-infrared wavelength selection mechanism is suitable for use with day/night cameras. In addition to 22x zoom, the lens has a focal length that ranges from 17-374mm and an aperture of f/2.3. When used with 1/2" cameras, the lens can achieve telephoto at the field angle of 0°59', making it suitable for long distance monitoring. It also features a visible or IR cut filter switch mechanism. Equipped with a C-type lens mount (metal), the telephoto lens is compatible with 1", 2/3", 1/2" and 1/3" cameras. It allows motor drive operation of zoom and focus, and features auto (video type) iris. - Near-infrared wavelength selection mechanism
- Suitable for use with day/night cameras
- Focal length of 17-374 mm and 22x zoom
- Back focal distance - 67.38mm
- Can achieve telephoto at the field angle of 0°59', hence is suitable for long distance monitoring (when used on 1/2" cameras)
- Features a visible or IR cut filter switch mechanism
- Equipped with a C-type lens mount (metal)
- Compatible with 1", 2/3", 1/2", and 1/3" cameras
- Allows motor drive operation of zoom and focus
- Features auto (video type) iris
In the Box Fujinon C22X17R3J-SSF Telephoto Zoom Lens (17-374mm, 22x Zoom) Iris Control Cable Connector (5-pin) 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon C22X17R3J-SSF Telephoto Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon C22x17R3J-SSF Specs | Imager Size | 1" | | Mount | C | | Focal Length | 17-374 mm (22x) | | Iris Range | F2.3-T3000 (equivalent to F3000) | | Zoom Operation | Motor drive | | Focus Operation | Motor drive | | Iris Operation | Auto Video | | Day/Night | Yes | | Angle of View | 1" Wide: 41°16' x 31°32'
1" Tele: 1°58' x 1°28' 2/3" Wide: 29°01' x 21°58'
2/3" Tele: 1°21 x 1°01'1/2" Wide: 21°19' x 16°04'
1/2" Tele: 0°59' x 0°44' 1/3" Wide: 16°04' x 12°05'
1/3" Tele: 0°44' x 0°33' | | Minimum Object Distance (M.O.D.) | ∞ ~ 3m | | Object Dimensions at M.O.D. | (HxV in mm)
1" Wide: 2178 x 1633
1" Tele: 99 x 74 2/3" Wide: 1497 x 1123
2/3" Tele: 68 x 511/2" Wide: 1089 x 817
1/2" Tele: 50 x 37 1/3" Wide: 817 x 613
1/3" Tele: 37 x 28 | | Back Focus | 67.38 mm (in air) | | Filter Size | M82 x 0.75 mm | | Dimensions (WxHxD) | 4.5 x 5.3 x 9.5" (114 x 134 x 241 mm) | | Weight | 6 lbs (2.7kg) |
