User Manual for Fujinon C55X13.5P-EP1B Telephoto Zoom CCTV Camera Lens with 2x Extender Click to enlarge the picture
Contents of the user manual for the Fujinon C55X13.5P-EP1B Telephoto Zoom CCTV Camera
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon C55X13.5P-EP1B Telephoto Zoom CCTV Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|

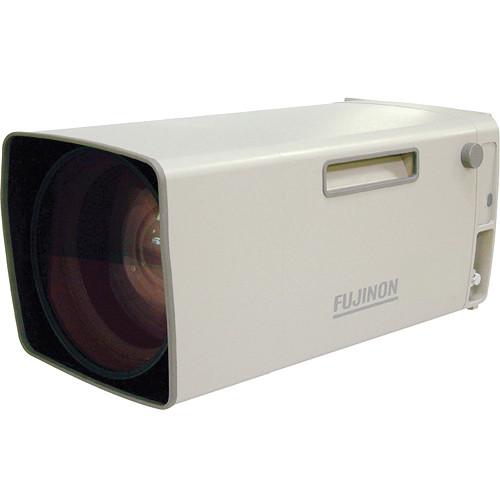

Product description The Fujinon C55X13.5P-EP1B Telephoto Zoom CCTV Camera Lens with 2x Extender achieves super-telephoto at a field angle of 0.25°, and is best suited for long-distance monitoring such as gulf monitoring (when used on 1/2" cameras). In addition to the brightness of F2.1, it has a coating to reproduce a good quality image over the entire visible light range. It is compatible with a wide range of cameras (1", 2/3", and 1/2"). The built-in ND filter of T1500 supports high-sensitivity cameras, and this lens can be equipped with a stabilize adapter. In the Box Fujinon C55X13.5P-EP1B Telephoto Zoom CCTV Camera Lens with 2x Extender Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon C55X13.5P-EP1B Telephoto Zoom CCTV Camera Lens with 2x Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon C55x13.5P-EP1B Specs | Mount Type | C | | Focal Length | 1x: 13.5 to 750 mm (55x)
2x: 27 to 1500 mm (55x) | | Focus | Servo control | | Iris Range | 1x: F2.1 - T1500 (equivalent to F1500)
2x: F4.2 - T3000 (equivalent to F3000) | | Iris | Auto (video type) or servo control | | Zoom | Servo control | | Back Focal Distance | 25.01 mm (in air) | | Exit Pupil Position | From Image Plane: 1x: -245 mm
2x: -141 mm | | Object Dimensions at M.O.D. | 1":
1x:
Wide: 81.69 x 61.25" (2075 × 1556 mm)
Tele: 1.49 x 1.10" (38 × 28 mm)
2x:
Wide: 40.86 x 30.62" (1038 × 778 mm)
Tele: 0.74 x 0.55" (19 × 14 mm)
2/3":
1x:
Wide: 56.18 x 42.12" (1427 × 1070 mm)
Tele: 1.02 x 0.74" (26 × 19 mm)
2x:
Wide: 6.81 x 21.06" (713 × 535 mm)
Tele: 0.51 x 0.39" (13 × 10 mm)
1/2":
1x:
Wide: 40.86 x 30.62" (1038 × 778 mm)
Tele: 0.74 x 0.55" (19 × 14 mm)
2x:
Wide: 20.43 x 15.31" (519 × 389 mm)
Tele: 0.35 x 0.27" (9 × 7 mm) | | Angular Field of View | 1":
1x:
Wide: 50°44’ × 39°09’
Tele: 0°59’ × 0°44’
2x:
Wide: 26°40’ × 20°10’
Tele: 0°29’ × 0°22’
2/3":
1x:
Wide: 36°06’ × 27°28’
Tele: 0°40’ × 0°30’
2x:
Wide: 18°31’ × 13°56’
Tele: 0°20’ × 0°15’
1/2":
1x:
Wide: 26°40’ × 20°10’
Tele: 0°29’ × 0°22’
2x:
Wide: 13°31’ × 10°10’
Tele: 0°15’ × 0°11’ | | Focusing Range | From Front of the Lens: ∞ to 7.87' (2.4 m) | | Extender | 2x | | | | Control Signal | Zoom:
Tele: 2.5 V
Wide: 7.5 V
Focus:
Near: 2.5 V
Far: 7.5 V
Iris:
Auto/Video (1 Vpp)/ Remote/Open: 7 V, Close: 2 V
Extender:
1x: ∞
2x: + V | | Maximum Power Consumption | Zoom: 670 mA
Focus: 670 mA
Iris: 100 mA
Extender: 200 mA | | Operating Time | Zoom: 1 s (maximum)
Focus: 1 s (maximum)
Iris: 1 s (maximum)
Extender: 1 s (maximum) | | Dimensions (H x W x D) | 10.03 x 10.78 x 22.55" (255 x 274 x 573 mm) | | Weight | 44.09 lb (20 kg) |
