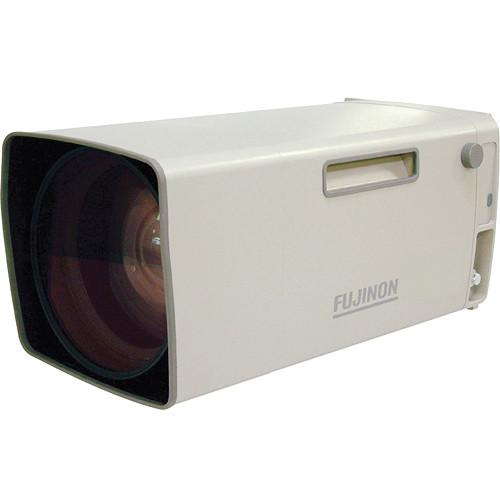

Product description The Fujinon C55X13.5R2Q-EP1B Telephoto Zoom CCTV Camera Lens with 2x Extender achieves super-telephoto at a field angle of 0.25°, and is best suited for long-distance monitoring such as gulf monitoring (when used on 1/2" cameras). In addition to the brightness of F2.1, it has a coating to reproduce a good quality image over the entire visible light range. It is compatible with a wide range of cameras (1", 2/3", and 1/2"). The built-in ND filter of T1500 supports high-sensitivity cameras, and this lens can be equipped with a stabilize adapter. In the Box Fujinon C55X13.5R2Q-EP1B Telephoto Zoom CCTV Camera Lens with 2x Extender Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon C55X13.5R2Q-EP1B Telephoto Zoom CCTV Camera Lens with 2x Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon C55x13.5R2Q-EP1B Specs | Mount Type | C | | Focal Length | 1x: 13.5 to 750 mm (55x)
2x: 27 to 1500 mm (55x) | | Focus | Servo control | | Iris Range | 1x: F2.1 - T1500 (equivalent to F1500)
2x: F4.2 - T3000 (equivalent to F3000) | | Iris | Auto (video type) or servo control | | Zoom | Servo control | | Back Focal Distance | 25.01 mm (in air) | | Exit Pupil Position | From Image Plane: 1x: -245 mm
2x: -141 mm | | Object Dimensions at M.O.D. | 1":
1x:
Wide: 81.69 x 61.25" (2075 × 1556 mm)
Tele: 1.49 x 1.10" (38 × 28 mm)
2x:
Wide: 40.86 x 30.62" (1038 × 778 mm)
Tele: 0.74 x 0.55" (19 × 14 mm)
2/3":
1x:
Wide: 56.18 x 42.12" (1427 × 1070 mm)
Tele: 1.02 x 0.74" (26 × 19 mm)
2x:
Wide: 6.81 x 21.06" (713 × 535 mm)
Tele: 0.51 x 0.39" (13 × 10 mm)
1/2":
1x:
Wide: 40.86 x 30.62" (1038 × 778 mm)
Tele: 0.74 x 0.55" (19 × 14 mm)
2x:
Wide: 20.43 x 15.31" (519 × 389 mm)
Tele: 0.35 x 0.27" (9 × 7 mm) | | Angular Field of View | 1":
1x:
Wide: 50°44’ × 39°09’
Tele: 0°59’ × 0°44’
2x:
Wide: 26°40’ × 20°10’
Tele: 0°29’ × 0°22’
2/3":
1x:
Wide: 36°06’ × 27°28’
Tele: 0°40’ × 0°30’
2x:
Wide: 18°31’ × 13°56’
Tele: 0°20’ × 0°15’
1/2":
1x:
Wide: 26°40’ × 20°10’
Tele: 0°29’ × 0°22’
2x:
Wide: 13°31’ × 10°10’
Tele: 0°15’ × 0°11’ | | Focusing Range | From Front of the Lens: ∞ to 7.87' (2.4 m) | | Extender | 2x | | | | Control Signal | Zoom:
Tele: 2.5 V
Wide: 7.5 V
Focus:
Near: 2.5 V
Far: 7.5 V
Iris:
Auto/Video (1 Vpp)/ Remote/Open: 7 V, Close: 2 V
Extender:
1x: ∞
2x: + V | | Maximum Power Consumption | Zoom: 670 mA
Focus: 670 mA
Iris: 100 mA
Extender: 220 mA | | Operating Time | Zoom: 1 s (maximum)
Focus: 1 s (maximum)
Iris: 1 s (maximum)
Extender: 1 s (maximum) | | Dimensions (H x W x D) | 10.03 x 10.78 x 22.55" (255 x 274 x 573 mm) | | Weight | 44.09 lb (20 kg) |
