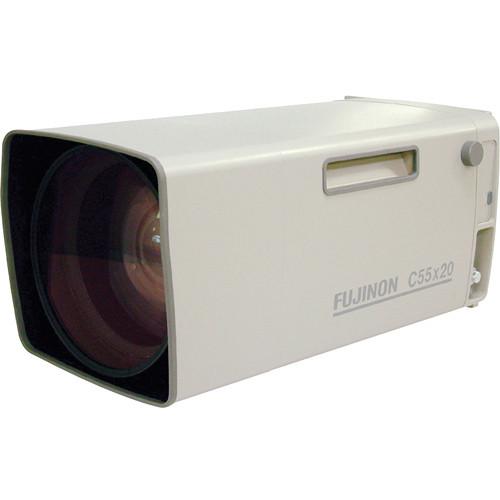

Product description The Fujinon C55X20P-EP1B Telephoto Zoom Lens (55x) can achieve telephoto at the field angle of 0°10', making it suitable for long distance monitoring (when used on 1/2" cameras). In addition to a 55x zoom, the lens with a 2x extender has a focal length that ranges from 40-2200mm, and at 1x, the aperture is f/3 and at 2x, it is f/6. The lens coating reduces reflections from the lens' surface and helps maintain image quality over various lighting conditions - from visible light to near-infrared light. Equipped with a C-type lens mount (metal), the telephoto lens is compatible with 1", 2/3", and 1/2" cameras. It allows servo control operation of zoom and focus, and features auto (video type) or servo control iris and a built-in ND filter of T1500 to support high sensitivity cameras. The Telephoto Zoom Lens can be equipped with a stabilize adaptor. - Focal length of 40-2200 mm
- Aperture - f/3 (1x) / f/6 (2x)
- Back focal distance - 28.04mm
- Can achieve telephoto at the field angle of 0°10', hence is suitable for long distance monitoring (when used on 1/2" cameras)
- Lens coating reduces reflections from the lens' surface and helps maintain image quality over various lighting conditions - from visible light to near-infrared light
- Features a built-in ND filter of T1500 to support high sensitivity cameras
- Equipped with a C-type lens mount (metal)
- Can be equipped with a stabilize adaptor
- Compatible with 1", 2/3", and 1/2" cameras
- Allows servo control operation of zoom and focus
- Features auto (video type) or servo control iris
In the Box Fujinon C55X20P-EP1B Telephoto Zoom Lens (55x) 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon C55X20P-EP1B Telephoto Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon C55x20P-EP1B Specs | Imager Size | 1" (also 2/3", 1/2") | | Mount | C | | Focal Length | 1x: 20-1100 mm (55x)
2x: 40-2200 mm (55x) | | Iris Range | 1x: F3.0-T1500 (equivalent to F1500)
2x: F6.0-T3000 (equivalent to F3000) | | Zoom Operation | Servo control | | Focus Operation | Servo control | | Iris Operation | Auto (video) or servo control | | Angle of View | (horizontal x vertical) 1x1" Wide: 35°29' x 26°59'
1" Tele: 0°40' x 0°30' 2/3" Wide: 24°49' x 18°44'
2/3" Tele: 0°27' x 0°21'1/2" Wide: 18°10' x 13°41'
1/2" Tele: 0°20' x 0°15' 2x1" Wide: 18°10' x 13°41'
1" Tele: 0°20' x 0°15' 2/3" Wide: 12°25' x 9°22'
2/3" Tele: 0°44 x 0°10'1/2" Wide: 9°05' x 6°52'
1/2" Tele: 0°10' x 0°08' | | Minimum Object Distance (M.O.D.) | ∞ ~ 2.4 (1x and 2x) | | Object Dimensions at M.O.D. | (HxV in mm)
1x
1" Wide: 1400 x 1051
1" Tele: 25 x 19 2/3" Wide: 963 x 23
2/3" Tele: 17 x 131/2" Wide: 700 x 525
1/2" Tele: 13 x 10 2x1" Wide: 700 x 525
1" Tele: 13 x 10 2/3" Wide: 482 x 361
2/3" Tele: 9 x 71/2" Wide: 350 x 263
1/2" Tele: 6 x 5 | | Back Focus | 28.04 mm (in air) | | Filter Size | N/A | | Dimensions (WxHxD) | 10.8 x 10 x 22.6" (274 x 255 x 573 mm) | | Weight | 46.3 lbs (21kg) |
