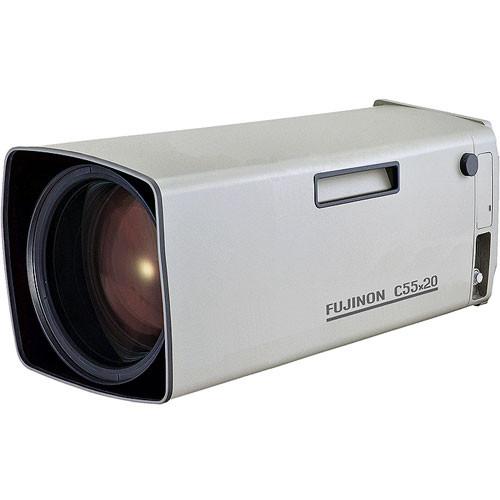

User Manual for Fujinon C55x20R3J-ESF 1" C Mount 55x F3.0 Motorized Servo Zoom Lens with Manual Override Click to enlarge the picture
Contents of the user manual for the Fujinon C55x20R3J-ESF 1" C Mount 55x
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon C55x20R3J-ESF 1" C Mount 55x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon C55x20R3J-ESF is an industrial grade CCTV lens equipped with a high powered 55x motorized zoom assembly. This level of magnification makes it suitable for use in border patrol, harbor surveillance, drug enforcement and similar long range viewing applications. - Optimized for Day/Night Cameras
- The optics on this lens are designed in such a way so as to allow light in the near infrared spectrum to pass through. This makes it suitable for use with Day/Night CCTV cameras that use an IR cut filter to switch from color during the day to an ultra light sensitive B/W mode when light levels fall.
- Built-In 2x Extender
- The magnification power on this lens can be instantly doubled from 20-1100mm to 40-2200mm using the built-in 2x extender.
In the Box Fujinon C55x20R3J-ESF 1" C Mount 55x F3.0 Motorized Servo Zoom Lens with Manual Override Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon C55x20R3J-ESF 1" C Mount 55x F3.0 Motorized Servo Zoom Lens with Manual Override in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon C55X20R3J-ESF Specs | Imager Size | 1" | | Mount Type | C Mount | | Focal Length | 20-1100mm
40-2200mm with 2x extender
(remote control by servo) | | Aperture | F3.0-T1500 | | Iris Operation | Auto or remote control by servo | | Focus Operation | Remote control by servo | | Angle of View | Diagonal: 43° 36' / 0° 50' (Wide/Tele)
Diagonal with 2x extender: 22° 37' / 0° 25' (Wide/Tele)
Horizontal: 35° 29' / 0° 40' (Wide/Tele)
Horizontal with 2x Extender: 18° 10' / 0° 20' (Wide/Tele)
Vertical: 26° 59' / 0° 30' (Wide/Tele)
Vertical with 2x Extender: 13° 41' / 0° 15' (Wide/Tele) | | Minimum Object Distance (M.O.D.) | Infinity to 2.4 m | | Filter Size | N/A | | Power Requirements | 12VDC | | Power Consumption | 40mA | | Operating Temperature | 14 - 122°F (-10 ~ +50°C) | | Dimensions (WxHxD) | 10.8 x 10 x 27" (274 x 253 x 675mm) | | Weight | 46.3 lbs (21kg) |
