Fujinon CS Mount 2.7 to 13.5mm

Search your instruction manual in PDF to download

User Manual for Fujinon CS Mount 2.7 to 13.5mm Varifocal Manual Lens

Click to enlarge the picture
Fujinon CS Mount 2.7 to 13.5mm Varifocal Manual Lens Contents of the user manual for the Fujinon CS Mount 2.7 to 13.5mm
  • Product category: Lenses Fujinon
  • Brand: Fujinon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Fujinon Lenses

User manual for the Fujinon CS Mount 2.7 to 13.5mm contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Fujinon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!



Product description

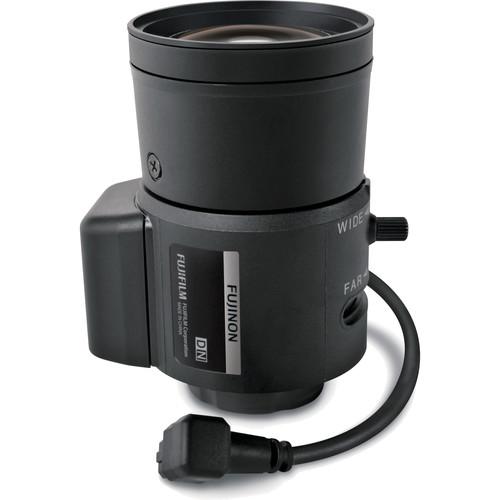

Fujinon's CS Mount 2.7 to 13.5mm Varifocal Manual Lens is a wide-angle lens that fits a CS mounted color, B/W or day/night surveillance camera with either a 1/3" or 1/4" image sensor. Its aspherical glass elements virtually eliminate spherical aberrations to remove distortion at the edges of the lens, and correct for astigmatism to allow for tack-sharp focusing. Both the focal length and focus are manually adjustable, and a built-in neutral-density filter makes this lens ideal for use with high-sensitivity cameras.
    Optical Performance
    • 2.7 to 13.5mm f/1.3 varifocal, 5x zoom ratio
    • Compatible with 1/3" and 1/4" image sensors
    • Aspherical lens corrects for spherical aberrations and astigmatism for distortion-free views and tack-sharp focus capabilities
    • Wide angle of view: 99°42' with a 1/3" sensor, 74°17' with a 1/4" sensor
    • Built-in T360 neutral density filter
    Use and Handling
    • Manual zoom adjustment
    • Manual focus adjustment
    • Focus range from 12' to infinity
    Construction
    • Metal CS Mount
    • RoHS compliant
In the Box Fujinon CS Mount 2.7 to 13.5mm Varifocal Manual Lens
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Fujinon CS Mount 2.7 to 13.5mm Varifocal Manual Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Fujinon YV5X2.7R4B-SA2 Specs

    Imager Size 1/3" or 1/4", compatible
    Mount Type CS
    Focal Length 2.7 to 13.5mm
    Aperture f/1.3
    Iris Operation Manual
    Focus Operation Manual
    Zoom Operation Manual
    Angle of View 1/3" Sensor:
    Wide: 99°42' x 74°17'
    Tele: 20°37' x 15°30'1/4" Sensor:
    Wide: 74°17' x 55°26'
    Tele: 15°0' x 11°38'
    Minimum Object Distance (M.O.D.) 11.8" (30 cm)
    Filter Size None
    Dimensions Camera: 2.3 x 2.2 x 1.0" (5.9 x 5.5 x 2.7 mm)
    Weight 2.5 oz (70 g)
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 3.8 x 2.8 x 2.7"

    Rating

    70% users recommend this product to others. And what about you?
