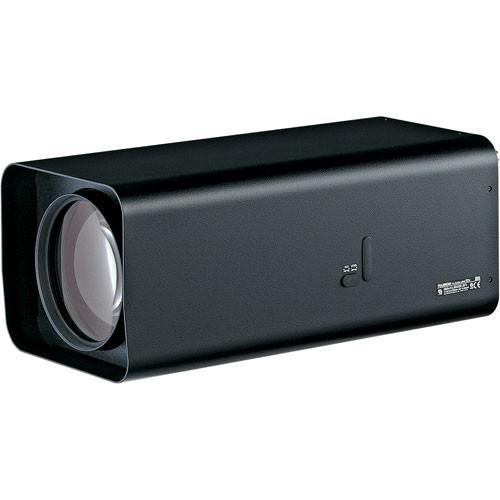

User Manual for Fujinon D60x12.5R3DE-V41 12.5-750mm f 3.8 Motorized Zoom Lens Click to enlarge the picture
Contents of the user manual for the Fujinon D60x12.5R3DE-V41 12.5-750mm f 3.8 Motorized
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon D60x12.5R3DE-V41 12.5-750mm f 3.8 Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon D60x12.5R3DE-V41 is a motorized zoom lens that can go from a 12.5mm wide focal length to a 750mm telephoto focal length using a compatible CCTV lens controller. This range can be doubled by engaging its built in 2x extender, effectively allowing the lens to view objects up to 3km away. As such, this lens is ideal for use by the coast guard and similar long-range, high security applications requiring the ability to view a broad area in high resolution as well as quickly zoom in for a closer look when required. - Superb light conductivity (F3.8) for uninterrupted Day/Night operation
- Compact and lightweight design for integration with existing compact surveillance equipment
- Built-in 2x extender allows clear viewing of objects up to 3km away
- Versatile operation with auto and manual iris adjustments
In the Box Fujinon D60x12.5R3DE-V41 12.5-750mm f/3.8 Motorized Zoom Lens (60x) Iris Control Cable 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon D60x12.5R3DE-V41 12.5-750mm f 3.8 Motorized Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon D60X12.5R3DE-V41 Specs | Imager Size | 1/2", 2/3", 1/4" | | Mount Type | C Mount | | Focal Length | 12.5-750mm (60x)
25-1500mm with 2x extender | | Aperture | F3.8-T3000 | | Iris Operation | Auto Video with manual override | | Focus Operation | Motor Drive | | Angle of View | (without 2x extender)
1/2": 28° 43' x 21° 44' Wide / 0° 29' x 0° 22' Tele
1/3": 21° 44' x 16° 23' Wide / 0° 22' x 0° 17' Tele
1/4": 16° 23' x 12° 20' Wide / 0° 17' x 0° 08' Tele
(with 2x extender)
1/2": 14° 35' x 10° 58' Wide / 0° 15' x 0° 11' Tele
1/3": 10° 58' x 8° 14' Wide / 0° 11' x 0° 08' Tele
1/4": 8° 14' x 6° 11' Wide / 0° 08' x 0° 06' Tele | | Minimum Object Distance (M.O.D.) | Infinity to 5m | | Filter Size | M107x1 | | Dimensions (WxHxD) | 6.1 x 5.4 x 13.9" (154 x 137 x 354mm) | | Weight | 11.5 lbs (5.2kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 18.0 x 10.4 x 10.2" |
