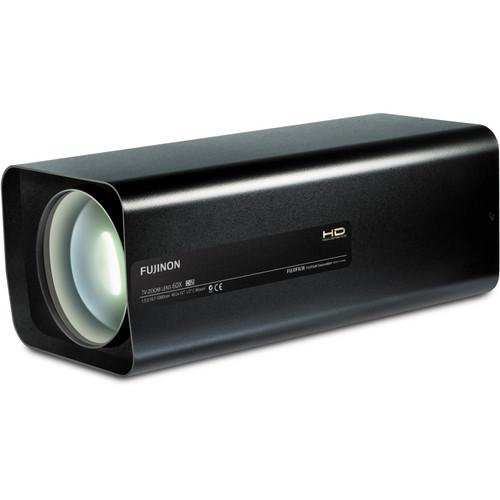

User Manual for Fujinon D60X16.7SR4DE-ZP1A 2 Megapixel Zoom Lens Click to enlarge the picture
Contents of the user manual for the Fujinon D60X16.7SR4DE-ZP1A 2 Megapixel Zoom Lens
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon D60X16.7SR4DE-ZP1A 2 Megapixel Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon D60X16.7SR4DE-ZP1A 2 Megapixel Zoom Lens offers F3.5 brightness and 60x zoom (focal length of 2000mm when used with an extender), and is suited for long range surveillance, including harbor surveillance. The compact and lightweight design allows establishment of compact remote surveillance systems. Thanks its day/night capability for high-quality imaging and its 2x extender, the lens can see the actions of a person at a distance of 4 km. Multiple power sources are supported, and can use existing control systems. Iris Override function allows manual iris adjustment. The 2 Megapixel zoom lens combines a large optical zoom with high resolution. In addition to standard zooms with focal lengths of up to 100mm, Fujinons’ lens range also comprises of zoom factors up to 60x and focal lengths of up to 2000mm. These large zoom factors and long focal lengths enable the rapid and clear recognition of each small detail even at long distances. Thanks to the high megapixel resolution these lenses give high-quality pictures in HD standard when used in combination with a Megapixel camera. Dark images are the weak point in all surveillance systems. For that reason Fujinon's zoom lenses provide security personnel with bright images at any corner, even in poorly lit locations or in dark areas. Depending on the intensity of the ambient light, the iris is opened or closed automatically so that the exposure time remains constant. In addition, the patented broadband coating on the lenses ensures fast lenses with excellent transmission – even in the near-infrared range. Thanks to their high zoom factors the tele-zoom lenses are especially suitable for surveillance over longer distances: At airports to monitor the machines and the environment In harbors to monitor freight and persons At dikes or dams to detect hazards more quickly On the large-scale company premises to monitor buildings, industrial plant and persons - Telephoto long focal length
In the Box Fujinon D60X16.7SR4DE-ZP1A 2 Megapixel Zoom Lens Iris Control Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon D60X16.7SR4DE-ZP1A 2 Megapixel Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon D60x16.7SR4DE-ZP1A Specs | Mount | C | | Focal Length | 1x : 16.7 to 1000 mm
2x : 33.4 to 2000 mm | | Focus | Motor Drive | | Iris Range | 1x : F3.5 to close
2x : F7.0 to close | | Iris | Auto (Video Type), or Remote | | Zoom | Motor Drive | | Object Dimensions at M.O.D. | 1/2"
1x : 1942 × 1112 mm (wide), 2x : 1017 × 575 mm (wide)
1x : 35 × 20 mm (tele), 2x : 18 × 10 mm (tele)
1/3"
1x : 1474 × 836 mm (wide), 2x : 765 × 431 mm (wide)
1x : 26 × 15 mm (tele), 2x : 13 × 8 mm (tele)
1/4"
1x : 1112 × 628 mm (wide), 2x : 575 × 324 mm (wide)
1x : 20 × 11 mm (tele), 2x : 10 × 6 mm (tele) | | Angular Field of View | 1/2"
1x : 22°41 × 13°06' (wide), 2x : 11°59 × 6°48' (wide)
1x : 0°25 × 0°14' (tele), 2x : 0°13 × 0°07' (tele)
1/3"
1x : 17°18 × 9°52' (wide), 2x : 9°02 × 5°06' (wide)
1x : 0°19 × 0°10' (tele), 2x : 0°10 × 0°05' (tele)
1/4"
1x : 13°06 × 7°25' (wide), 2x : 6°48 × 3°50' (wide)
1x : 0°14 × 0°08' (tele), 2x : 0°07 × 0°04' (tele) | | Focusing Range | ∞ to 5 m | | Extender | M112 × 1 mm, 2x With metal mount
When power is turned off, iris will automatically close | | | | Package Weight | 17.05 lb | | Box Dimensions (LxWxH) | 19.1 x 10.3 x 10.1" |
