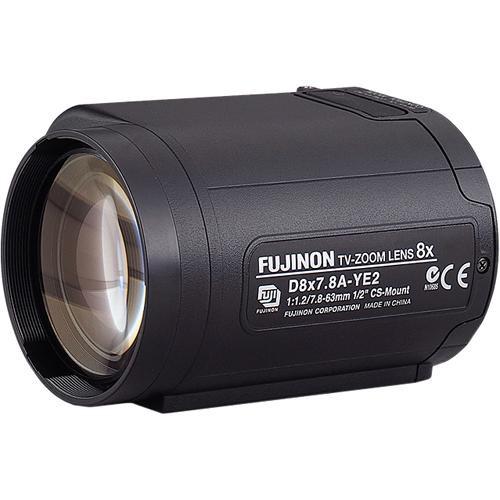

Product description The Fujinon D8X7.8A-SE2 is a motorized zoom lens for CCTV security cameras. Through the use of a compatible lens controller device, the focal length on this lens can be actively changed from a wide view of 7.8mm to a telephoto view of 63mm, which translates into an 8x image magnification. - Wide aperture of F1.2 provides optimal performance under low light intensity
- Compact and lightweight design for easy storage inside small housings
- Built-in ND filter of T400 offers support for high sensitivity cameras
- Multi power compatibility (6V, ±6V, 12V, ±12V) for use with existing control systems
In the Box Fujinon D8X7.8A-SE2 1/2" CS Mount 7.8-63mm (8x) F1.2 Motorized Zoom Lens Iris Control Cable Conversion Cable (6-pin to 4-pin) Connection Connector (4-pin to 6-pin) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon D8X7.8A-SE2 1 2" CS Mount 7.8-63mm F1.2 Motorized Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon D8X7.8A-SE2 Specs | Imager Size | 1/2", 2/3", 1/4" | | Mount Type | CS Mount | | Focal Length | 7.8-63mm (8x) | | Aperture | F1.2-T400 (equivalent to F400) | | Iris Operation | Auto DC | | Focus Operation | Motor Drive | | Angle of View | (horizontal x vertical)
1/2": 44° 37' x 34° 12' Wide / 5° 49' x 4° 22' Tele
1/3": 34° 12' x 25° 59' Wide / 4° 22' x 3° 16' Tele
1/4": 25° 59' x 19° 38' Wide / 3° 16' x 2° 27' Tele | | Minimum Object Distance (M.O.D.) | ∞ ~ 51.2 m | | Filter Size | M55 x 0.75 | | Diameter and Length | 2.3 x 3.8" (58 x 96mm) | | Weight | 0.9 lbs (400g) |
