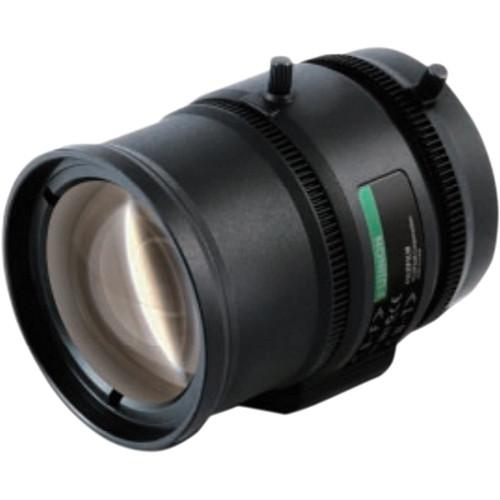

User Manual for Fujinon DV3.8x4SR4A-SA1 4-15.2mm Day Night 3.8x Optical Zoom Varifocal Lens with 3.9" Cable Click to enlarge the picture
Contents of the user manual for the Fujinon DV3.8x4SR4A-SA1 4-15.2mm Day Night 3.8x
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon DV3.8x4SR4A-SA1 4-15.2mm Day Night 3.8x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The DV3.8x4SR4A-SA1 4-15.2mm Day/Night 3.8x Optical Zoom Varifocal Lens from Fujinon is well suited for high-quality image monitoring with optical performance support up to 3MP. The special optic glass incorporated is suitable for color, B&W, and day/night cameras. This high-accuracy aspherical lens is aimed to enhance optical performance, and is made of low-dispersion, high-refractive index glass. The built-in ND filter caters well to high-sensitivity cameras, giving no change in hue of color rendition. In the Box Fujinon DV3.8x4SR4A-SA1 4-15.2mm Day/Night 3.8x Optical Zoom Varifocal Lens with 3.9" Cable 3.9" Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon DV3.8x4SR4A-SA1 4-15.2mm Day Night 3.8x Optical Zoom Varifocal Lens with 3.9" Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon DV3.8x4SR4A-SA1 Specs | Mount | C | | Focal Length | 4 to 15.2mm (3.8x) | | Focus | Manual | | Iris Range | f/1.5 to T360 | | Iris | Auto (DC type) When power is turned off, iris will automatically close. | | Zoom | Manual | | Back Focal Distance | 11.01mm in air | | Exit Pupil Position | 180 mm from image plane | | Object Dimensions at M.O.D. | 1/1.8"
Wide: 801 × 502 mm, Tele: 153 × 114 mm
1/2"
Wide: 662 × 434 mm, Tele: 138 × 103 mm
1/3"
Wide: 434 × 305 mm, Tele: 103 × 77 mm
1/4"
Wide: 305 × 221 mm, Tele: 77 × 57 mm | | Object Dimensions at M.O.D. (16:9) | 1/1.8"
Wide: 957 × 384 mm, Tele: 168 × 93 mm
1/2"
Wide: 770 × 338 mm, Tele: 150 × 84 mm
1/3"
Wide: 488 × 243 mm, Tele: 112 × 63 mm
1/4"
Wide: 338 × 178 mm, Tele: 84 × 47 mm | | Angular Field of View | 1/1.8"
Wide: 103°27' × 77°03', Tele: 27°23' × 20°34'
1/2"
Wide: 92°42' × 69°08', Tele: 24°38' × 18°29'
1/3"
Wide: 69°08' × 51°40', Tele: 18°29' × 13°53'
1/4"
Wide: 51°40' × 38°41', Tele: 13°53' × 10°25' | | Angular Field of View (16:9) | 1/1.8"
Wide: 113°02' × 62°46', Tele: 29°48' × 16°49'
1/2"
Wide: 101°14' × 56°21', Tele: 26°49' × 15°07'
1/3"
Wide: 75°25' × 42°09', Tele: 20°08' × 11°21'
1/4"
Wide: 56°21' × 31°34', Tele: 15°07' × 8°31' | | Focusing Range | Infinity to 0.3 m | | Coil Resistance | Drive Coil: 190 Ω
Damping Coil: 500 Ω | | Current Consumption | 23 mA (Maximum) at 4 VDC | | Cable Length | 3.9" (100 mm) | | Weight | 4.23 oz (120 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 3.9 x 2.7 x 2.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
