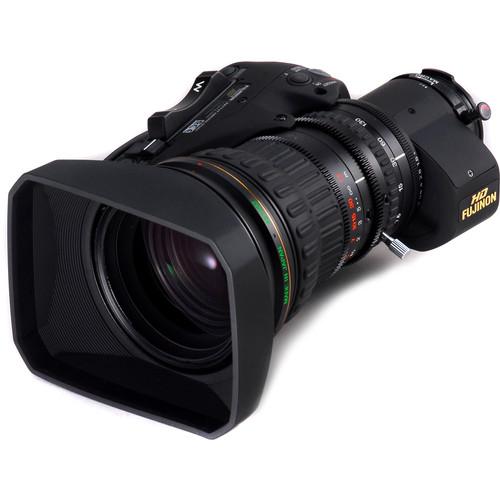

User Manual for Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm Lens for 1 2" Sensors Click to enlarge the picture
Contents of the user manual for the Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm Lens for 1/2" Sensors, designed for news and production, comes with 17× zoom range and 2× extender to support 1/2″ format camera. DigiPower servo control system, a 32-bit RISC processor, a CPU in each servo demand, optical encoders, high-speed serial communication devices, and a digital control circuit ensure 13-bit accuracy in zoom and focus control.
Additionally, an RS232 connector in the ENG Style HD Lens connects the lens to a PC or other control device for external control. This external control allows you to manage the lens functions with a high degree of accuracy and reliability.
The 17x HD Lens features Quick Zoom with a speed of 0.7 seconds ‘end to end’. Providing a rapid zoom movement to the telephoto position, Quick Zoom allows you to check focus with the simple push of a button. - ENG style lens designed for news and production
- Comes with 2× extender, 17× zoom range
- For cameras with 1/2" format sensors
- DigiPower servo control system ensures extremely precise and steady zoom movement
- A 32-bit RISC processor, a CPU in each servo demand, optical encoders, high-speed serial communication devices, and a digital control circuit ensure 13-bit accuracy in zoom and focus control as well as several other new functions
- RS232 connector offers external control by connecting the lens to a PC or other control device
- Features Innerfocus technology and Zoom limit
- Quick Zoom
- Speed of 0.7 seconds end to end
Provides a rapid zoom movement to the telephoto position
Allows you to check focus with the simple push of a button
Can be performed remotely from the ERD-T22 and ERD-10A-D01 (Optional) - Focused Intelligent Network Diagnosis System
- Helps in preventive maintenance and troubleshooting by evaluating various lenses' electronic and mechanical parameters
Attained data can be stored for future reference in determining the need for service or adjustments In the Box Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm Lens for 1/2" Sensors 1-Year Warranty for Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm Lens for 1 2" Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 5.5-94mm Specs | Camera Format | 1/2" | | Focal Length | 1× 5.5 - 94 mm
2 × 11.0 - 188 mm | | Zoom Range | 17X | | Extender | 2X | | Maximum Relative Aperture | 1 : 1.4 (5.5 - 77 mm)
1 : 1.7 (94 mm) | | Maximum Photometric Aperture T-No. | 1 : 1.5 | | M.O.D. from the Front of Lens | 0.6 m | | Object Dimensions at M.O.D. | 16 : 9 Aspect ratio 1 × 5.5 mm 741 × 417 mm
94 mm 41 × 23 mm
2 × 11.0 mm 371 × 208 mm
188 mm 21 × 12 mm | | Angular Field of View | 16 : 9 Aspect ratio 1 × 5.5 mm 64°43′ × 39°14′
94 mm 4°15′ × 2°23′
2 × 11.0 mm 35°09′ × 20°12′
188 mm 2°07′ × 1°12 | | Macro | Available | | Filter Thread | M82 × 0.75 | | Weight | 3.48 lb (1.58 kg) | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 13.0 x 9.3 x 7.8" |
