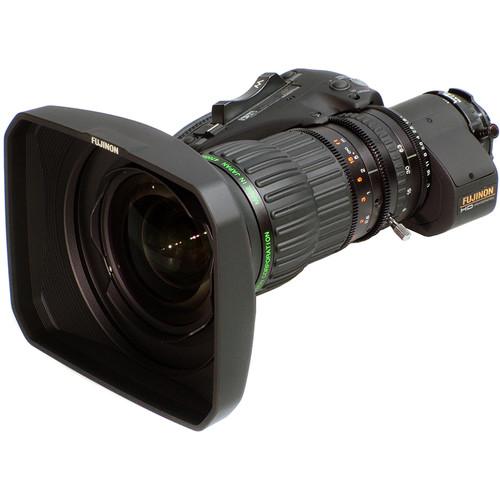

Product description The Fujinon HA14X4.5BERD-S HD ENG/EPF Super Wide Angle Lens supports 2/3" format cameras and offers features such as Quickzoom and Zoom Limit. Inner focusing allows the lens to move the inner lens group without altering its length, thereby ensuring stability while focusing. With the cruise zoom feature, you can set the speed to ensure a constant zoom speed.
For precise focusing, the lens with 3-mode fine focus feature shifts the sensitivity from the wide side to the telephoto side of the focus range. Zoom, focus, and iris can be controlled using a remote control via serial digital link for digital accuracy. The Digi Zoom Demand plugs into the lens remote connector located on the underside of the lens servo module and provides zoom speed control, one-shot preset, Quickzoom, focus or iris control, VTR, and return video.
In addition to a 14x zoom ratio and 2.2x extender, the HA14X4.5BERD-S lens offers Digi-power servo for production and other applications requiring high optical quality. The super wide-angle lens provides a focal length of 4.5-63mm (1x) / 9.9 - 138mm (2 x 0.2) and a maximum relative aperture of 1:1.8 (4.5-41mm) / 1:2.8 (63mm). With a minimum object distance of 0.3 m and a filter size of 127mm (P = 0.75), the lens offers a QuickFrame option and can provide macro/close-up images. - Supports 2/3" format cameras
- Offers features such as Quickzoom and Zoom Limit
- Inner focusing - allows the lens to move the inner lens group or groups without altering its length, thereby ensuring stability while focusing
- Cruise zoom - allows you to start zooming in or out and set the zoom speed to ensure a constant zoom speed
- 3-mode fine focus feature - shifts the sensitivity from the wide side to the telephoto side of the focus range for precise focusing
- Zoom, focus, and iris can be controlled using a remote control via serial digital link for digital accuracy
- Digi Zoom Demand plugs into the lens remote connector located on the underside of the lens servo module and provide zoom speed control, one-shot preset, Quickzoom, focus or iris control, VTR, and return video
- Contains servos for zoom and focus
- 14x zoom with 2.2x extender
- Offers Digi-power servo for production and other applications requiring high optical quality
- Focal length of 4.5 - 63 mm (1x) / 9.9-138 mm (2 x 0.2)
- Maximum relative aperture - 1:1.8(4.5-41 mm) / 1:2.8(63 mm)
- Minimum object distance - 0.3 m
- Object dimensions at MOD - 743 x 418 mm (1x) 4.5 mm / 51 x 29 mm (2x) 63 mm
- Angular field-of-view - 93°38' x 61°50' (4.5 mm) / 8°42' x 4°54' (63 mm)
- Filter size - 127 mm / P = 0.75
- Offers a QuickFrame option and can provide macro/close-up images
- Remote control of the 2x extender is possible with the optional model ECU-2A remote extender module
In the Box Fujinon HA14X4.5BERD-S HD ENG/EPF Super Wide Angle Lens 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HA14X4.5BERD-S HD ENG EPF Super Wide Angle Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 4.5-63mm Specs | Format | 2/3" | | Zoom Ratio | 14x | | Focal Length | (1x) 4.5-63 mm
(2x.2) 9.9-138 mm | | Extender | 2.2x | | Maximum Relative Aperture | 1:1.8(4.5-41 mm)
1:2.8(63 mm) | | M.O.D. from Front of Lens | 0.9' (0.3 m) | | Object Dimensions at M.O.D. | 743 x 418 mm @ (1x) 4.5 mm
51 x 29 mm @ (2x) 63 mm | | Angular Field of View | 93° 38' x 61° 50' @ 4.5 mm
8° 42' x 4° 54' @ 63 mm | | Filter Size | Ø127 mm, P=0.75 | | Macro | Yes | | Functions | Inner Focus
Quickzoom
Zoom Limit
Cruise Zoom | | Dimensions (Diam. x L) | (w/o hood)
Ø3.7 x 9.4" (Ø95 x 239 mm) | | Weight | (w/o hood)
4.6 lb / 2.08 kg (RM)
4.7 lb / 2.14 kg (RD) | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 14.5 x 9.8 x 8.8" |
