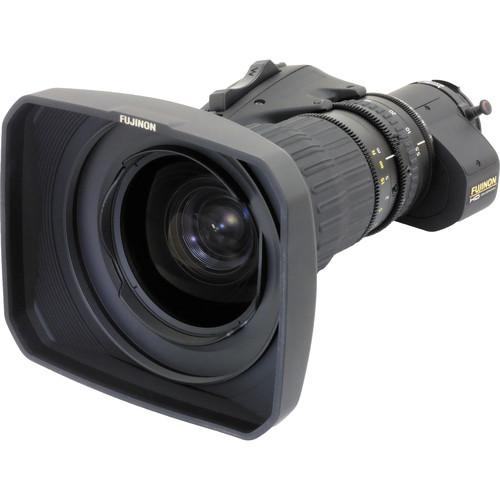

User Manual for Fujinon HA18X5.5BEZD-T5D Premier Series ENG EFP Lens with Digital Servo & 16-Bit Encoders with Quick Frame Click to enlarge the picture
Contents of the user manual for the Fujinon HA18X5.5BEZD-T5D Premier Series ENG EFP
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon HA18X5.5BEZD-T5D Premier Series ENG EFP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description With an 18x zoom range, the Fujinon HA18X5.5BERD-S6 Premier Series ENG/EFP Lens with Digital Servo & 16-Bit Encoders has the zoom range to cover sports from both up close and at a distance. With a close focus distance of about 16", you can get high energy close shots under a basket, or zoom in across to isolate a player in motion. Suitable for more than just sports, this lens gives you the focal length variety to work in a studio or get an intimate interview. It features 16-bit optical encoders for accurate servo zoom and focus, and the 18x zoom range can be augmented by engaging the built-in 2x extender.
The lens holds its f/1.8 maximum aperture from 5.5 to 62mm, ramping to f/2.9 at 100mm, with an optical design that losses only 0.1 stop of light at the wide end, and 0.2 stops of light from 100mm and longer, maintaining a close relationship between F-stop and T-Stop. Digital servo control of both zoom and focus is extremely responsive, and the lens incorporates an inner focus design that doesn't rotate the front of the lens when focusing. The Quick Zoom feature improves servo zooming speeds to as fast as 0.7 seconds from end to end. - Breakdown of Fujinon Lens Name
-
- HA - Premier series 2/3" HD Format
- 18x - 18x zoom ratio
- 5.5 - 5.5 mm focal length at the wide end
- B - Bayonet mount
- E - 2x extender
- ZD - Servo controlled focus and zoom with Quick Frame
- T5D - 16-bit encoders
- Quick Frame
- Quick Frame allows the operator to make manual zooms while the lens is in servo zoom mode. The mechanical clutch that allows this function reduces backlash in the zoom motor/lens combination, providing extremely accurate and repeatable zooms, which makes this lens well suited for robotic and virtual reality applications.
- Digi Power
- With a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, the digital control circuit provides 16-bit accuracy in zoom and focus controls.
- Digital Quick Zoom
- Quick Zoom means no more having to mark the lens after you've found the frame just to zoom in to check focus. Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom speed is improved to 0.7 seconds end to end.
- Inner Focus
- Focusing action only moves elements in the middle of the lens so the length of the lens does not change while focusing. This feature also enables the use of polarizing filters and matte boxes because the front element will not rotate.
- Digital Find System
- The Focused Intelligent Network Diagnosis system aids in preventive maintenance and troubleshooting by evaluating various lens' electronic and mechanical parameters
In the Box Fujinon HA18X5.5BEZD-T5D Premier Series ENG/EFP Lens with Digital Servo & 16-Bit Encoders with Quick Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HA18X5.5BEZD-T5D Premier Series ENG EFP Lens with Digital Servo & 16-Bit Encoders with Quick Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 5.5-100mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 5.5 to 100mm
With Extender: 11 to 200mm | | Built-In Extender | 2x | | Zoom Ratio | 18x | | Angle of View | 16:9
Wide: 82.17 x 52.22° (H x V)
Tele: 5.48 x 3.08° (H x V)
16:9 With 2x Extender
Wide: 47.1 x 27.53° (H x V)
Tele: 2.75 x 1.55° (H x V) | | Maximum Aperture | f/1.8 to 2.9 (T9 to 3.1) | | Filter Thread | M127 x 1 mm Filter attaches to the lens hood | | Minimum Focus Distance from Image Plane | 2.26' / 0.69 m | | Minimum Object Distance | 15.7" / 0.4 m | | Dimensions | 3.7 x 9.5" / 95.0 x 240.5 mm (
