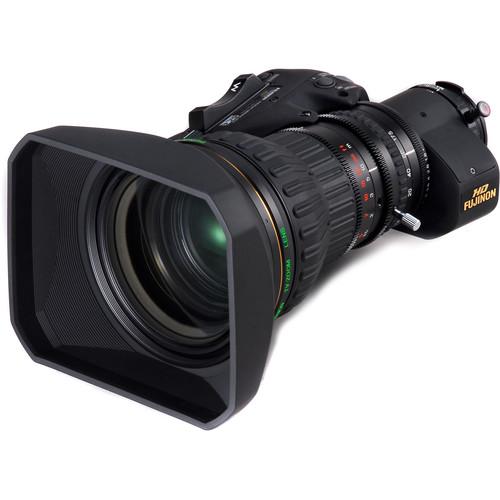

User Manual for Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom Click to enlarge the picture
Contents of the user manual for the Fujinon HA23x7.6BERM-M6 ENG Lens with Digital
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon HA23x7.6BERM-M6 ENG Lens with Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom is a 7.6-175mm lens, designed to provide 2/3" cameras with a wide to super telephoto angle-of-view. The lens has a 23x zoom ratio, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-175mm and stops down to f/2.65 at 175mm. The lens also includes a digital servo for zoom control and manual focus.
Internal focusing minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end of the lens to check focus. Releasing the button automatically returns the lens to the previously selected focal length. Zoom Limit purposefully constrains the focal range to only desirable focal lengths. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters. - 7.6-175mm wide to telephoto zoom lens for 2/3" cameras
- 23x zoom ratio and 2x extender
- Fast f/1.8 max aperture at 7.6-122mm and f/2.65 at 175mm
- Servo zoom and manual focus
- Innerfocus, QuickZoom and Zoom Limit
- Focused Intelligent Network Diagnosis
In the Box Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom 2-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 7.6-175mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 7.6 to 175mm | | Built-In Extender | 2x | | Zoom Ratio | 23x | | Angle of View | 16:9
Wide: 64.5 x 39.05° (H x V)
Tele: 3.13 x 1.77° (H x V) | | Maximum Aperture | f/1.8 to 2.65 (T9 to 2.8) | | Filter Thread | M95 x 1 mm
M107 x 1 mm Filter attaches to the lens hood | | Minimum Focus Distance from Image Plane | 3.51' / 1.07 m | | Minimum Object Distance | 2.62' / 0.8 m | | Dimensions | 3.9 x 8.8" / 100.0 x 223.6 mm (
