User Manual for Fujinon HA25x11ERDF18 2 3" 25x ENG HD Lens Remote Extender Click to enlarge the picture
Contents of the user manual for the Fujinon HA25x11ERDF18 2 3" 25x ENG
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon HA25x11ERDF18 2 3" 25x ENG contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|

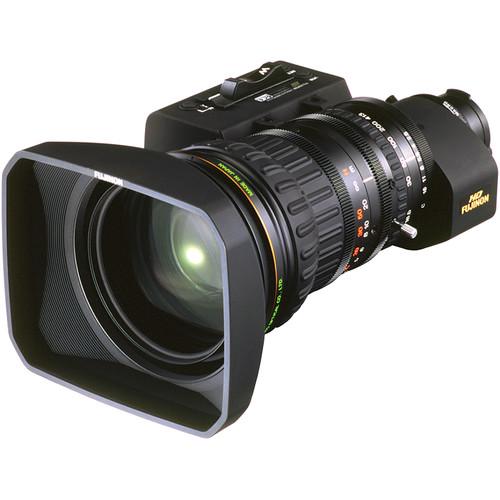

Product description The Fujinon HA25x11ERD-F18 is a 2/3" telephoto lens with 25x optical zoom. The lens comes with a 2x motor driven extender for instant telephoto. Known for their high build quality and precision optics, Fujinon lenses have become the industry standard for professional video applications all over the world.
This lens will not only resolve images for high-definition acquisition, it's also equipped with a wide array of extra features such as QuickZoom technology. Quickzoom makes it easy to verify focus by allowing instant telephoto zoom capability. - High Definition Ready
- Many high-definition cameras are hamstrung by insufficient optics. Electronic News Gathering (ENG) lenses traditionally have been built to accommodate standard-definition. This lens is designed specifically with high-definition in mind. The optics increase fidelity, making sure HD footage is crystal clear.
- Integral 2x Extender
- For instant close-up shots, the lens has a switch that inserts an element that doubles the focal length at any point in the zoom range. Instead of using the zoom function, the extender gives immediate close-up images.
- QuickZoom Technology
- The lens has an added zoom capability when using the QuickZoom switch. At the touch of a button, the lens can move to full telephoto in less than a second. This provides a no-hassle way of verifying focus.
- Internal Focus
- The lens element design fitted for the internal focus mechanism greatly reduces aberrations and image distortions. These advances contribute to more balanced imaging from center to edge throughout the aperture range.
In the Box Fujinon HA25x11ERDF18 2/3" 25x ENG HD Lens Remote Extender Lens Hood 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HA25x11ERDF18 2 3" 25x ENG HD Lens Remote Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 11.5-288mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 11.5 to 288mm
With Extender: 23 to 576mm | | Built-In Extender | 2x (Motorized) | | Zoom Ratio | 25x | | Angle of View | Wide: 45° (H)
Tele: 2° (H)
With 2x Extender
Wide: 23° (H)
Tele: 1° (H) | | Maximum Aperture | f/2 to 2.8 | | Focus Type | Servo | | Iris Type | Servo | | Macro | Yes | | Minimum Object Distance | 8.2' / 2.5 m | | Dimensions | 10.4 x 4.3 x 4.3" / 26.5 x 11.0 x 11.0 cm (L x W x H) | | Weight | 6.2 lb / 2.8 kg |
