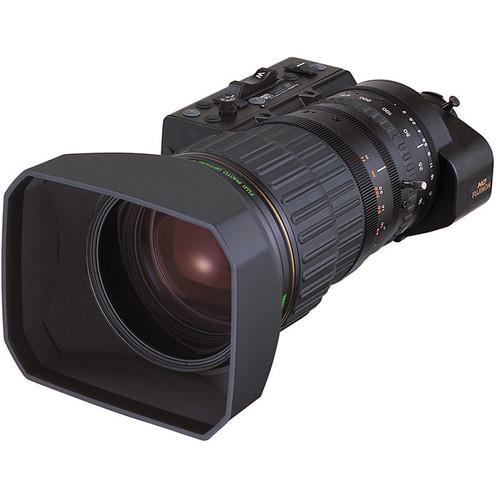

User Manual for Fujinon HA42X13.5BERD-S48 High-definition Telephoto Lens Click to enlarge the picture
Contents of the user manual for the Fujinon HA42X13.5BERD-S48 High-definition Telephoto Lens
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon HA42X13.5BERD-S48 High-definition Telephoto Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon HA42x13.5BERD-S48 High-definition Telephoto Lens (EFP) is lightweight (5.4 kg) and portable with features such as QuickZoom, zoom limiter, internal focusing, and auto-cruise zoom. Internal focusing allows the lens to move the inner lens group without altering its length, thereby ensuring stability while focusing. With the auto-cruise zoom feature, you can set the speed to ensure a constant zoom. In addition to a 42x zoom ratio and 2x extender, the HA42x13.5BERD-S48 lens offers Digi-power servo with digital servo remote control for full servo studio control, robotics, jibs, tower cams, teleconferencing, and other applications requiring high optical quality. The super wide-angle lens provides a focal length of 13.5-570mm (without an extender) / 27-1140mm (with an extender) and a maximum relative aperture of f/2.8 (13.5-307mm) / f/5.2 (570mm). With a minimum object distance of 2.8m and a M127 x 0.75 filter thread, the lens offers built-in OS-TECH. - Lightweight (5.4 kg) and portable telephoto lens with features such as QuickZoom, zoom limiter, internal focusing, and auto-cruise zoom
- Internal focusing - allows the lens to move the inner lens group or groups without altering its length, thereby ensuring stability while focusing
- Auto-cruise zoom - allows you to start zooming in or out and set the zoom speed to ensure a constant zoom
- 42x zoom with 2x extender
- Digital servo remote control for full servo studio control, robotics, jibs, tower cams, teleconferencing, and other applications requiring high optical quality
- Focal length - 13.5-570 mm (without extender) / 27-1140 mm (with extender)
- Maximum relative aperture of f/2.8 (13.5-307mm) / f/5.2 (570mm)
- Minimum object distance - 2.8m
- Object dimensions at MOD
-
- 4:3 aspect ratio - 1888 x 1061 mm (13.5 mm) / 45 x 25 mm (570 mm)
- 16:9 aspect ratio - 944 x 530 mm (27mm) / 22 x 13 mm (1140mm)
- Angular field-of-view
-
- 4:3 aspect ratio - 39°7' x 22°35' (13.5mm)
- 16:9 aspect ratio - 0°58' x 0°33' (570mm)
- Filter thread - M127 x 0.75
In the Box Fujinon HA42X13.5BERD-S48 High-definition Telephoto Lens (EFP) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HA42X13.5BERD-S48 High-definition Telephoto Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 13.5-570mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 13.5 to 570mm
With Extender: 27 to 1140mm | | Built-In Extender | 2.2x | | Zoom Ratio | 42x | | Angle of View | 4:3
Wide: 39.12 x 22.58° (H x V)
Tele: 0.97 x 0.55° (H x V)
16:9
Wide: 20.13 x 11.4° (H x V)
Tele: 0.48 x 0.27° (H x V) | | Maximum Aperture | f/2.8 to 5.2 | | Filter Thread | M127 x 0.75 mm | | Macro | Yes | | Minimum Object Distance | 9.1' / 2.8 m | | Dimensions | 5.1 x 14.1" / 130.0 x 359.0 mm (
