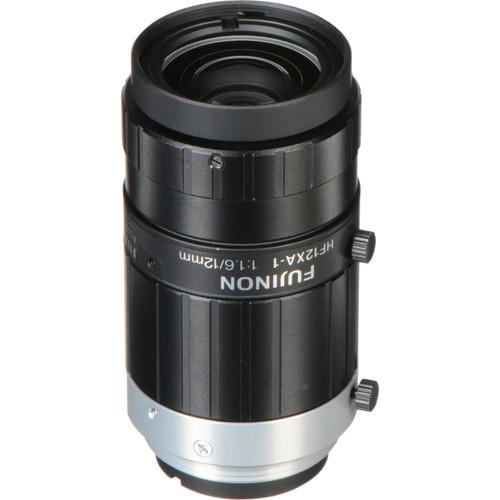

User Manual for Fujinon HF-XA Series C-Mount 12mm Fixed Focal Lens Click to enlarge the picture
Contents of the user manual for the Fujinon HF-XA Series C-Mount 12mm Fixed
- Product category: Industrial Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Industrial Lenses
|
User manual for the Fujinon HF-XA Series C-Mount 12mm Fixed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description With support for 3MP 2/3" sensors, the HF-XA Series C-Mount 12mm Fixed Focal Lens from Fujinon maintains sharpness from the image sensor to all of the corners for maximum image recognition accuracy. The lens features an f/1.6 to f/16 iris range, and the 12mm focal length creates a 40.1° x 30.3° angle of view when attached to a camera with a 2/3" image sensor (available separately). At 2.8, this lightweight lens is compact for convenient transport and storage. Three mounting holes each for the iris and focus rings allow the lens to be used for machine vision applications. - High resolution for accurate image recognition
- With support for a 3MP 2/3"-format sensor, the lens maintains edge-to-edge sharpness, even when wide open or during change of shooting distance.
- Compact and lightweight body
- The lens' 1.2" diameter and 2.8 oz lightweight body offer a compact system size for convenience.
- Convenient installation
- Three screw holes each are provided on the iris ring and focus ring for affixing the lens in place. When screwing down the lens, you can choose from those three positions on both rings for an easy installation.
In the Box Fujinon HF-XA Series C-Mount 12mm Fixed Focal Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HF-XA Series C-Mount 12mm Fixed Focal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon HF12XA-1 Specs | Focal Length | 12mm | | Iris Range | f/1.6 to f/16 | | Angle of View | With 2/3" camera: 40.1° x 30.3° | | Working Distance | 100mm to infinity | | Operation | Focus: manual
Iris: manual | | Filter Thread | M25.5 x 0.5 | | Mount | C-Mount | | Sensor Size | Maximum: 2/3" | | TV Distortion | -1.3% | | Diameter | 1.2" / 29.5 mm | | Length | 2.0" / 51.5 mm | | Weight | 2.8 oz / 79.0 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.1 x 2.1 x 2.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
