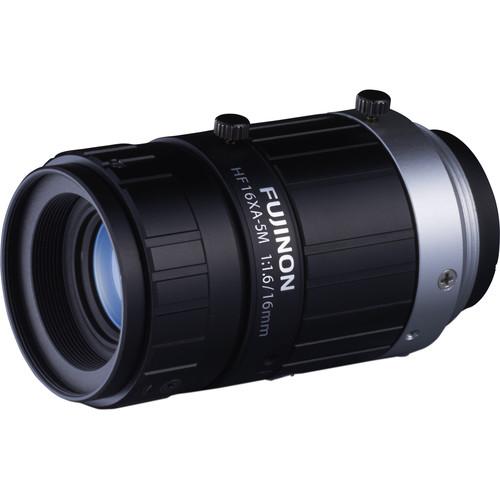

Product description Fujinon's HF16XA-5M 2/3" 15.87mm 5MP Machine Vision Lens is a C-mount lens for 2/3" sensors and suitable for machine vision applications. Designed to resolve images on sensors up to 5MP, it features locking manual focus and iris rings for use in demanding environments. The lens can focus from infinity down to less than an 4" from the front of the lens, producing sharp images with little distortion. It accepts M25.5-size threaded filters. - 15.87mm fixed focal length lens
- The lens maintains edge-to-edge sharpness from the image center to all corners for higher image recognition accuracy, even when changing focus
- The lens exhibits a maximum resolution of 3.45µm pixel pitch over a large area of your sensor
- The lens maintains what Fujinon calls 4D High Resolution performance, resolving to a pixel pitch on the sensor of 4.4µm
-
- Focus and iris rings are locking, and each ring has three different locking holes that can receive the locking knob
- This enables you to use this lens in a variety of limited space applications as you can install the lens, and then fit the locking knob to the most advantageous receiving hole
In the Box Fujinon HF16XA-5M 2/3" 15.87mm 5MP Machine Vision Lens Front Cap Rear Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HF16XA-5M 2 3" 15.87mm 5MP Machine Vision Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon HF16XA-5M Specs | Focal Length | 15.87mm | | Image Sensor Size Supported | 2/3" | | Resolution | Max: 3.45 µm pixel pitch
Min: 4.4 µm pixel pitch | | Mount | C-mount | | Focus | Manual | | Iris Range | f/1.6 to f/16 | | Iris Control | Manual | | Angle of View | 31.4° x 23.7° | | Working Distance | ∞ to 3.94" / 10 cm | | Filter Thread | M25.5 × 0.5 mm | | Back Focal Distance | 0.42" / 10.66 mm | | Flange Back Length | 17.526 mm | | Exit Pupil Position | -8.12" / -206.22 mm (from image plane) | | Principal Point | Front: -12.33 (from mount)
Rear: 1.65 (from mount)
Distance Between Principal Points: 14.13 | | TV Distortion | -0.6% | | Relative Illumination | 48 | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 1.16 x 1.81" / 29.5 x 46 mm | | Weight | 2.5 oz / 71 g (approximately) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.1 x 2.2 x 1.9" |
