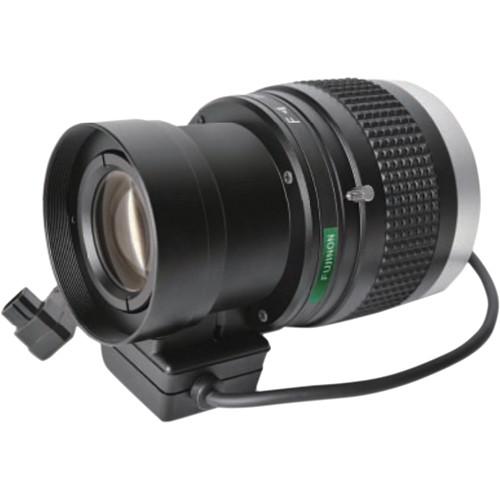

User Manual for Fujinon HF35SR4A-SA1L C-Mount 35mm Fixed Focal Day Night Lens for CCTVs Click to enlarge the picture
Contents of the user manual for the Fujinon HF35SR4A-SA1L C-Mount 35mm Fixed Focal
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon HF35SR4A-SA1L C-Mount 35mm Fixed Focal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The HF35SR4A-SA1L CS-Mount 35mm Fixed Focal CCTV Lens from Fujinon is well suited for high-quality day/night surveillance with optical performance up to 5MP in resolution. When combined with 2/3" cameras, advanced surveillance can be achieved. With the special optic glass and well-engineered design, chromatic aberration gets reduced. The built-in ND filter optimizes the brightness of bright objects in direct sunlight. In the Box Fujinon HF35SR4A-SA1L C-Mount 35mm Fixed Focal Day/Night Lens for CCTVs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HF35SR4A-SA1L C-Mount 35mm Fixed Focal Day Night Lens for CCTVs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon HF35SR4A-SA1L Specs | Mount | C | | Focal Length | 35 mm | | Focus | Manual | | Iris Range | F2.0 - T360 | | Iris | Auto (DC type) When power is turned off, iris will automatically close. | | Back Focal Distance | 19.65 mm in air | | Exit Pupil Position | -68 mm from image plane | | Object Dimensions at M.O.D. | 2/3": 191 × 143 mm
1/2": 139 × 104 mm
1/3": 104 × 78 mm | | Object Dimensions at M.O.D. (16:9) | 2/3": 208 × 117 mm
1/2": 151 × 85 mm
1/3": 114 × 64 mm | | Angular Field of View | 2/3": 14°20' × 10°46'
1/2": 10°27' × 7°51'
1/3": 7°51' × 5°53' | | Angular Field of View (16:9) | 2/3": 15°36' × 8°48'
1/2": 11°22' × 6°25'
1/3": 8°33' × 4°49' | | Focusing Range | Infinity to 0.75 m | | Filter Thread | M40.5 × 0.5 mm | | Coil Resistance | Drive Coil: 190 Ω
Damping Coil: 1,150 Ω | | Current Consumption | 23 mA (Maximum) at 4 VDC | | Weight | 9.52 oz (270.00 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 4.9 x 3.0 x 2.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
