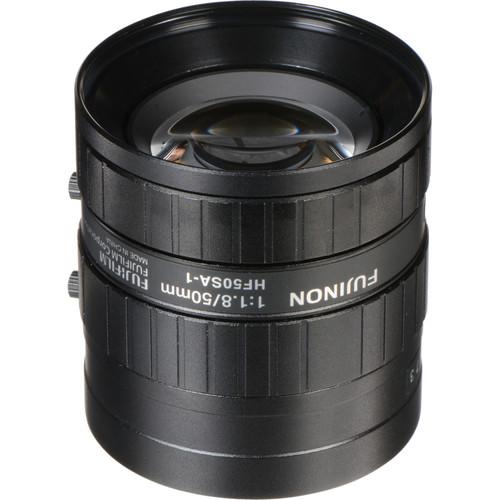

User Manual for Fujinon HF50SA-1 2 3" C-Mount 50mm f 1.8 Manual Iris Lens for 5 Megapixel Camera Click to enlarge the picture
Contents of the user manual for the Fujinon HF50SA-1 2 3" C-Mount 50mm
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon HF50SA-1 2 3" C-Mount 50mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description Designed for factory automation and machine vision applications, the Fujinon HF50SA-1 high resolution C-mount lens supports digital cameras up to 5 megapixels and uses superior optics to achieve corner-to-corner performance with low distortion. Requiring a minimum focusing range of only 0.4 meter, this compact and robust lens features a rear focusing system and is particularly well suited for applications where highly detailed close-up imaging is a priority. Additionally, this lens employs a ring lock system to prevent the focus and iris rings from shifting on vibrating machinery. - High Resolution
- Designed for digital cameras up to 5 mega pixel, this lens employs superior optics to achieve quality corner-to corner performance with low distortion and features a wide-aperture (F1.8) design to enhance image illumination in low light conditions.
- Compact & Robust
- Engineered for machine vision and factory automation applications, this compact and robust lens is designed to fit a wide range of machinery and uses a rear focusing system to achieve highly detailed close-up imaging.
- Ring Lock
- Employs a ring lock mechanism to prevent focus and iris shift when used on vibrating machinery.
In the Box Fujinon HF50SA-1 2/3" C-Mount 50mm f/1.8 Manual Iris Lens for 5 Megapixel Camera 1 Year parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HF50SA-1 2 3" C-Mount 50mm f 1.8 Manual Iris Lens for 5 Megapixel Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon HF50SA-1 Specs | Lens Mount | C | | Sensor Compatibility | 2/3" | | Focal Length | 50mm | | Back Focal Length | 17.81mm | | Aperture | f/1.8 to 22 | | Angle of View | 2/3" Sensor
Horizontal: 10.05°
Vertical: 7.55°
1/2" Sensor
Horizontal: 7.32°
Vertical: 5.5°
1/3" Sensor
Horizontal: 5.5°
Vertical: 4.12° | | Minimum Object Distance | 1.33' / 0.4 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Filter Thread | M49 | | Weight | 0.5 lb / 240 g | | | | Package Weight | 0.625 lb | | Box Dimensions (LxWxH) | 4.3 x 2.95 x 2.8" |
