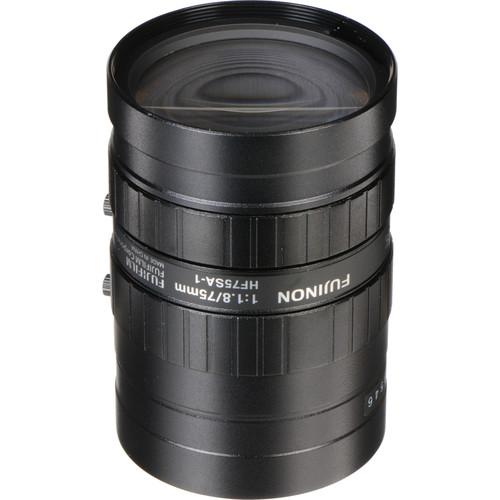

User Manual for Fujinon HF75SA-1 75mm f 1.8 C-Mount Fixed Focal Lens for 5 Megapixel Cameras, Metal Mount Click to enlarge the picture
Contents of the user manual for the Fujinon HF75SA-1 75mm f 1.8 C-Mount
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon HF75SA-1 75mm f 1.8 C-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description Designed for factory automation and machine vision applications, the Fujinon HF75SA-1 high resolution C-mount lens supports digital cameras up to 5 megapixel and uses superior optics to achieve corner-to-corner performance with low distortion. Requiring a minimum focusing range of only 0.9 meter, this compact and robust lens features a rear focusing system and is particularly suited for applications where highly detailed close-up imaging is a priority. Additionally, this lens employs a ring lock system to prevent focus and iris shifting when used on vibrating machinery. - High Resolution
- Designed for digital cameras up to 5 megapixel, this lens employs superior optics to achieve quality corner-to corner performance with low distortion and features a wide-aperture (f/1.8) design to enhance image illumination in low light conditions.
- Compact & Robust
- Engineered for machine vision and factory automation applications, this compact and robust lens is designed to fit a wide range of machinery and uses a rear focusing system to achieve highly detailed close-up imaging.
- Ring Lock
- Employs a ring lock mechanism to prevent focus and iris shift when used on vibrating machinery.
In the Box Fujinon HF75SA-1 75mm f/1.8 C-Mount Fixed Focal Lens for 5 Megapixel Cameras, Metal Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HF75SA-1 75mm f 1.8 C-Mount Fixed Focal Lens for 5 Megapixel Cameras, Metal Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon HF75SA-1 Specs Lens Mount | C | Sensor Compatibility | 2/3" | Focal Length | 75mm | Back Focal Length | 24.43mm | Aperture | f/1.8 to 22 | Angle of View | 2/3" Sensor Horizontal: 6.72° Vertical: 5.33° 1/2" Sensor Horizontal: 4.88° Vertical: 3.67° 1/3" Sensor Horizontal: 3.67° Vertical: 2.75° | Minimum Focus Distance | 3.0' / 0.9 m | Focus Type | Manual Focus | Iris Type | Manual | Filter Thread | M49 x 0.75 mm | Weight | 10.8 oz / 305 g | | Package Weight | 0.775 lb | Box Dimensions (LxWxH) | 4.25 x 2.85 x 2.8" |
