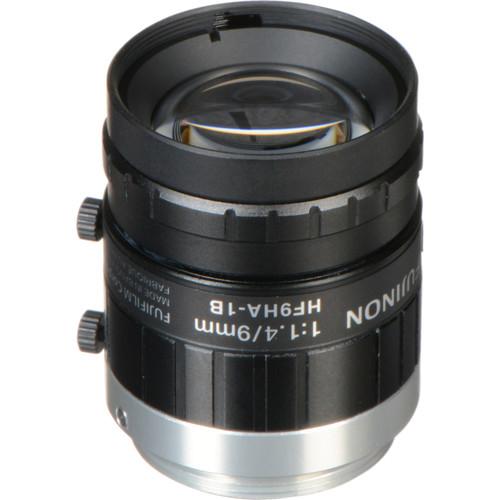

User Manual for Fujinon HF9HA-1B 9mm f 1.4 Fixed Focal Lens with C-Mount and Locking Iris Focus for 2 3-Inch CCD, Industrial and Machine Vision Click to enlarge the picture
Contents of the user manual for the Fujinon HF9HA-1B 9mm f 1.4 Fixed
- Product category: Industrial Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Industrial Lenses
|
User manual for the Fujinon HF9HA-1B 9mm f 1.4 Fixed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon HF9HA-1B is a very high quality C-mount lens designed for industrial applications like robotics and machine vision. It is intended to deliver quality images when mounted on cameras with as much as 1.5 megapixel resolution. Among its features this lens has locking focus and iris rings so it can operate consistently in jobs where the camera may experience significant vibration. - High Resolution Optics for High Resolution Cameras
- This lens was designed with quality glass and advanced anti-reflective coatings to produce detailed images in harsh environments. Fujinon developed this lens to work on cameras with up to 1.5 megapixel sensors.
- Manual Adjustments
- The HF9HA-1B is a completely manual C-mount lens designed for high quality images in potentially difficult applications. Often the manufacturing process can shake or vibrate machinery which can be an issue that needs to be managed when using video for quality control and production. This lens has locking iris and focus rings so those settings do not change over time.
- Narrow Field of View
- What good is a lens that doesn't aim decidedly at your target area of action? The HF9HA-1B delivers a medium angle of view so you'll see exactly what you need to see. This lens produces a 33° horizontal angle of view, with a 25° vertical angle. Its MOD (minimum object distance) is a very macro 0.1 meters or about 4 inches.
In the Box Fujinon HF9HA-1B 9mm f/1.4 Fixed Focal Lens with C-Mount and Locking Iris/Focus for 2/3-Inch CCD, Industrial and Machine Vision 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon HF9HA-1B 9mm f 1.4 Fixed Focal Lens with C-Mount and Locking Iris Focus for 2 3-Inch CCD, Industrial and Machine Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon HF9HA-1B Specs | Lens Mount | C | | Sensor Compatibility | 2/3" CCD (1.5 MP) | | Focal Length | 9mm | | Aperture | f/1.4 to 16 | | Angle of View | 2/3" Sensor
Horizontal: 29.9°
Vertical: 22.6° | | Minimum Object Distance | 4" / 10.2 cm | | Focus Type | Manual Focus | | Iris Type | Manual | | Filter Thread | M27 | | Dimensions (DxL) | 1.3 x 1.1" / 35 x 29.5 mm | | Weight | 1.9 oz / 55 g | | | | Package Weight | 0.175 lb | | Box Dimensions (LxWxH) | 3.1 x 2.1 x 2.1" |
