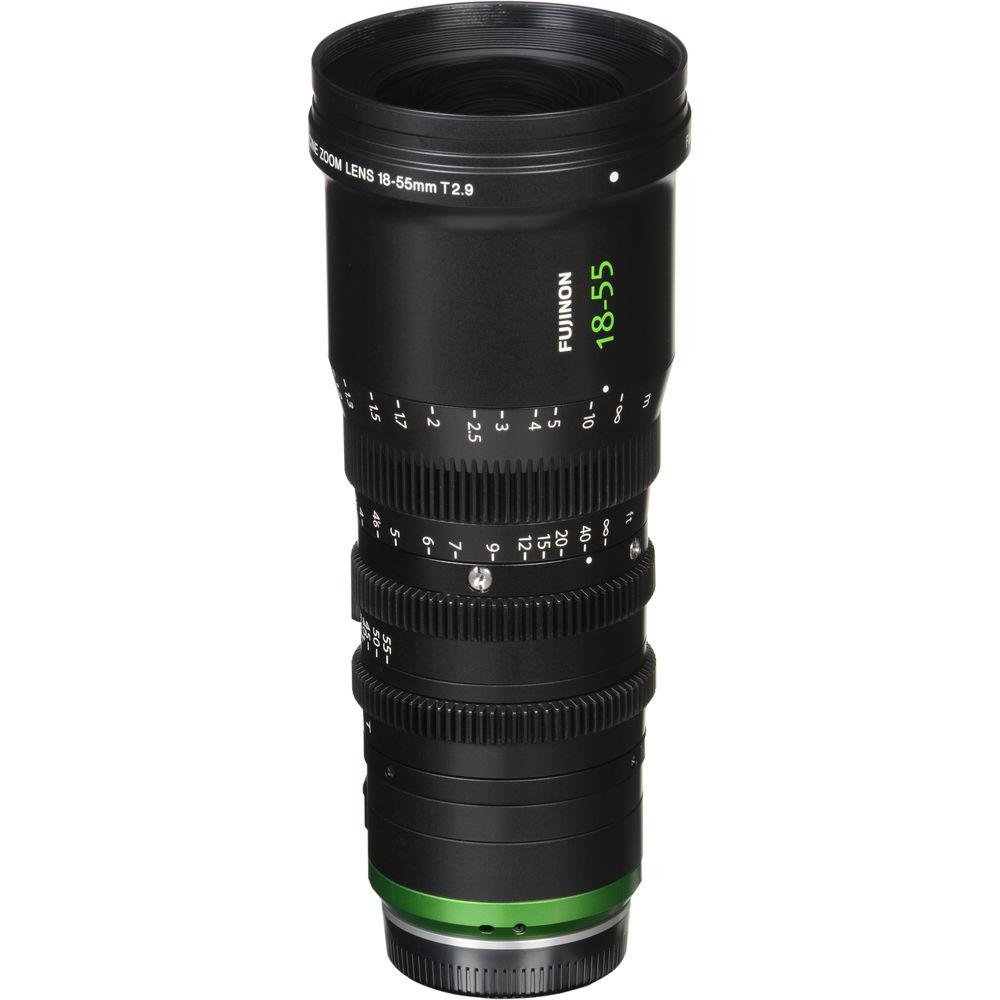

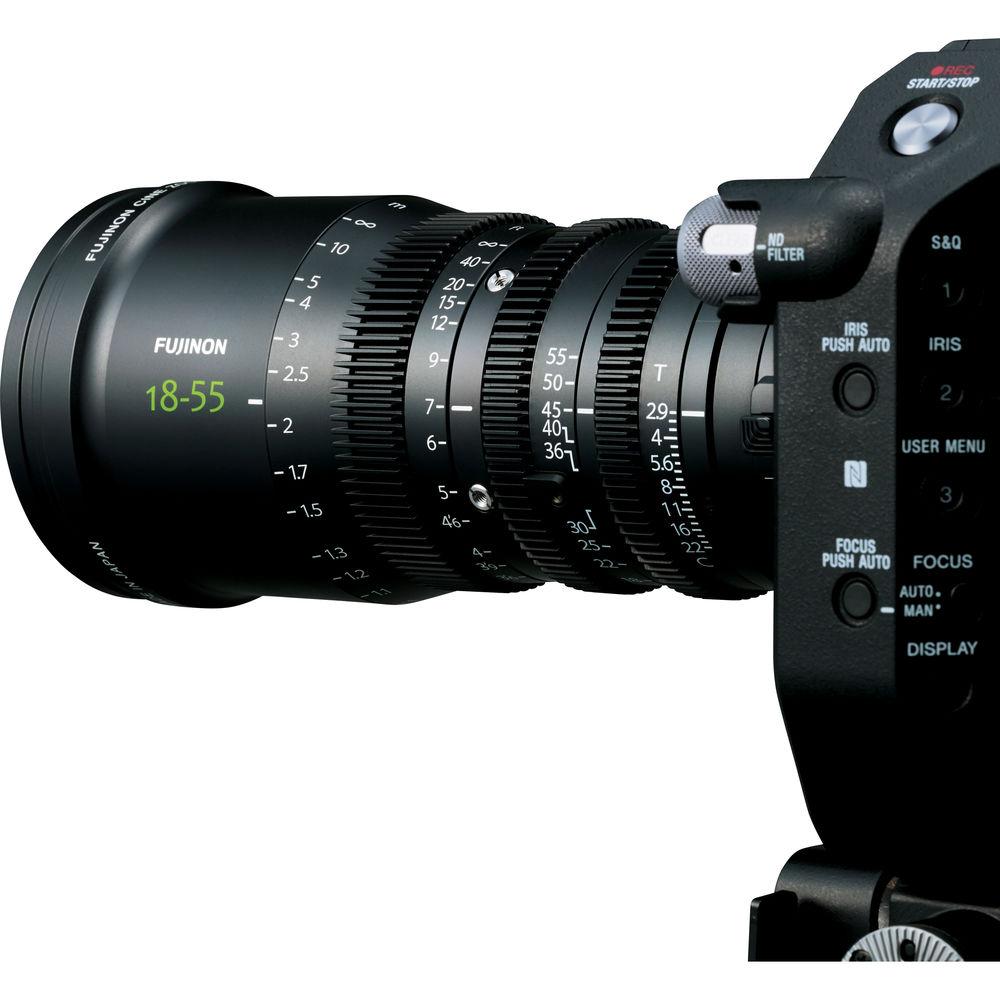

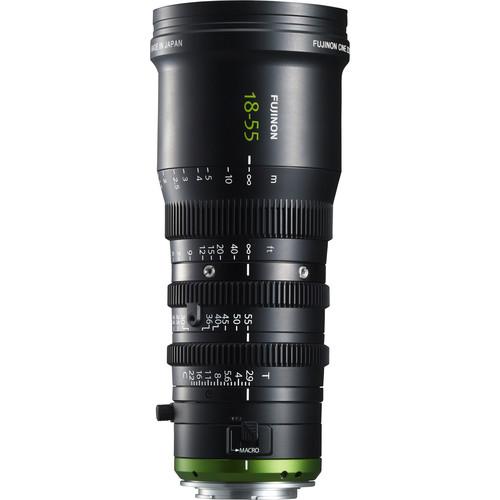

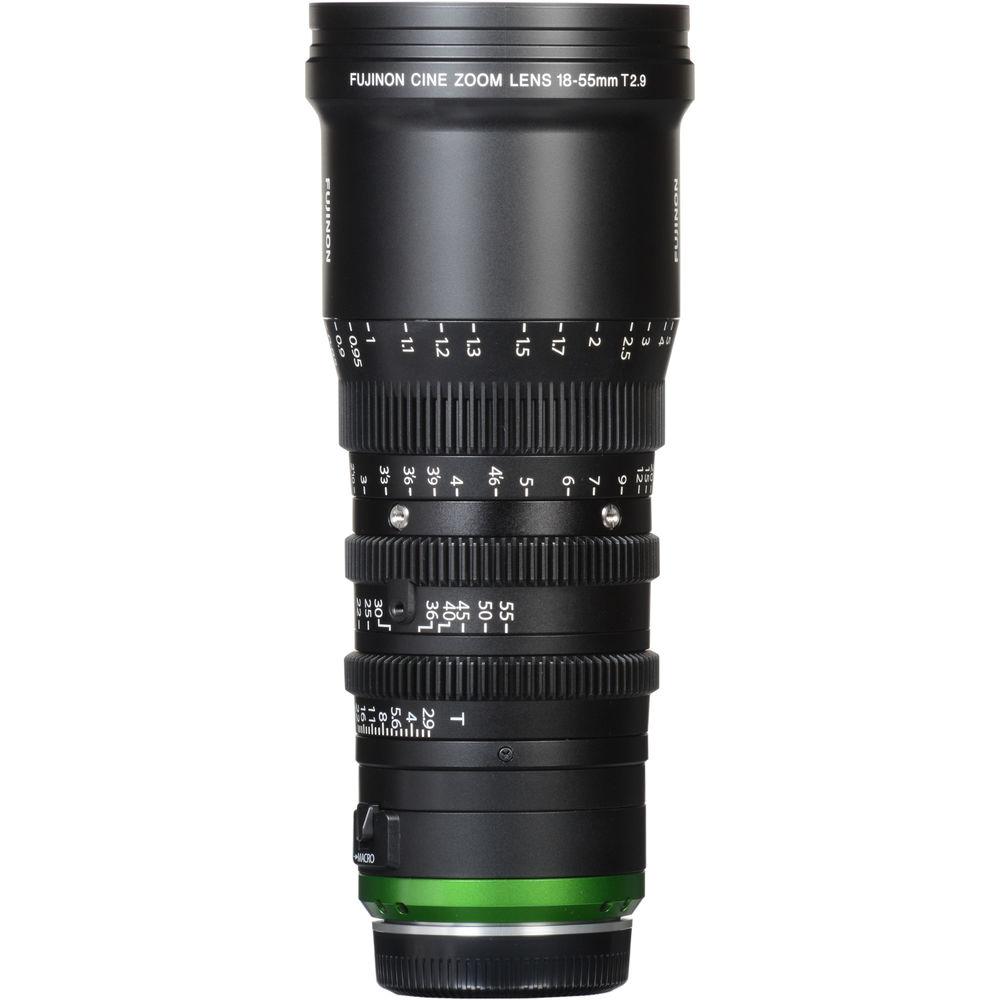

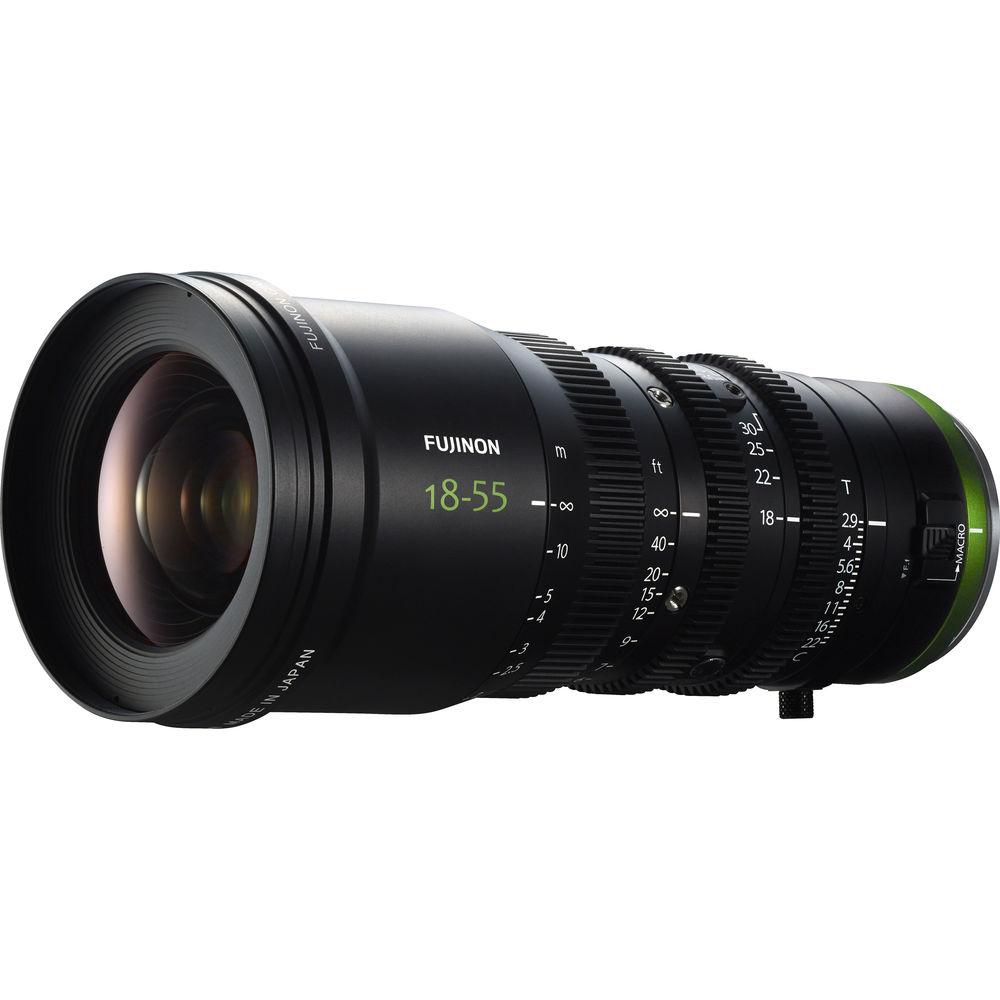

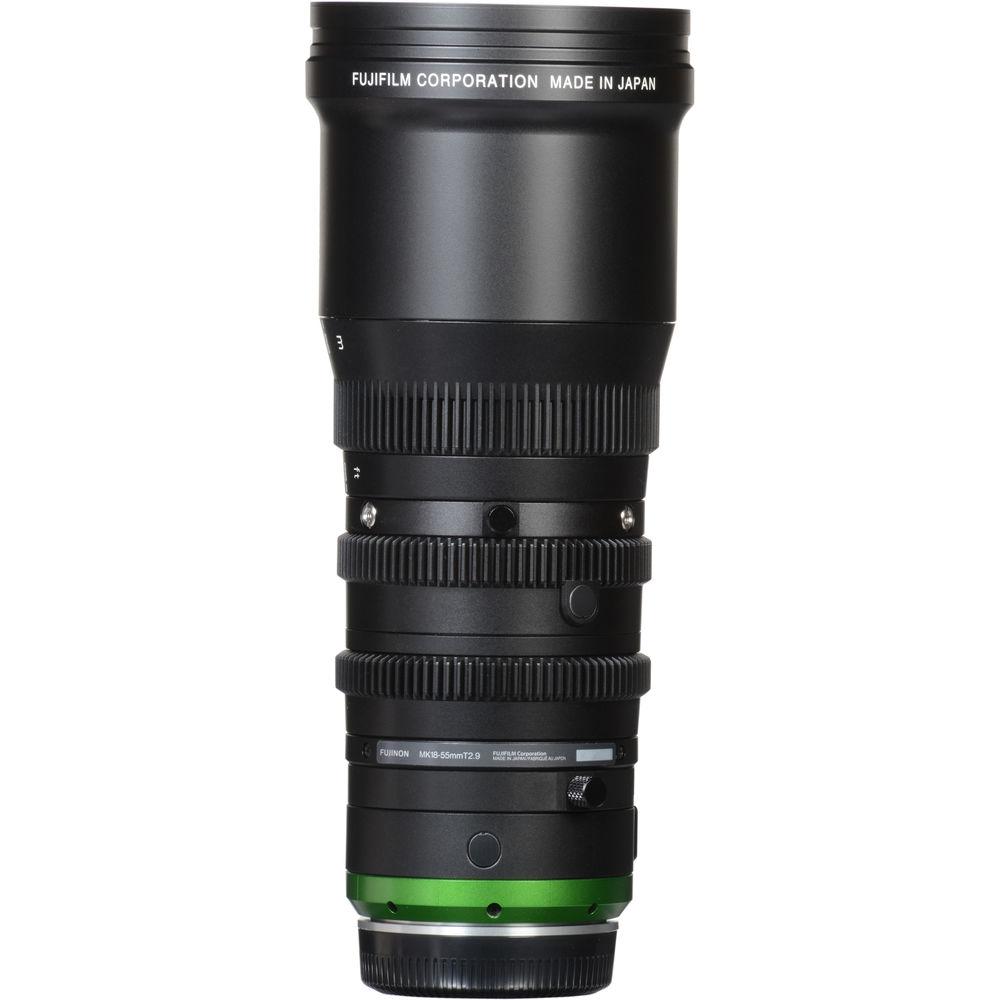

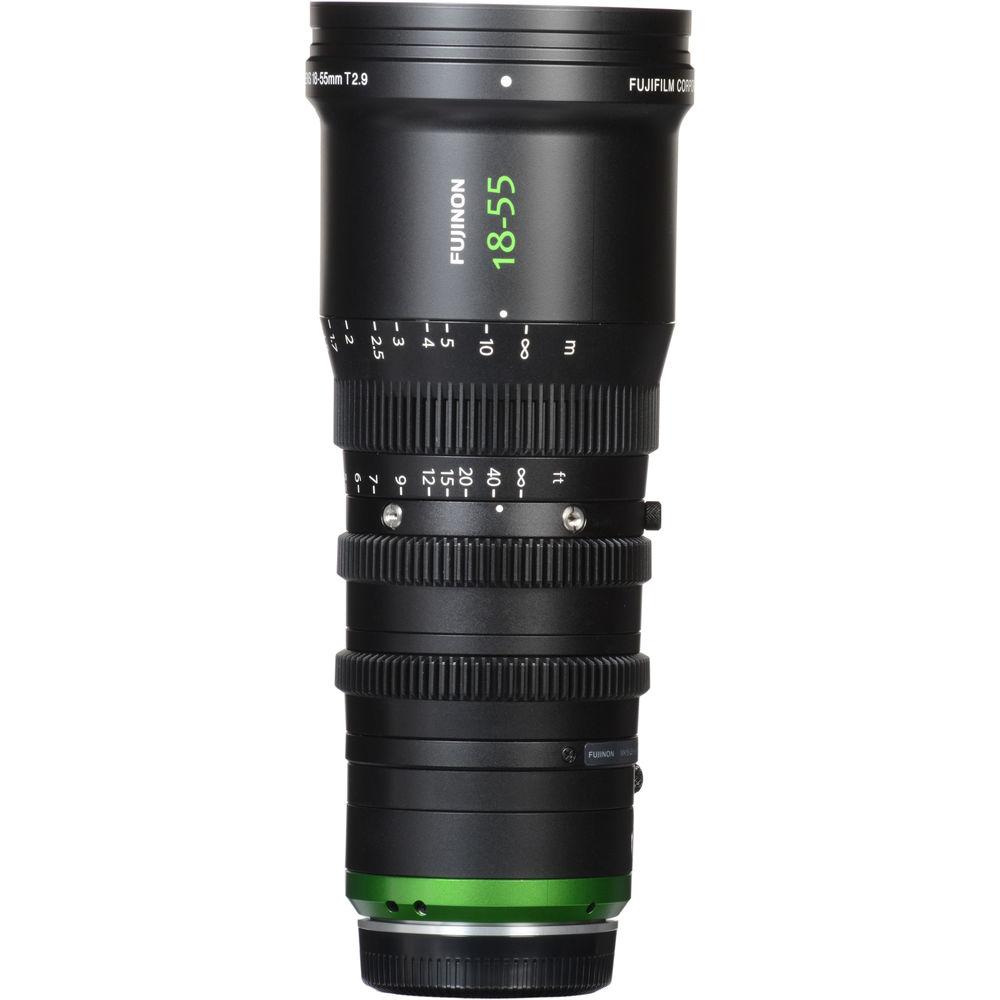

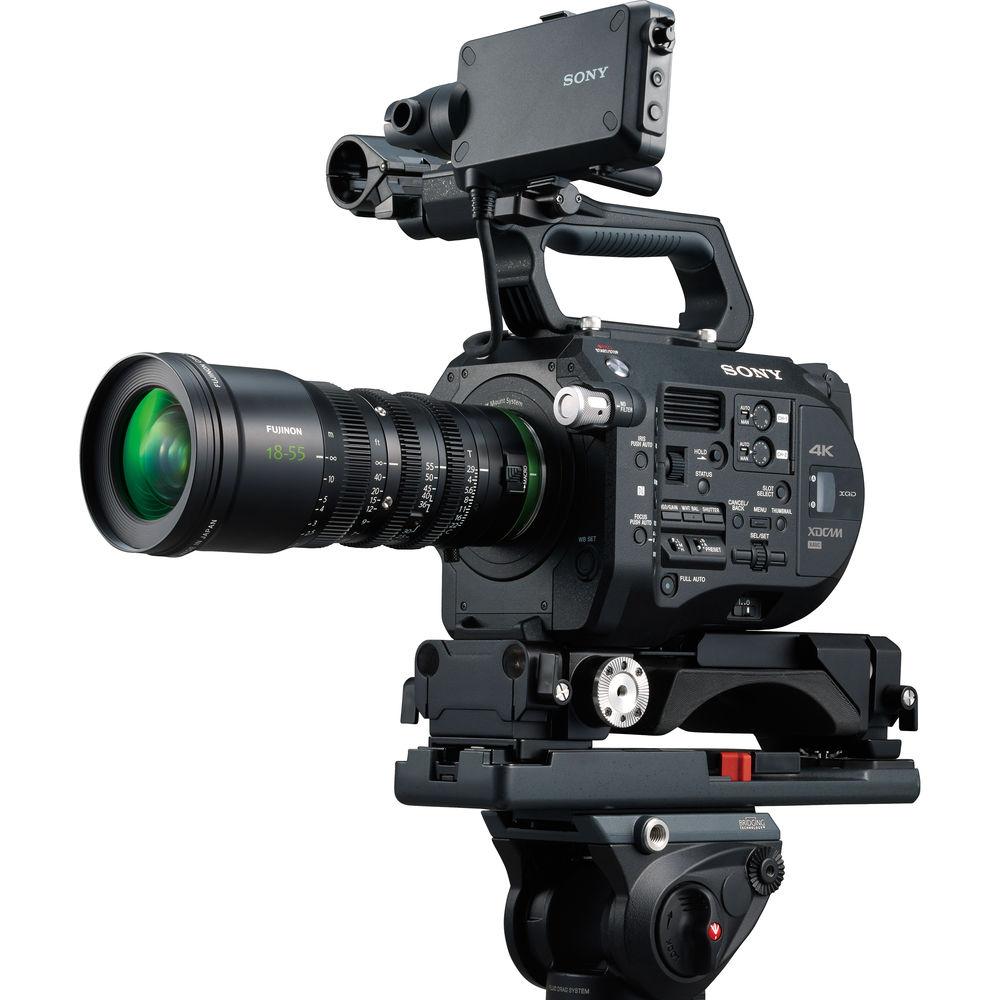

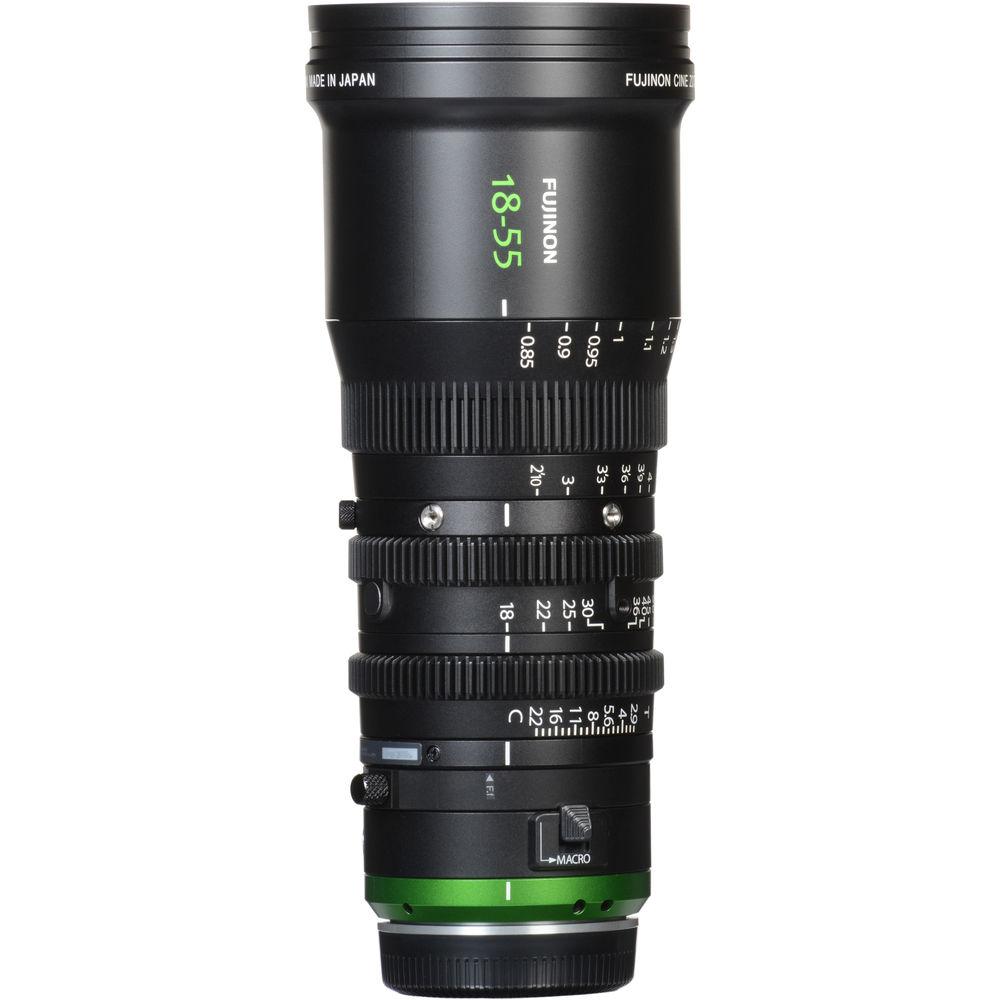

The Fujinon MK18-55mm T2.9 Lens in E Mount is a lightweight cine-style zoom lens for E-mount cameras with a Super 35mm-sized sensor. It features a mechanical design with three independent lens control rings: focus, iris, and zoom. Each ring incorporates a cine-style gear with a 0.8 MOD for interfacing with standard cine -style lens accessories. The focus ring features approximately 200° of rotation, which provides room or precise focus pulls, and the iris is clickless, enabling smooth iris pulls. The lens also incorporates a macro mode for close focusing capabilities.

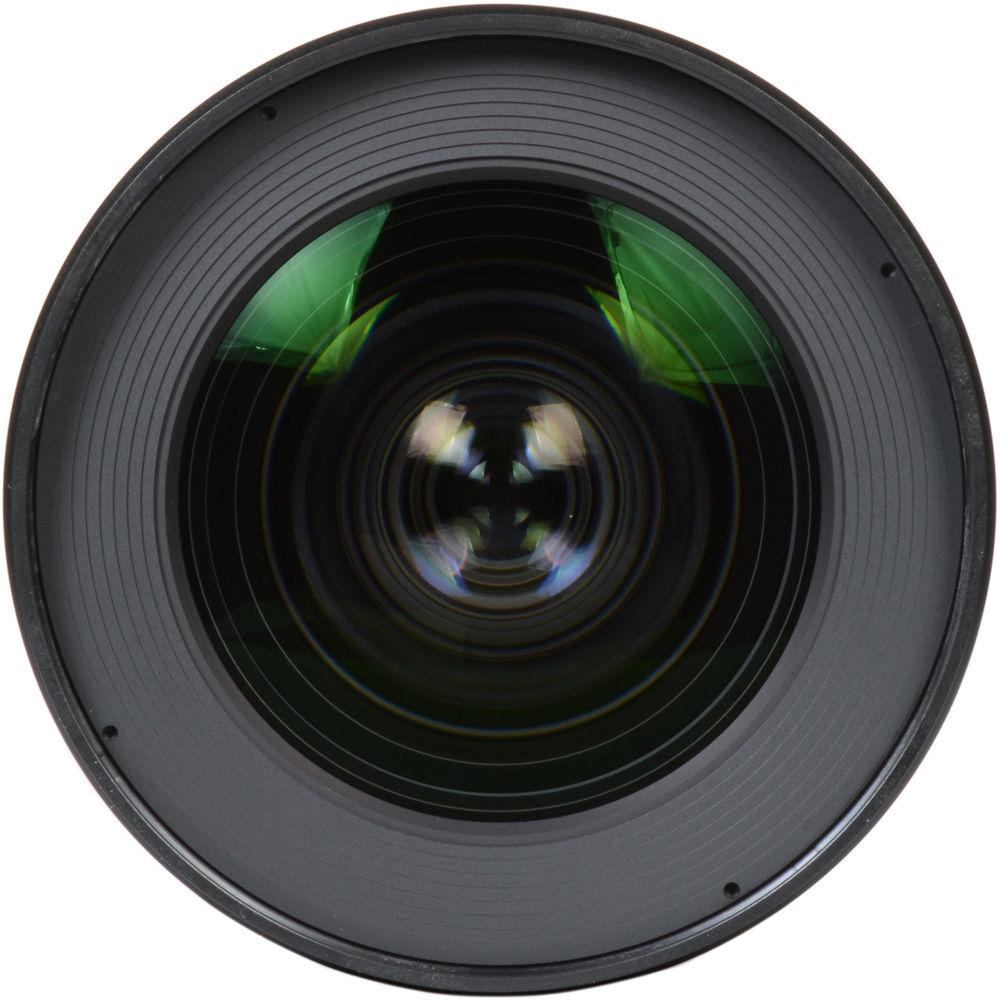

The lens is color matched to other Fujinon lenses such as the HK, ZK, and XK series, which enables smooth intercutting between lenses. The 85mm front enables use with many cine-style matte boxes via use of optional step up rings (rings not included). The lens weighs only 2.16 pounds, which is fairly light for a cinema zoom that holds focus and aperture throughout the focal length range. It is designed for camera's with a Sony E mount, so it has a short flange focal distance, but the lens allows for flange focal distance adjustment so you can fine tune it to the camera you are using the lens on. - T2.9 to T22 aperture with 9 iris blades for attractive bokeh
- The 28.5mm diameter image circle covers the 3-perf super 35 format with a 16:9 aspect ratio
- Industry standard 0.8 film pitch gears for focus, zoom, and iris control
- The gear rings positions for focus, zoom, and iris are located at the same position on both lenses in the MK series, making switching between the two zooms quick as you don't have to adjust the position of lens accessories
- Both lenses in the MK series have the same weight and length so here is no need to rebalance your camera when you change from one lens to the other
- 200° focus barrel rotation
- No shims are required to adjust the flange focal distance as this lens has a built-in adjustment mechanism
- Macro focus function available
UPC: 074101032529 In the Box Fujinon MK18-55mm T2.9 Lens (Sony E Mount) Zoom Lever Support Foot Lens Hood Limited 1-Year Warranty Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 rwfyesqfdbcdqfuczyxxysctyfuxaeewc Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon MK18-55mm T2.9 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon MK18-55mm T2.9 Specs | Mount Type | E Mount | | Image Circle | 28.5 mm diameter (supports 24.84 x 13.97 mm sensors) | | Focal Length | 18 - 55 mm | | Aperture | T 2.9 to T 22 and closed | | Iris Blades | 9 | | Gear Mod | 0.8 | | Focus Rotation | 200° | | Minimum Focus Distance | Standard: 2.8' / 0.85 m
Macro: 1.25' / 0.38 m | | Object Size at Minimum Focus Distance (16 x 9) | 18mm: 36.38 x 20.47" / 924.00 x 520.00 mm
55mm: 7.6 x 4.3" (193 x 109 mm) | | Angle of View (16:9) | 18 mm: 69.2° x 42.4°
55 mm: 25.5° x 14.5° | | Macro | Available | | Front Diameter | Filter Thread: 82 mm
Outside diameter: 85 mm | | Length | 8.12" / 20.63 cm | | Weight | 2.16 lb / 0.98 kg | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 13.15 x 7.638 x 6.614" |
