User Manual for Fujinon MK50-135mm T2.9 Lens Click to enlarge the picture
Contents of the user manual for the Fujinon MK50-135mm T2.9 Lens
- Product category: Digital Cine Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Digital Cine Lenses
|
User manual for the Fujinon MK50-135mm T2.9 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|

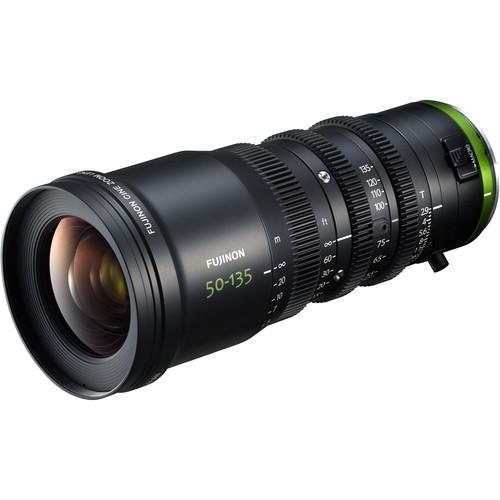

Product description Cinema Lens Care and Maintenance Read More cyfvztwssavzzbwx The Fujinon MK50-135mm T2.9 Lens is a lightweight cine-style zoom lens for MFT mount cameras with a Super 35mm-sized sensor. It features a mechanical design with three independent lens control rings: focus, iris, and zoom. Each ring incorporates a cine-style gear with a 0.8 MOD for interfacing with standard cine-style lens accessories. The focus ring features approximately 200° of rotation, which provides room for precise focus pulls, and the iris is clickless, enabling smooth iris pulls. The lens also incorporates a macro mode for close focusing capabilities.
The lens is color matched to other Fujinon lenses such as the HK, ZK, and XK series, which enables smooth intercutting between lenses. The 85mm front enables use with many cine-style matte boxes via use of optional step-up rings (rings not included). The lens weighs only 2.16 pounds, which is fairly light for a cinema zoom that holds focus and aperture throughout the focal length range. It is designed for camera's with an MFT mount, so it has a short flange focal distance, but the lens allows flange focal distance adjustment so you can fine-tune it to the camera you are using the lens on. - T2.9 to T22 aperture with nine iris blades for attractive bokeh
- The 28.5mm diameter image circle covers the 3-perf Super 35 format with a 16:9 aspect ratio
- Industry standard 0.8 film pitch gears for focus, zoom, and iris control
- The gear rings positions for focus, zoom, and iris are located at the same position on lenses in the MK series, making switching between the zooms quick as you don't have to adjust the position of lens accessories
- Lenses in the MK series have the same weight and length so there is no need to rebalance your camera when you change from one lens to the other
- 200° focus barrel rotation
- No shims are required to adjust the flange focal distance as this lens has a built-in adjustment mechanism
- Macro focus function available
In the Box Fujinon MK50-135mm T2.9 Lens (MFT Mount) Zoom Lever Support Foot Lens Hood Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon MK50-135mm T2.9 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon MK50-135mm T2.9 Specs | Focal Length | 50 to 135mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Image Circle | 28.5 mm | | Maximum T-Stop | T2.9 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 2.8' / 0.85 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 85 mm | | Filter Thread | 82 mm | | Focus Scales | Metric, Imperial | | Focus Rotation | 200° | | Zoom Ratio | None | | Lens Support | Lens Support Foot | | Length | 8.12" / 20.62 cm | | Weight | 2.2 lb / 980 g |
