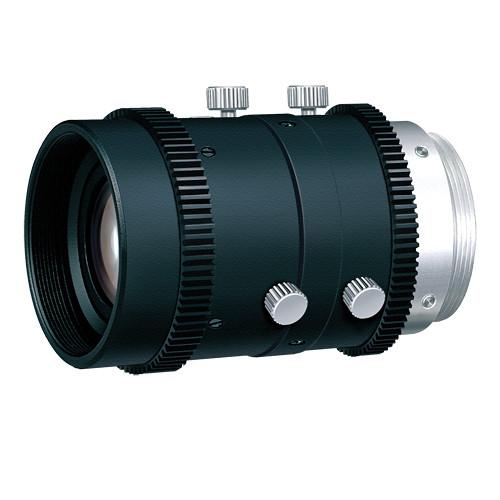

Product description The Fujinon TF4XA-1 4mm f/2.2 to f/16 High Definition Lens has a resolution of 300 LP/mm in Zone 1 (centre) to 200 LP/mm in Zone 3 (corners), which helps it fully exploit a 1/3” 3-CCD or 3-CMOS camera’s native HD resolution across all the three sensors. It has a wide aperture range of f/2.2 to f/16 and can capture clear images in poorly lit surroundings.
This compact lens has almost no chromatic fringing and provides uniformity of exposure even at apertures of f/2.2. It is fitted with gears for OEM focus and iris drives, and includes locking thumbscrews. - Integrates with 1/3" 3-CCD or 3-CMOS HD cameras
- Robust and precise mechanics
- Drive gear for OEM focus and iris drives
- Internal and external filter threads
- Bore alignment specification complements 3D camera systems
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon TF4XA-1 4mm f 2.2 to f 16 High Definition Lens for 1 3" 3-CCD or 3-CMOS HD Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon TF4XA-1 Specs | Compatible with | 1/3" 3-CCD and 3-CMOS HD camera systems, including Toshiba's IK-HD1H 1/3" 3-CCD Camera and IK-HD3H 1/3" 3-CMOS Camera | | Focal Length | 4.0 mm
Back: 14.0 mm (in air)
Flange: 17.5 mm (in air) | | Image Format | 1/3" 3-CCD / 3-CMOS | | Image Size | Ø: 0.23" (6.0 mm) / 0.20 x 0.11" (5.23 x 2.94 mm) | | Maximum Aperture | f/2.2 | | Aperture Range | f/2.2 to f/16 close (no detente) | | Angle of View (HxV) 16:9 | 71° 28' x 41° 31' | | Focusing Range | Infinity to 3.93" (0.10 m) from the front of the lens | | Lens Shift | 0.15 mm | | Minimum Object Distance | 3.93" (0.10 m) | | Resolution | 300 lp/mm at the centre; 200 lp/mm at the corners | | Exit Pupil Range | -4.5" (-114.0 mm) from the image plane | | Filter Thread | Inside: M27.5 x 0.5
Outside: M30.5 x 0.5 | | Mount | C-mount (metal) | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Relative Humidity | 35 to 90% | | Dimensions (Ø x L) | 1.3 x 1.7" (32.8 x 44.5 mm) | | Weight | 3.5 oz (100.0 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.1 x 2.5 x 2.4" |
