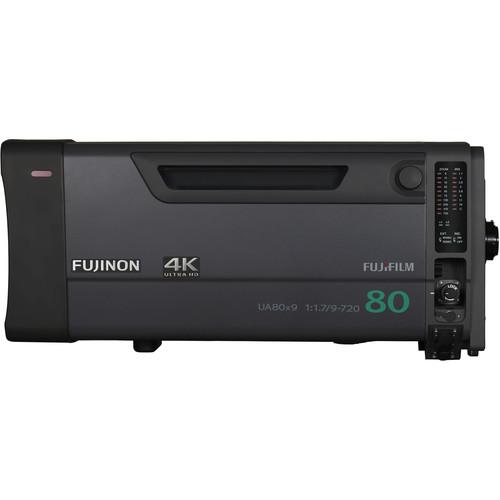

User Manual for Fujinon UA80x9 1.2x 4K Plus Premier UHD 80x Box Zoom 1.2x and 2x Extenders Click to enlarge the picture
Contents of the user manual for the Fujinon UA80x9 1.2x 4K Plus Premier
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon UA80x9 1.2x 4K Plus Premier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon UA80x9 1.2x 4K UHD 80x Field Zoom is a box-type lens with an 80x zoom ratio. Use the built-in 1.2x extender to extend the range to 10.8-864mm, or the 2x extender for an 18-1440mm range. Designed so you can get up close and personal at sporting events and other large-scale productions, this zoom features a fast f/1.7 maximum aperture from 9-350mm. Aspherical elements help provide an ultra-high resolution surpassing 4K, and the lens maintains high contrast levels and HDR (high dynamic range) from its wide to its telephoto end. This zoom incorporates a floating focus system that controls lens groups according to your shooting distance, minimizing any variations when shifting distances. An optical image-stabilization system aids in capturing steady shots, even at long ranges. The UA80x9 1.2x 4K UHD 80x is constructed with a 9-blade iris for attractive bokeh and natural-looking bright objects. Its HT-EBC lens coating enables high red and blue transmittance while providing a low reflectivity ratio. The lens has 16-bit encoders to output data for use with virtual systems. This box zoom requires the use of one of several compatible Fujinon servo control setups (not included). Note: A focus/zoom servo system is not included with the lens Features - Greater than 4K resolution, high contrast levels, and high dynamic range across the focal length range
- 80x zoom ratio lens for 2/3"-sensor cameras
- 16-bit encoders for transferring lens data to virtual systems
- 9-720mm native focal length, 10.8-864mm with the 1.2x extender, and 18-1440mm with the 2x extender
- Fast f1/7 maximum aperture at 9-350mm; f/3.5 at 720mm
- An optical image stabilization system enables steady shots even from long distances
- To minimize any variations when shifting among various distances, the floating focus system controls lens groups according to the shooting distance
- A 9-bladed iris produces attractive bokeh (out-of-focus highlights) and natural-looking bright objects
In the Box Fujinon UA80x9 1.2x 4K Plus Premier UHD 80x Box Zoom 1.2x and 2x Extenders Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon UA80x9 1.2x 4K Plus Premier UHD 80x Box Zoom 1.2x and 2x Extenders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 9-720mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 9 to 720mm
With Extender: 18 to 1440mm | | Built-In Extender | 1.2x
2x | | Zoom Ratio | 80x | | Angle of View | 16:9
Wide: 5.1 x 33.33° (H x V)
Tele: 0.77 x 0.43° (H x V)
16:9 With 1.2x Extender
Wide: 47.88 x 28° (H x V)
Tele: 0.63 x 0.35° (H x V)
16:9 With 2x Extender
Wide: 29.83 x 17.03° (H x V)
Tele: 0.38 x 0.22° (H x V) | | Maximum Aperture | f/1.7 to 3.5
With Extender: f/2 to 4.2 | | Minimum Object Distance | 12.1' / 3.7 m | | Dimensions | 24.0 x 10.4 x 10.2" / 610.0 x 264.0 x 258.0 mm (L x W x H) | | Weight | 52 lb / 23.5 kg |
