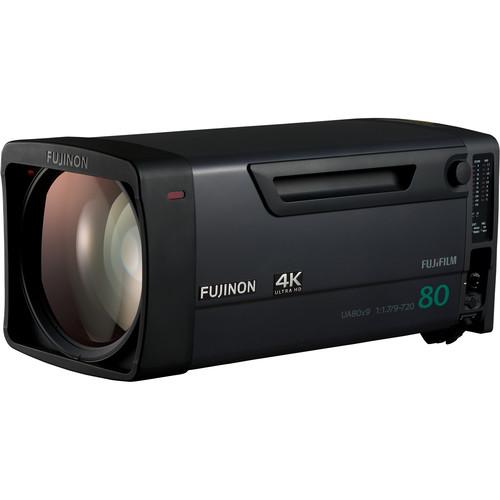

User Manual for Fujinon UA80X9BESM UA Series 80x Zoom 2 3" 4K UHD Lens Click to enlarge the picture
Contents of the user manual for the Fujinon UA80X9BESM UA Series 80x Zoom
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon UA80X9BESM UA Series 80x Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon UA80X9BESM UA Series 80x Zoom 2/3" 4K UHD Lens is a portable broadcast zoom lens with optical performance compatible with 2/3" format 4K cameras. Covering a focal length range from 9mm in wide angle to 720mm in telephoto, the lightweight and compact lens is suitable for broadcast applications, including live sport coverage, indoor/outdoor program production, and news reporting.The floating focus system, which controls multiple lens groups according to the shooting distance, delivers high-resolution and high contrast images from close-up to infinity, enabling 4K video production. Key Features - 80x Zoom from 9mm in wide angle to 720mm in telephoto
- High-precision vibration isolation/detection technology
- Nine-blade iris for natural bokeh
- Designed for use with 4K (UHD) resolution broadcast cameras
- Focus position demand unit with 16-bit encoding for accurate focusing
- Provides 4K optical performance from center to corner throughout the zoom range
- Equipped with conventional zoom/focus demand
- High-resolution, high contrast, and wide dynamic range across the entire zoom range
- Compatible with most typical accessories used in TV broadcast operations
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon UA80X9BESM UA Series 80x Zoom 2 3" 4K UHD Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 9-720mm Specs | Focal Length | 9 to 720mm | | Focal Length (with Extender) | 2x: 18 to 1440mm | | Zoom Ratio | 80x 2/3" | | Extender | 2x | | Maximum Relative Aperture (F-Number) | 1:1.7 (9 to 350 mm)
1:3.5 (351 to 720 mm) | | Minimum Object Distance (M.O.D.) | 12.1' (3.7 m) From front of lens | | Object Dimensions @ M.O.D. (16:9) | Without Extender:
At 9 mm: 330.3 x 73.07" (330.3 x 185.6 cm)
At 720 mm: 1.7 x 0.94" (43 x 24 mm)
With 2x Extender:
At 9 mm: 67.5 x 37.9" (171.4 x 96.3 cm)
At 720 mm: 1.8 x 1.0" (4.6 x 2.6 cm) | | Angular Field of View (16:9) | Without Extender:
At 9 mm: 56°6' x 33°20'
At 720 mm: 0°46' x 0°26'
With 2x Extender:
At 18 mm: 29°50' x 17°2'
At 1440 mm: 0°23' x 0°13' | | Filter Thread | M127 x 0.75
Filter attaches to the lens hood | | Dimensions (Ø x L) | 10.2 x 10.4 x 24.0" (25.8 x 26.4 x 61.0 cm) | | Weight | 51.8 lb (23.5 kg) Without lens hood |
