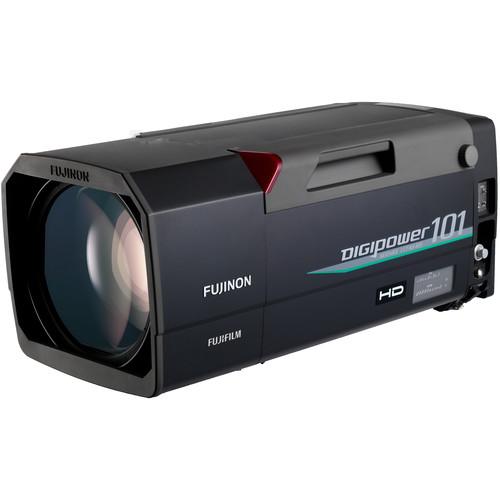

Product description This box type XA101x8.9BESM 2/3" HDTV Field Style Lens is a super telephoto field lens featuring a combination of wide angle and 101x zoom range (8.9 - 900mm). Fujinon's Super EBC optical coating ensures superb optical quality and the exclusive anti-fogging design minimizes lens fogging and reduces downtime due to moisture. Full remote control via RS-232 serial data port is possible. 13 bit encoder output is standard for virtual applications. - Digi Power
- With broadcasting technology rapidly converting to digital, Fujinon has developed a new digital servo control system, DIGI POWER, to enhance the performance of its zoom lenses. State-of-the-art components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions. An RS232 connector in the lens provides a connection between the lens and a PC, or other control device, for external control. This function has made it possible to control the lens functions with the high degree of accuracy and reliability needed for virtual studio and other robotic applications, and to raise the level for all production environments.
- Digital Quick Zoom
- Quick Zoom speed is improved to 0.7 seconds end to end. Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom can now be performed remotely from the ERD-T22 and ERD-10A-D01.
- OS-TECH
- Fujinon's OS-TECH (Optical Stabilization) contains sensors to detect the slightest movement horizontally or vertically that could cause vibration. A correction signal is applied to the optical correction system, which helps to maintain a stable image while shooting from an unstable platform.
- Features
-
- Dust proof and anti-fog
- Advanced back focus
In the Box Fujinon XA101x8.9BESM 2/3" HDTV Field Style Lens (Box Type) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon XA101x8.9BESM 2 3" HDTV Field Style Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 8.9-900mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 8.9 to 900mm
With Extender: 17.8 to 1800mm | | Built-In Extender | 2x | | Zoom Ratio | 101x | | Angle of View | 4:3
Wide: 52.62 x 40.68° (H x V)
Tele: 0.57 x 0.42° (H x V)
4:3 With 2x Extender
Wide: 27.77 x 21° (H x V)
Tele: 0.28 x 0.22° (H x V)
16:9
Wide: 56.63 x 33.7° (H x V)
Tele: 0.62 x 0.35° (H x V)
16:9 With 2x Extender
Wide: 30.15 x 17.22° (H x V)
Tele: 0.3 x 0.17° (H x V) | | Maximum Aperture | f/1.7 to 4.7 | | Minimum Object Distance | 8.9' / 2.7 m | | Dimensions | 26.0 x 10.4 x 10.6" / 66.0 x 26.5 x 27.0 cm (L x W x H) | | Weight | 52.5 lb / 23.8 kg |
