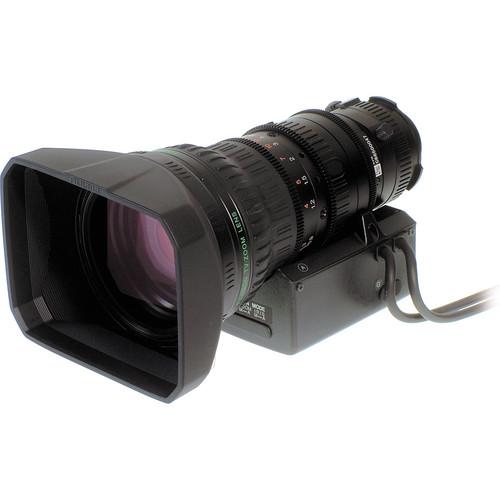

Product description Specially made for remote control applications, the Fujinon 8.5-170mm f/1.8-2.7 eXceed 2/3" Teleconference Bayonet Lens is from their videoconferencing series. Fujinon designed this lens with a a versatile, 20x zoom range covering focal length range of 8.5mm at the wide end all the way to 170mm at the telephoto end. The wide 8.5mm focal length allows you to keep multiple subjects in the frame while the 170mm focal length allows for focusing on a single subject. The zoom, focus, and iris controls are accessible via separately available analog remote control.The lens's internal focusing mechanism maintains a constant lens length when focusing or zooming, keeping the balance of the lens consistent. This consistency is an important consideration when mounting this lens on electronic pan / tilt devices. Fujinon designed this lens to be lightweight at 3.4 pounds, preventing unnecessary wear on the motors used for camera movement. These features are useful for teleconferencing, security, or other applications requiring lens remote control. - Breakdown of Fujinon Lens Name
-
- XA - eXceed series 2/3" HD Format
- 20sx - Zoom ratio
- 8.5 - Focal length at wide end
- B - Bayonet mount
- E - 2x Extender
- MD - Remote control
- DSD - Remote control drive unit / Video control (zoom, focus, iris)
- Remote Servo Control
- The servo on this lens is designed to be controlled remotely. The servo unit is placed underneath the lens to improve balance while mounted on electronic pan / tilt mechanisms.
In the Box Fujinon XA20sx8.5BEMD-DSD 8.5-170mm f/1.8-2.7 eXceed 2/3" Teleconference Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon XA20sx8.5BEMD-DSD 8.5-170mm f 1.8-2.7 eXceed 2 3" Teleconference Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 8.5-170mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 8.5 to 170mm
With Extender: 17 to 340mm | | Built-In Extender | None | | Zoom Ratio | 20x | | Angle of View | 16:9
Wide: 58.85 x 35.18° (H x V)
Tele: 3.23 x 1.82° (H x V)
16:9 With 2x Extender
Wide: 31.5 x 18.02° (H x V)
Tele: 1.62 x 0.9° (H x V) | | Maximum Aperture | f/1.8 to 2.7 | | Filter Thread | M82 x 0.75 mm | | Minimum Focus Distance from Image Plane | 3.6' / 1.1 m | | Minimum Object Distance | 3' / 0.9 m | | Certifications | RoHS, as per Manufacturer | | Dimensions | 3.3 x 7.9" / 85.0 x 200.0 mm (
