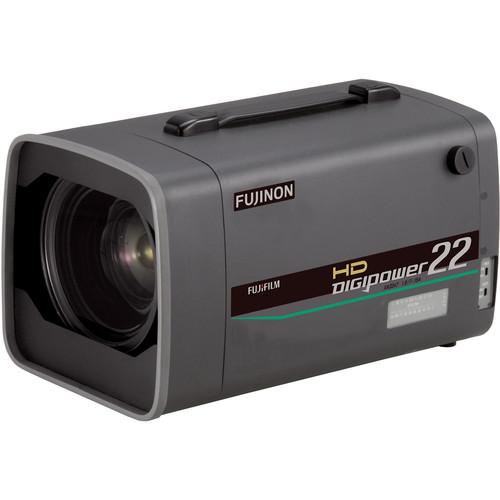

User Manual for Fujinon XA22x7BES 22x Box Type 2 3" Compact HDTV Lens Click to enlarge the picture
Contents of the user manual for the Fujinon XA22x7BES 22x Box Type 2
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon XA22x7BES 22x Box Type 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The XA22x7BES 22x Box Type 2/3" Compact HDTV Lens by Fujinon is an industrial zoom lens suitable for sports and similar long range viewing environments. Along with high quality optics, this lightweight lens incorporates a gear drive mechanism which, in contrast to a belt drive motor, ensures smooth and precise functionality. With its fully boxed housing design, this lens also offers quiet operation. A removable shroud makes it easy to access internal components during servicing.
This lens features minimal focus breathing, which will reduce the image resizing effect that can occur when the focus is adjusted. Other important features include an external port with 14-bit control for interfacing with robotics, and a 127mm front filter thread for adding protective and image control filters.
This lens incorporates all the benefits of Fujinon's DIGI POWER digital controls, including Fujinon's exclusive F.I.N.D. system which performs self-diagnostic analysis to evaluate electro-mechanical lens operational parameters. An LED readout, located on the outside of the lens, provides information on zoom, iris, and extender settings. On account of its smaller and lightweight design, this does not require heavy duty support and can be quickly attached to standard ENG-capable tripods, studio pedestals and robotics systems using the provided easy-to-mount support bracket.
With the addition of an ACM-17 adapter, this lens can also be used with JVC 1/3" ProHD cameras. This configuration will result in a 1.97x magnification increase in the focal length of lens. - Compact and lightweight lens for ENG cameras
- Incorporates a belt drive for zoom and focus, as opposed to gear-driven design, enabling very smooth and precise operation
- Removable shroud for easy access during installation and maintenance
- Minimal focus breathing reduces image resizing effects during focus adjustments
- 127mm front filter thread for adding light control and protective filters
- Ample space provided between back of the lens and the front of the camera for access to camera function switches
- Incorporates Fujinon's exclusive F.I.N.D. system for evaluation of electro-mechanical lens operational parameters
- External LED indicator provides zoom, iris, and extender information
In the Box Fujinon XA22x7BES 22x Box Type 2/3" Compact HDTV Lens Lens Support Bracket 2-year Parts & Labor (Mechanical) Warranty / 1-year (Electrical) Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon XA22x7BES 22x Box Type 2 3" Compact HDTV Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 7-154mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 7 to 154mm
With Extender: 14 to 308mm | | Built-In Extender | 2x | | Zoom Ratio | 22x | | Angle of View | Wide: 68.82 x 42.12° (H x V)
Tele: 3.4 x 2° (H x V)
With 2x Extender
Wide: 37.82 x 21.8° (H x V)
Tele: 1.78 x 1° (H x V) | | Maximum Aperture | f/1.8 to 2.9 (T2 to 4.4) | | Filter Thread | M127 x 0.75 mm | | Minimum Focus Distance from Image Plane | 46" / 1.17 m | | Minimum Object Distance | 31.5" / 0.8 m | | Dimensions | 13.3 x 7.0 x 7.3" / 340.0 x 179.0 x 187.0 mm (L x W x H) | | Weight | 14.5 lb / 6.6 kg |
