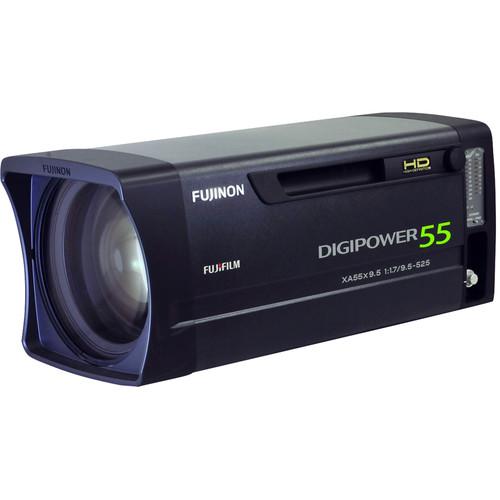

User Manual for Fujinon XA55X9.5BESM 9.5-525mm f 1.7-2.9 2 3" EFP Box Lens Click to enlarge the picture
Contents of the user manual for the Fujinon XA55X9.5BESM 9.5-525mm f 1.7-2.9 2
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon XA55X9.5BESM 9.5-525mm f 1.7-2.9 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon 9.5-525mm f/1.7-2.9 2/3" Bayonet EFP Box Lens is a high zoom ratio lens that lends itself to covering sporting events and other large-scale productions. Its 55x zoom range can extend from normal to super-telephoto focal lengths. The 2x Extender doubles your focal length to achieve tighter framing on your subject.The box housing is specially designed to prevent fogging of the lens elements during changes in temperature or humidity allowing the lens to be used outdoors in inclement weather conditions. In addition to being weather sealed, this lens is secured against dust and other small particles that might harm the lens.Since the lens incorporates Fujinon's DigiPower Digital Servo technology, it can provide precise, repeatable digital control from studio paint boxes, PC's, and traditional analog controls. Digipower also permits setting custom speeds for zoom and focus, zoom limiting, and other servo parameters. Diagnostics and advanced controls can also be accessed via an RS-232 port. - Breakdown of Fujinon Lens Name
-
- XA - 2/3" Sensor Format
- 99x - Zoom Ratio
- 8.4 - Focal length at wide end
- B - Bayonet mount
- E - (2x) Extender
- SM - Interchangeable Servo / Manual Module
- Environmental Sealing
- This box lens is sealed against dust and features anti-fogging technology for use in less than ideal weather conditions.
- Integrated Optical Stabilizer
- A special "optical shift system" moves elements inside the lens barrel to counteract vibration and stabilize the image and maintain sharpness.
- DigiPower
- Using a 32-bit RISC processor in the lens, a CPU in each servo, optical encoders, and high-speed serial communication devices, DigiPower technology provides 16-bit accuracy in zoom and focus control as well as a variety of other functions such as the following:
- Quick Zoom - Lets you zoom to full telephoto in under a second in order to check focus
- Zoom / Focus 3 Fine Mode Select - Provides three levels of sensitivity for the zoom and focus response
- One Shot Preset - Preset zoom and focus for instant recall at any time
- FIND System - Connects to PC software via RS-232 for a graphical user interface with lens control and advanced diagnostic functionality
- Virtual Connector - Interface connector which sends positional data feedback to virtual control systems
In the Box Fujinon XA55X9.5BESM 9.5-525mm f/1.7-2.9 2/3" EFP Box Lens Lens Support Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon XA55X9.5BESM 9.5-525mm f 1.7-2.9 2 3" EFP Box Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 9.5-525mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 9.5 to 525mm
With Extender: 19 to 1050mm | | Built-In Extender | None | | Zoom Ratio | 55x | | Angle of View | 16:9
Wide: 53.57 x 31.57° (H x V)
Tele: 1.05 x 0.58° (H x V)
16:9 With 2x Extender
Wide: 28.33 x 16.15° (H x V)
Tele: 0.53 x 0.3° (H x V) | | Maximum Aperture | f/1.7 to 2.9 (T85 to 3.61) | | Minimum Focus Distance from Image Plane | 12.8' / 3.9 m | | Minimum Object Distance | 9.8' / 3 m | | Certifications | RoHS, as per Manufacturer | | Dimensions | 34.4 x 10.0 x 10.0" / 876.0 x 253.0 x 253.0 mm (L x W x H) | | Weight | 55 lb / 25 kg | | | | Package Weight | 80.8 lb | | Box Dimensions (LxWxH) | 50.0 x 25.0 x 21.0" |
