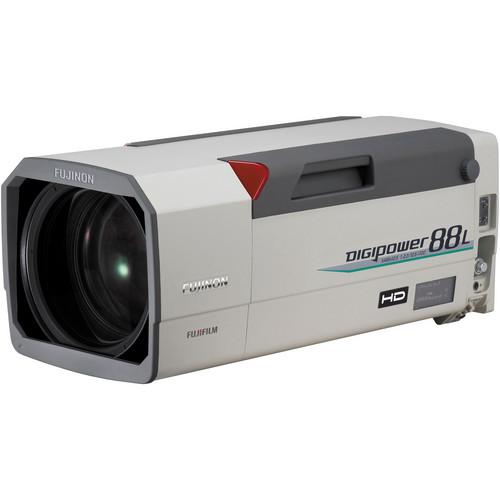

User Manual for Fujinon XA88X12.5BESM HDTV Lens for 2 3" Cameras Click to enlarge the picture
Contents of the user manual for the Fujinon XA88X12.5BESM HDTV Lens for 2
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon XA88X12.5BESM HDTV Lens for 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon XA88X12.5BESM HDTV Lens for 2/3" Cameras has a focal length of 8.8-777mm, for a tremendous 88x optical zoom ratio. Moreover, a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.7 at 8.8-348mm and stops down to f/3.8 at 777mm. The lens is manual/servo interchangeable, and an RS232 connector in the lens provides a connection between the lens and a PC, or other control device, for external control. This function has made it possible to control the lens functions with the high degree of accuracy and reliability needed for virtual studio and other robotic applications.
Advanced components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions. Fujinon's Precision Focus Assist technology can maintain focus at any zoom position from the narrowest to the widest angle, and Aspheric Technology as well as the newly developed EBC coating reduce ghost and flare and increase light transmission.
A proprietary anti-fogging design minimizes lens fogging and reduces downtime due to moisture, and internal focusing minimizes the effects of lens breathing, ensuring a more consistent focal length when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. Finally, the Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating various electronic and mechanical parameters. - 8.8-777mm wide to super telephoto 88x zoom lens for 2/3" cameras
- Fast maximum aperture f/1.7 at 8.8-348mm and f/3.8 at 777mm
- Manual/Servo interchangeable, with a CPU in each servo
- RS232 remote control and 32-bit RISC processor
- Precision Focus Assist maintains focus at any zoom position
- Aspheric technology and EBC coating improves transmission and reduces flare
- Anti-fogging and dust proof design
- Focused Intelligent Network Diagnosis
In the Box Fujinon XA88X12.5BESM HDTV Lens for 2/3" Cameras 2-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon XA88X12.5BESM HDTV Lens for 2 3" Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 12.5-1100mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 12.5 to 1100mm
With Extender: 25 to 2200mm | | Built-In Extender | 2x | | Zoom Ratio | 88x | | Angle of View | 16:9
Wide: 57.17 x 34.05° (H x V)
Tele: 0.7 x 0.4° (H x V) | | Maximum Aperture | f/1.7 to 3.8 (T9 to 4.2) | | Dimensions | 10.4 x 10.6 x 24.6" / 265.0 x 270.0 x 625.0 mm (L x W x H) | | Weight | 57.3 lb / 26 kg |
