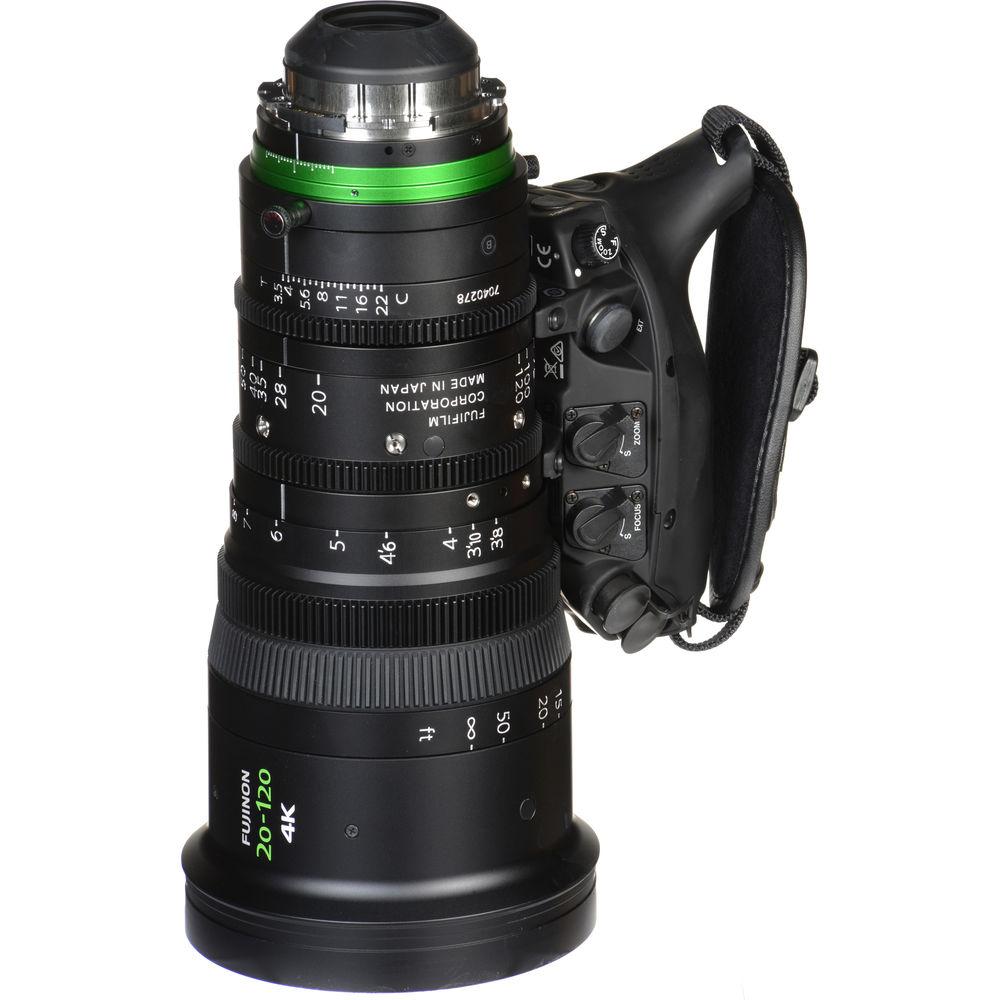

Product description Cinema Lens Care and Maintenance Read More The Fujinon XK20-120mm T3.5 Cabrio Premier Lens is a wide to telephoto zoom lens for Super 35mm cameras in PL mount. The focus, zoom, and iris barrels are geared with standard 0.8 film pitch, which provides an interface for the removable ENG-style digital drive unit. The rear PL mount features electrical contacts for sharing Arri LDS and Cooke /i Technology lens data with the camera.
The detachable drive unit is an ENG-style handgrip with a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible, third party manufacturers. When the drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears. Power is provided by either an external connector or the PL mount's interface. A removable lens support is included with the lens. - T3.5 to T22 aperture with 9 iris blades for attractive bokeh
- Detachable, ENG-style, digital drive unit with zoom rocker switch
- Industry standard 0.8 film MOD gears for focus, zoom, and iris control
- Power and data/control connections to the camera via connectors in the rear of the lens.
- 16-bit encoding supports sharing LDS and /i Technology lens data with the camera
- The barrel markings in metric or imperial measurements are switchable in the field
- Luminous barrel markings make it easier to read measurements
- 200° focus barrel rotation and 120° zoom rotation
- No shims are required to adjust the flange focal distance
- Macro focus function available
In the Box Fujinon XK20-120mm T3.5 Cabrio Premier Lens (PL Mount) Lens Hood (Rectangular) Lens Hood Cap (Rectangular) Lens Cap PL Mount Cap Removable Lens Support Removable Servo Unit Servo Drive Storage Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon XK20-120mm T3.5 Cabrio Premier Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon XK20-120mm T3.5 Cabrio Specs | Focal Length | 20 to 120mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T3.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 63 to 11° | | Minimum Focus Distance from Image Plane | 2.8' / 85 cm | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 114 mm | | Focus Scales | Metric, Imperial | | Focus Rotation | 200° | | Zoom Rotation | 90° | | Zoom Ratio | 6x | | Length | 3.9" / 226.0 mm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 18.9 x 14.3 x 13.0" |
