User Manual for Fujinon XK20-120mm T3.5 Cabrio Premier Lens Click to enlarge the picture
Contents of the user manual for the Fujinon XK20-120mm T3.5 Cabrio Premier Lens
- Product category: Digital Cine Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Digital Cine Lenses
 |
User manual for the Fujinon XK20-120mm T3.5 Cabrio Premier Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|

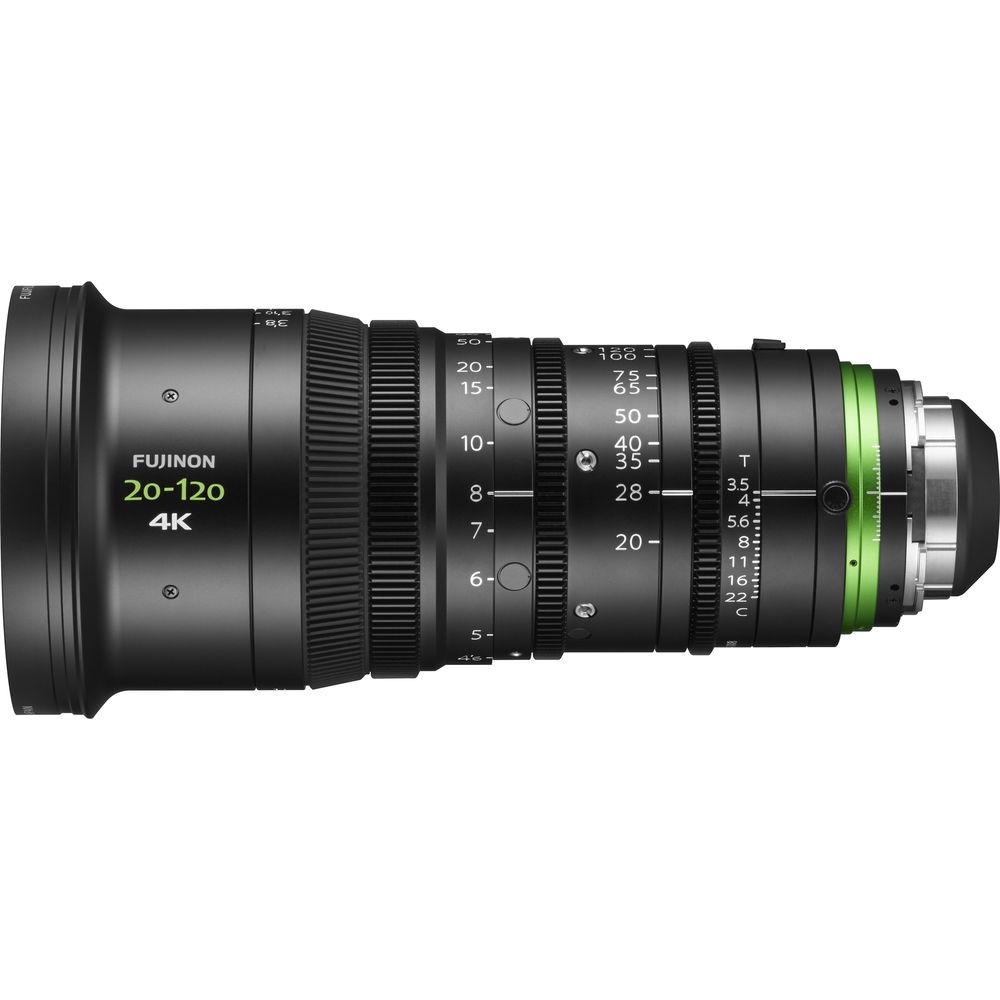

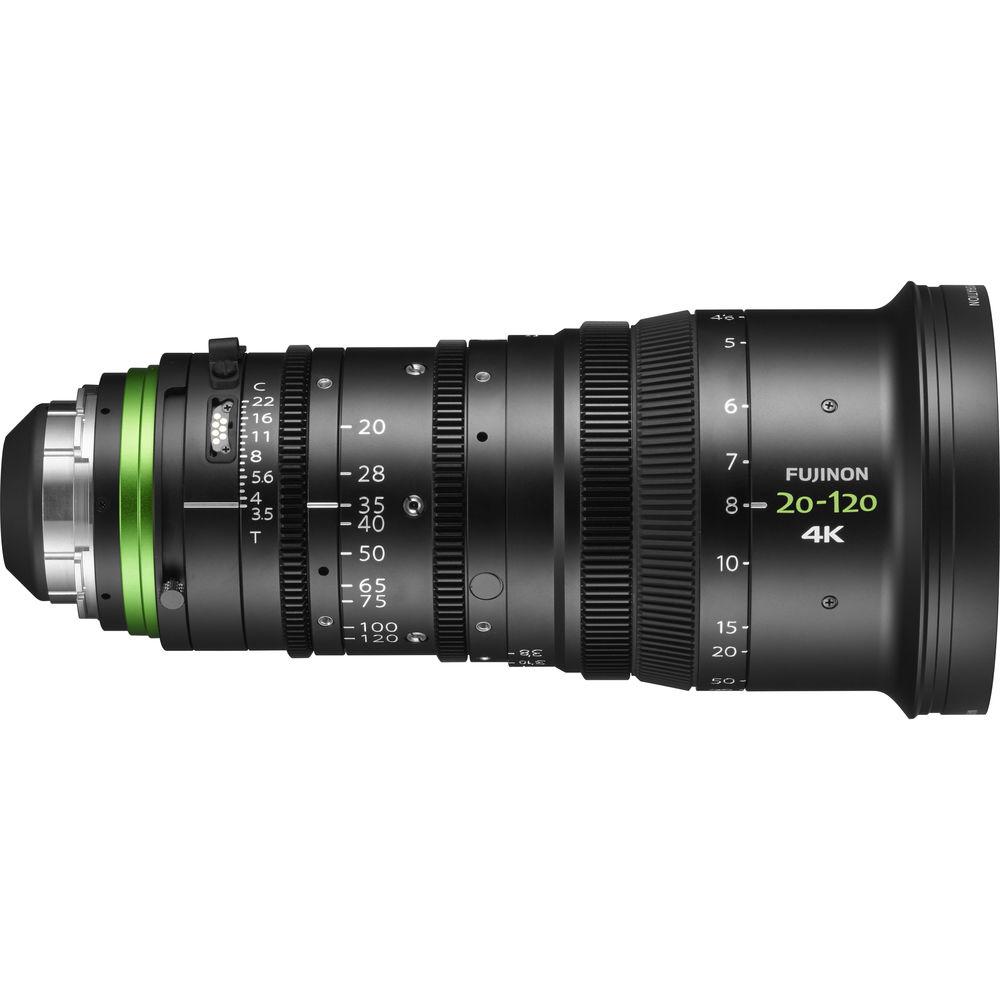

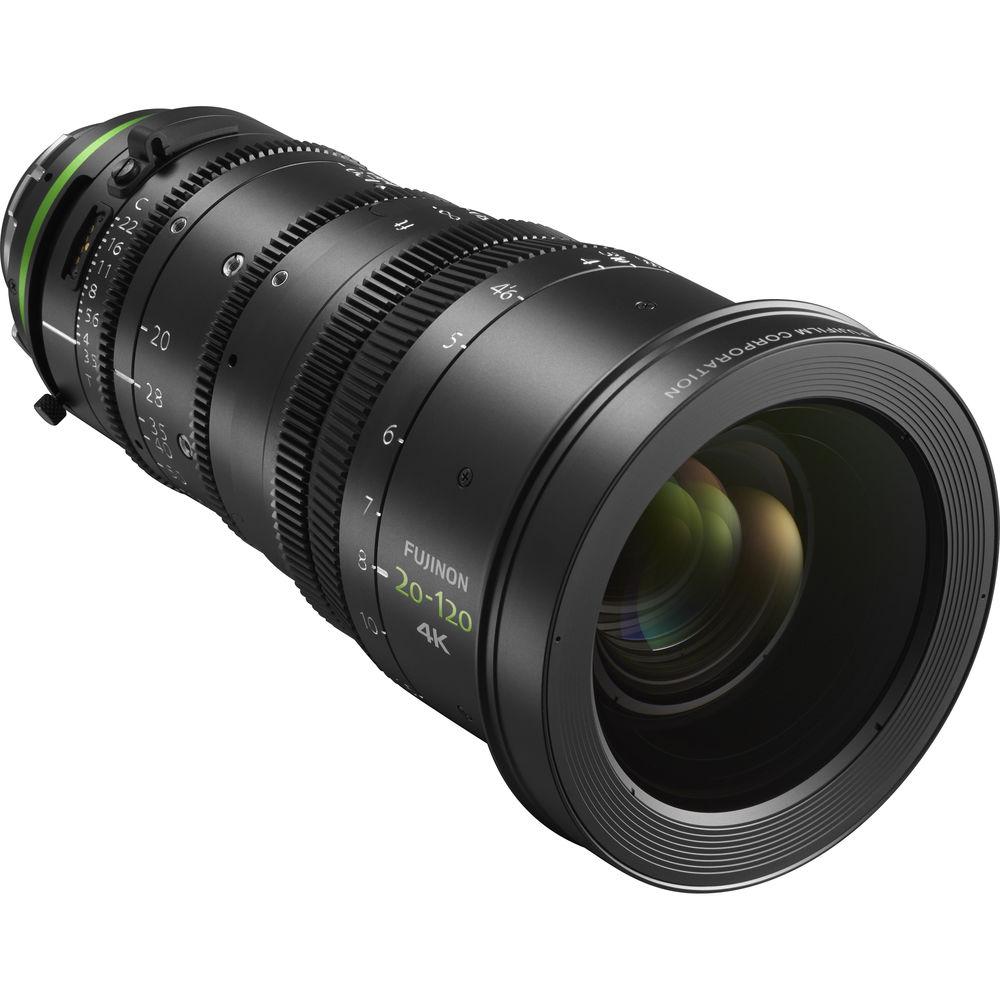

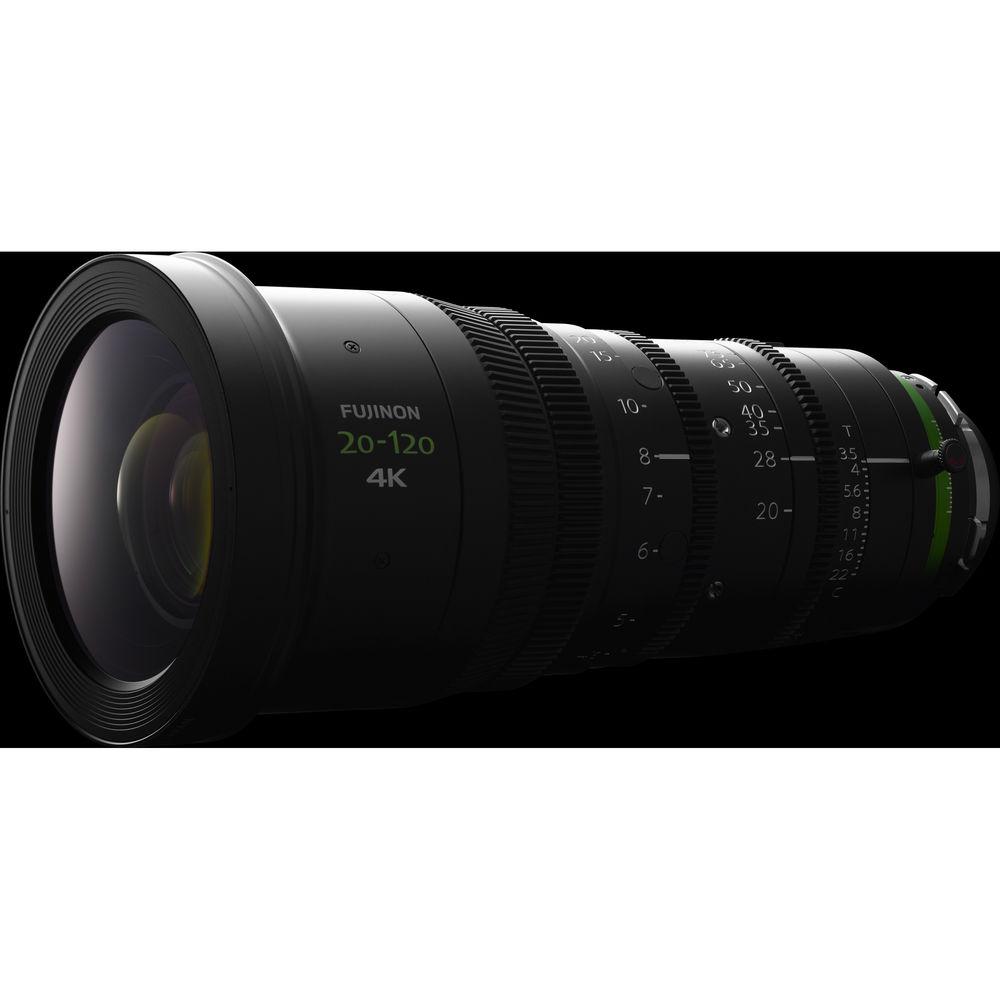

Product description Cinema Lens Care and Maintenance Read More This Fujinon XK20-120mm T3.5 Cabrio Premier Lens is the lens only and does not include the servo zoom unit, which you can source separately. It is a wide-to-telephoto zoom lens for Super 35mm cameras and features a PL mount. The focus, zoom, and iris barrels are geared with standard 0.8 Mod gears, which provides an interface for the optional ENG-style digital drive unit.
The rear PL mount features electrical contacts for sharing ARRI LDS and Cooke /i Technology lens data with the camera; however, you need the optional digital drive unit to activate these contacts. An included rectangular lens hood provides flare protection and is useful for run-and-gun or ENG-style shooting. A removable lens support is included with the lens. - T3.5 to T22 aperture with nine iris blades for attractive bokeh.
- Industry-standard 0.8 film Mod gears for focus, zoom, and iris control.
- Power and data/control connections to the camera via connectors in the rear of the lens.
- 16-bit encoding supports sharing LDS and /i Technology lens data with the camera.
- The barrel markings are imperial measurements.
- Luminous barrel markings make it easier to read measurements.
- 200° focus barrel rotation and 120° zoom rotation.
- No shims are required to adjust the flange focal distance.
- Macro focus function available.
Optional Drive Unit - The optional detachable drive unit is an ENG-style handgrip with a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible, third party manufacturers. When the drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears.
- Power is provided by either an external connector or the PL mount's interface.
- LDS and i/Technology Lens Data contacts in the PL mount become active
In the Box Fujinon XK20-120mm T3.5 Cabrio Premier Lens (PL Mount, Lens Only, No Servo Motor) Lens Hood (Rectangular) Lens Hood Cap (Rectangular) Lens Cap PL Mount Cap Removable Support Foot/Lens Support Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon XK20-120mm T3.5 Cabrio Premier Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon XK20-120mm T3.5 Cabrio Specs | Mount Type | PL | | Format | Super 35 | | Image Circle | Covers 24.84 x 13.97 mm | | Focal Length | 20 - 120mm | | Zoom Ratio | 6x | | Aperture | Max: T3.5
Min: T22 | | Iris Blades | 9 | | Gear Mod | 0.8 | | Focus Rotation | 200° | | Zoom Rotation | 90° | | Barrel Markings | Imperial | | M.O.D. From Image Plane | 3.8" / 9.7 cm | | Minimum Focus Distance | 2.8' / 85 cm | | Object Dimensions at M.O.D. (16:9) | 20 mm: 43.7 x 24.6" / 110.9 x 62.4 cm
120 mm: 7.2 x 4.0" / 182.0 x 102.0 mm | | Angular Field of View (16:9) | 20 mm: 63°41' × 38°30'
120 mm: 11°49' × 6°40' | | Dimensions (Ø x L) | 4.5 x 8.9" / 114.0 x 226.0 mm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 16.9 x 12.1 x 10.3" |
