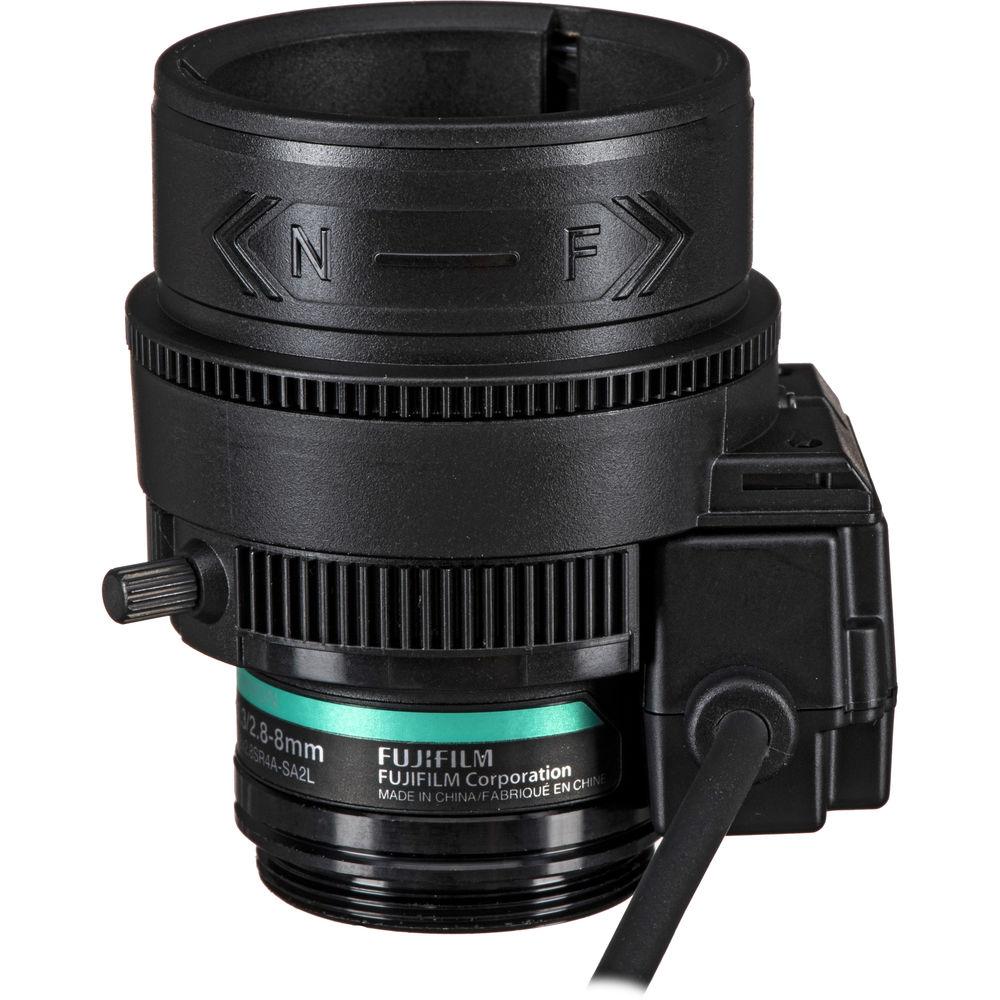

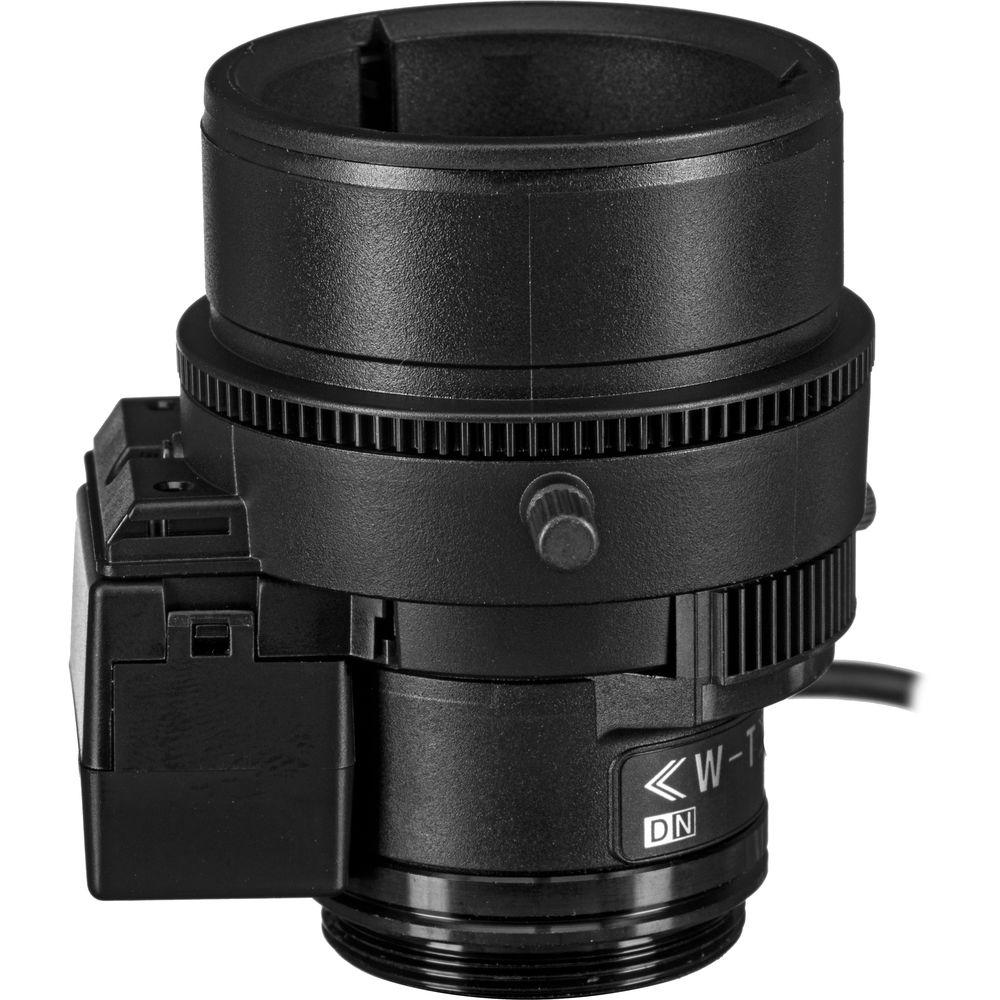

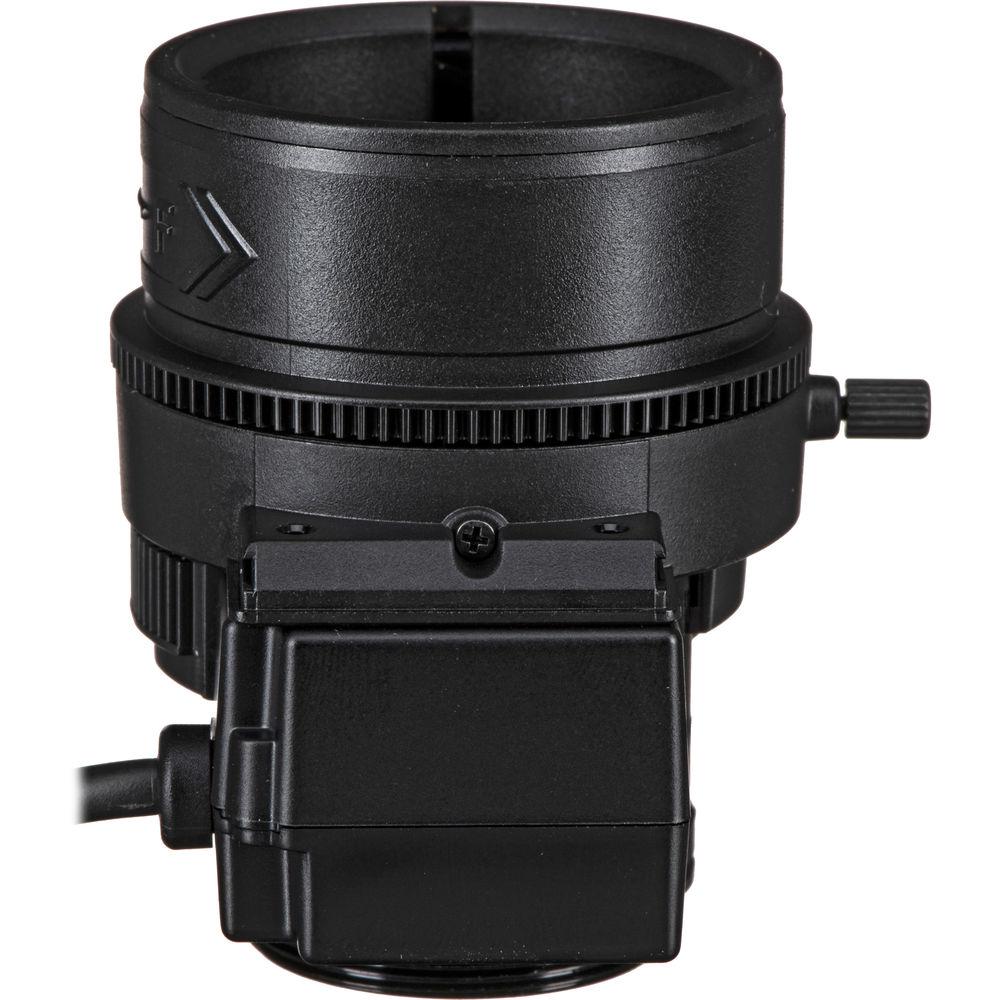

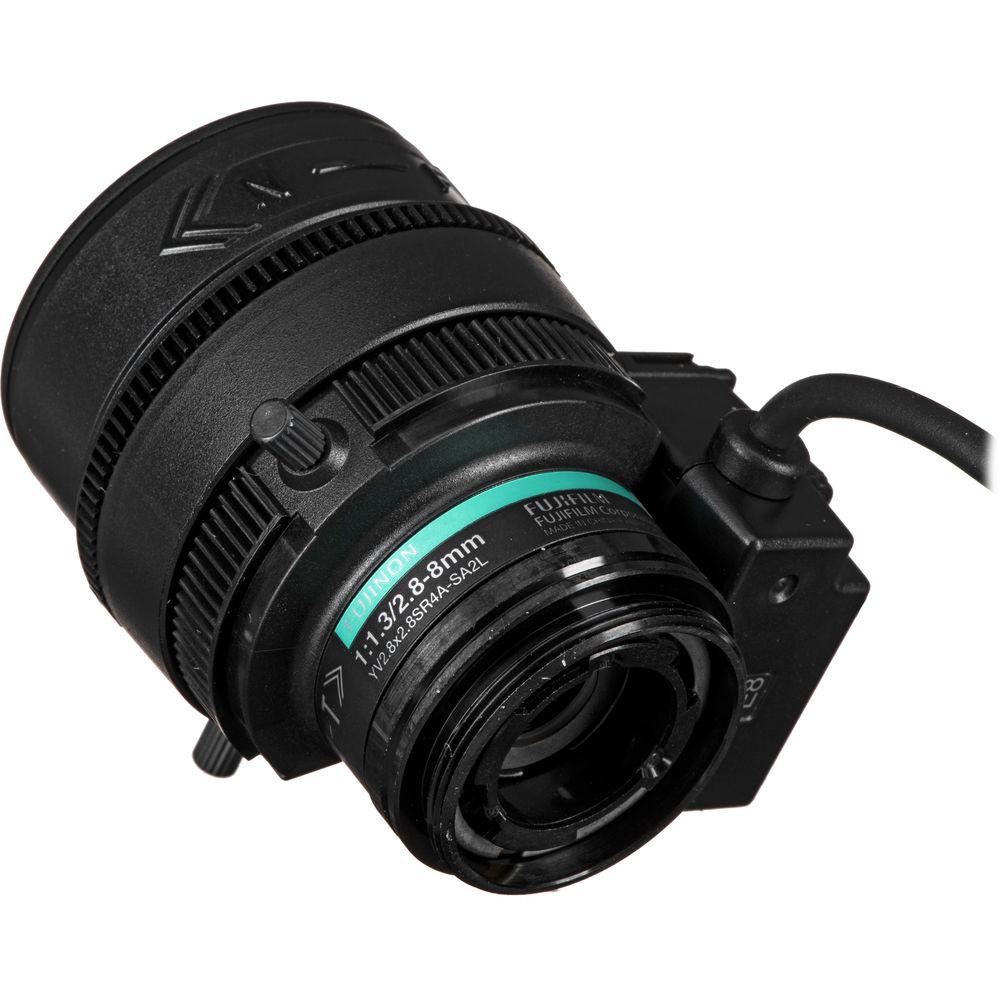

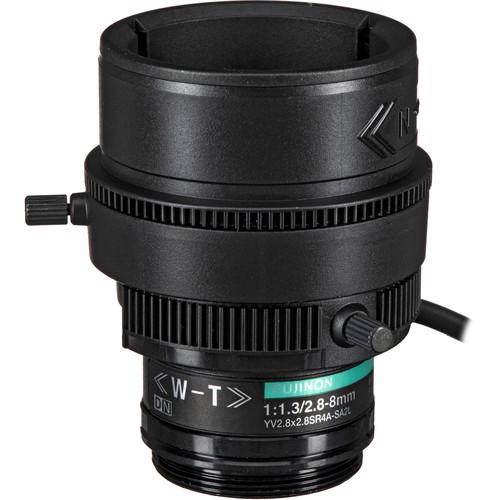

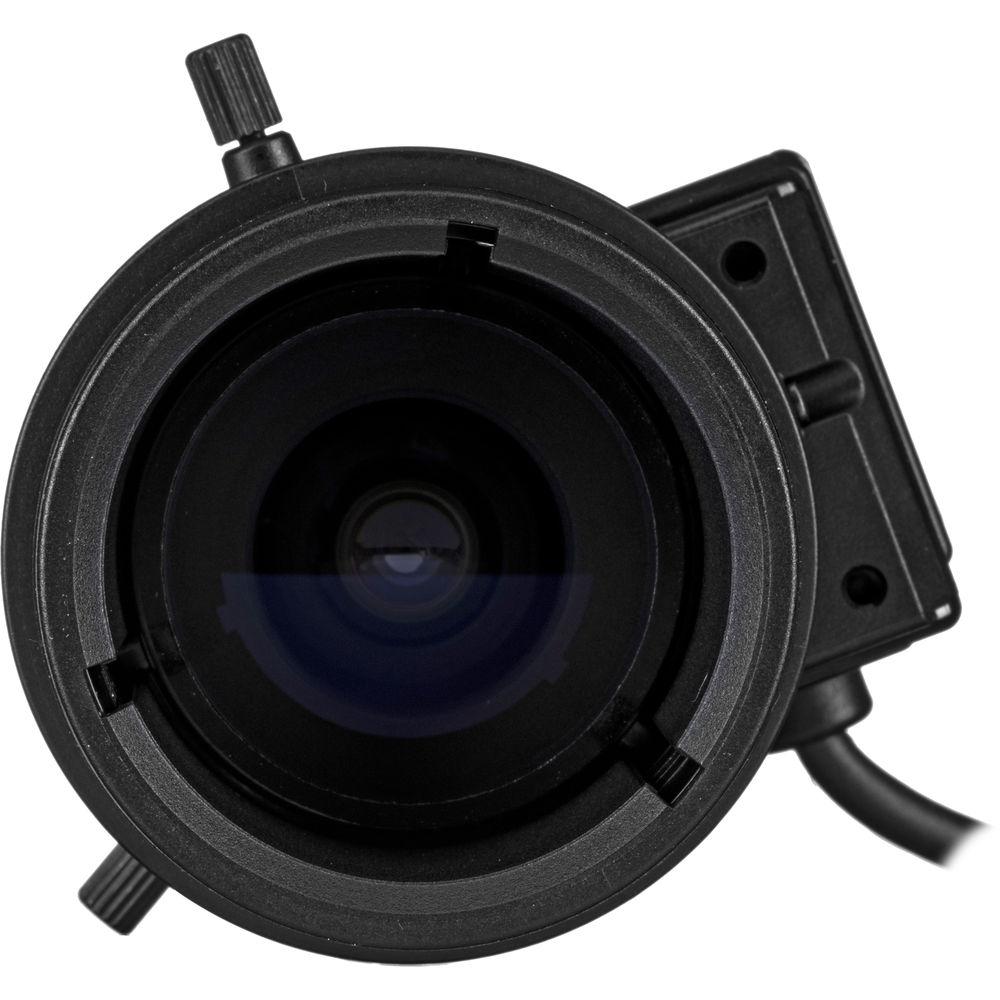

User Manual for Fujinon YV2.8X2.8SR4A-SA2L CS-Mount 2.8-8mm Varifocal Lens with Long Cable Click to enlarge the picture
Contents of the user manual for the Fujinon YV2.8X2.8SR4A-SA2L CS-Mount 2.8-8mm Varifocal Lens
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
 |
User manual for the Fujinon YV2.8X2.8SR4A-SA2L CS-Mount 2.8-8mm Varifocal Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The YV2.8X2.8SR4A-SA2L from Fujinon uses a CS mount to attach to cameras up to 3MP in resolution with 1/2.7", 1/3", and 1/4" sensors. This 2.8-8mm varifocal lens has manual zoom and focus operation, along with a metal mount for durability. - Aspherical lens designed for use with 1/2.7", 1/3", and 1/4" sensors
- 1' to infinity focusing range
In the Box Fujinon YV2.8X2.8SR4A-SA2L CS-Mount 2.8-8mm Varifocal Lens with Long Cable 230mm Long Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon YV2.8X2.8SR4A-SA2L CS-Mount 2.8-8mm Varifocal Lens with Long Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon YV2.8X2.8SR4A-SA2L Specs | Imager Size | Compatible with 1/2.7 to 1/4" sensors | | Mount Type | CS | | Focal Length | 2.8-8mm | | Optical Zoom | 2.8x | | Aperture Range | f/1.3 to T360 (equivalent to f/360) | | Iris Operation | DC auto iris | | Focus Operation | Manual | | Zoom Operation | Manual | | Field of View | 1/2.7" Type:
Horizontal: 112-38°
Vertical: 81-29°
With 16:9 Aspect Ratio:
Horizontal: 124-42°
Vertical: 65-23°
1/3" Type:
Horizontal: 100-35°
Vertical: 73-26°
With 16:9 Aspect Ratio:
Horizontal: 111-38°
Vertical: 59-21°
1/4" Type:
Horizontal: 73-26°
Vertical: 54-19°
With 16:9 Aspect Ratio:
Horizontal: 80-28°
Vertical: 44-16° | | Minimum Object Distance (M.O.D.) | 1' / 0.3 m | | Focusing Range | 1' to infinity / 0.3 m to infinity | | Dimensions (Diam. x L) | 1.6 x 2.13" / 40.8 x 54.1 mm | | Weight | 2 oz / 60 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.1 x 2.5 x 2.3" |
