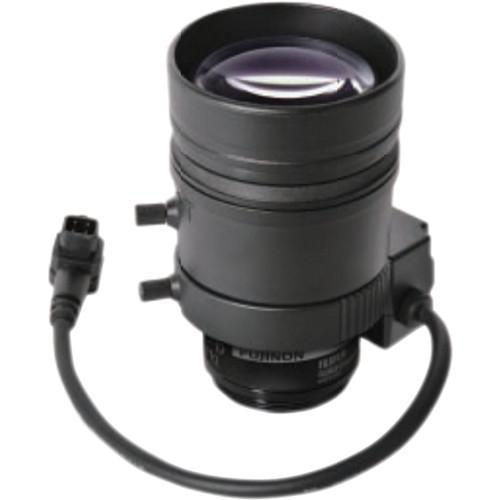

User Manual for Fujinon YV3.3x15SA-SA2 CS-Mount 15 to 50mm 3.3x Optical Zoom Lens for CCTVs Click to enlarge the picture
Contents of the user manual for the Fujinon YV3.3x15SA-SA2 CS-Mount 15 to 50mm
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon YV3.3x15SA-SA2 CS-Mount 15 to 50mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The YV3.3x15SA-SA2 CS-Mount 15 to 50mm 3.3x Optical Zoom Lens for CCTVs from Fujinon is well suited for high-quality image capturing and offers optical performance support up to 3MP. With a focal length of 15 to 50mm, a wide area is covered during surveillance. The high-accuracy aspherical construction, and low-dispersion, high refractive-index glass enhance optical performance. With the built-in ND filter, output is enhanced for high-sensitivity cameras. In the Box Fujinon YV3.3x15SA-SA2 CS-Mount 15 to 50mm 3.3x Optical Zoom Lens for CCTVs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon YV3.3x15SA-SA2 CS-Mount 15 to 50mm 3.3x Optical Zoom Lens for CCTVs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon YV3.3x15SA-SA2 Specs | Mount | CS | | Focal Length | 15 to 50 mm (3.3x) | | Focus | Manual | | Iris Range | F1.5 - T360 (Equivalent to F360) | | Iris | Auto (DC type) When power is turned off, iris will automatically close. | | Zoom | Manual | | Back Focal Distance | 7.70 mm in air | | Exit Pupil Position | -36 mm | | Object Dimensions at M.O.D. | 1/3"
Wide: 271 × 202 mm, Tele: 87 × 66 mm
1/4"
Wide: 202 × 151 mm, Tele: 66 × 49 mm | | Object Dimensions at M.O.D. (16:9) | 1/3"
Wide: 296 × 165 mm, Tele: 95 × 54 mm
1/4"
Wide: 220 × 123 mm, Tele: 72 × 40 mm | | Angular Field of View | 1/3"
Wide: 18°08' × 13°34', Tele: 5°35' × 4°12'
1/4"
Wide: 13°34' × 10°10', Tele: 4°12' × 3°10' | | Angular Field of View (16:9) | 1/3"
Wide: 19°46' × 11°40', Tele: 6°04' × 3°26'
1/4"
Wide: 14°47' × 8°18', Tele: 4°34' × 2°35' | | Focusing Range | Infinity to 0.8 m (from front of the lens) | | Coil Resistance | Drive Coil: 190 Ω
Damping Coil: 500 Ω | | Current Consumption | 23 mA (Maximum) at 4 VDC | | Weight | 2.11 oz (60.00 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.9 x 2.7 x 1.9" |
