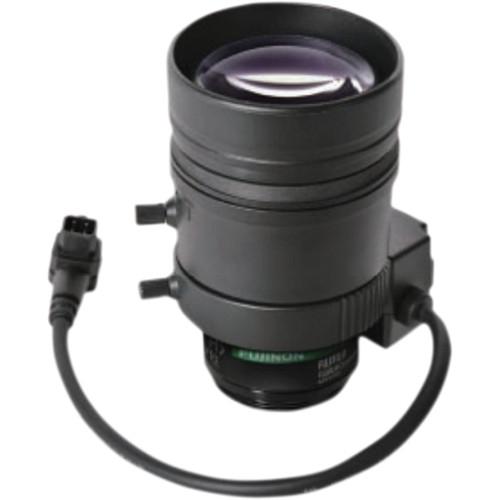

Product description Compatible with 1/2.7", 1/3", and 1/4" cameras, the CS-Mount 2.8-12mm Varifocal Lens from Fujinon can be used with up to 3MP resolutions for capturing high-definition images. The lens' 2.2-6mm focal length produces a 2.7x zoom for use with wide and tele applications, enabling you to use the lens in a variety of scenarios. Furthermore, an f/1.3 aperture allows for maximum light capture so that you can use the lens in low-light environments.
Designed with an aspheric lens, the camera is able to achieve clear images up to the periphery of your field of view. There is a built-in ND filter which supports high sensitivity cameras, and the lens features an attached 9.1" long cable with a 4-pin plug for iris control. Equipped with a CS-mount, the lens is compatible with a broad range of cameras, and the mount is constructed of metal for strength and durability. - 2.2-6mm focal length with 2.7x zoom for use in both wide and tele applications
- Designed for use with 1/2.7", 1/3", and 1/4" cameras up to 3MP for high-quality images
- f/1.3 wide aperture optimizes light capture for clear images in low-light settings
- Designed with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass
- Built-in ND filter (used in T360 camera) supports high sensitivity cameras
- Metal CS-mount for durability and versatile compatibility
- Integrated 9.1" long cable
In the Box Fujinon YV3.3x15SR4A-SA2L CS-Mount 2.2-6mm Varifocal Lens Iris Control Cable (9.1") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon YV3.3x15SR4A-SA2L CS-Mount 2.2-6mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon YV3.3x15SR4A-SA2L Specs | Mount | CS | | Focal Length | 2.2-6mm | | Focus | Manual | | Iris Range | f/1.3 to T360
When power is turned off, iris will automatically close | | Iris | DC Auto Iris | | Zoom | 2.7x manual | | Back Focal Distance | 8.33 mm in air | | Exit Pupil Position | 116 mm from the image plane | | Object Dimensions at M.O.D. (4:3) | 1/2.7"
Wide: 1398 x 731 mm, Tele: 299 x 218 mm
1/3"
Wide: 1080 x 625 mm, Tele: 269 x 197 mm
1/4"
Wide: 625 x 417 mm, Tele: 197 x 146 mm | | Object Dimensions at M.O.D. (16:9) | 1/2.7"
Wide: 1896 x 532 mm, Tele: 329 x 176 mm
1/3"
Wide: 1358 x 466 mm, Tele: 296 x 159 mm
1/4"
Wide: 718 x 327 mm, Tele: 216 x 119 mm | | Angular Field of View (4:3) | 1/2.7"
Wide: 132°51' x 100°22', Tele: 50°26' x 37°56'
1/3"
Wide: 121°04' x 91°20', Tele: 45°51' x 34°28'
1/4"
Wide: 91°20' x 68°43', Tele: 34°28' x 25°53' | | Angular Field of View (16:9) | 1/2.7"
Wide:144°17' x 82°13', Tele: 54°53' x 31°01'
1/3"
Wide: 131°34' x 74°46', Tele: 49°55' x 28°11'
1/4"
Wide: 99°19' x 56°19', Tele: 37°31' x 21°12' | | Focusing Range | Infinity to 0.3 m | | Dimensions | Not specified by manufacturer | | Weight | 2.64 oz (75 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.9 x 2.7 x 2.7" |
