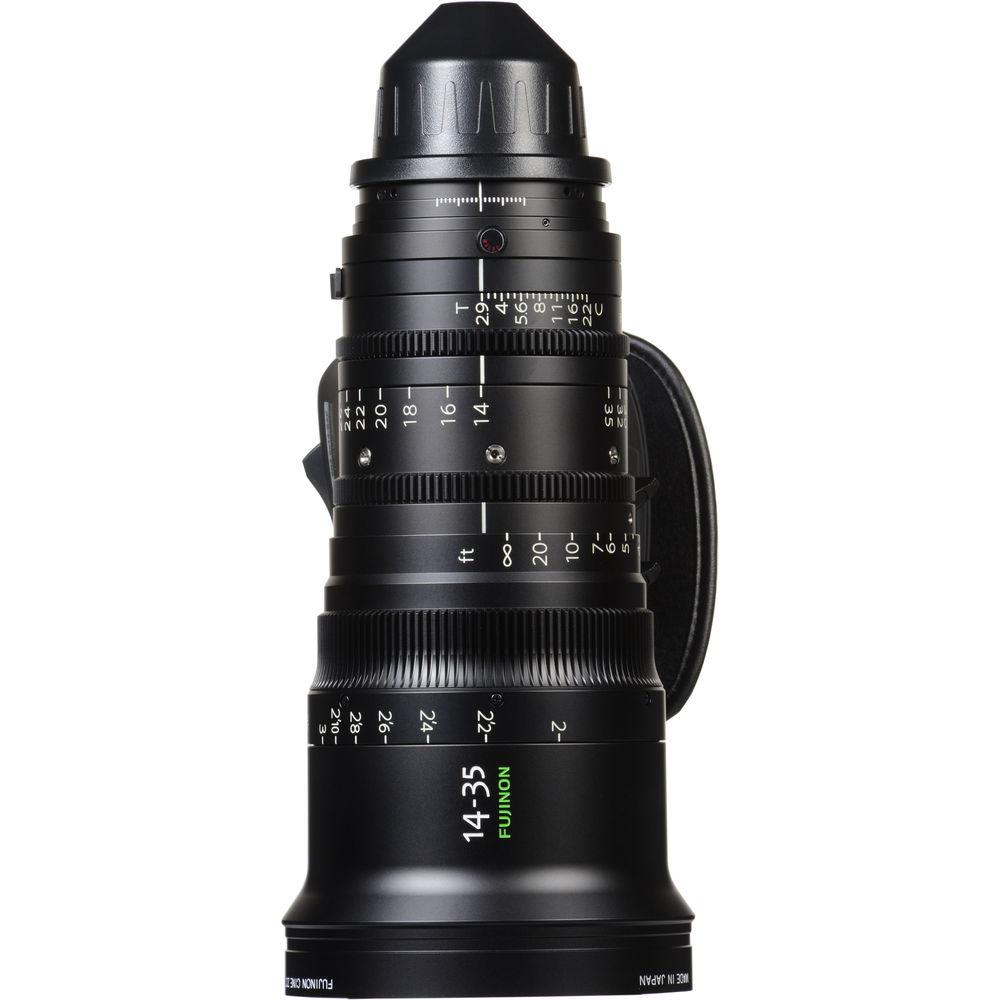

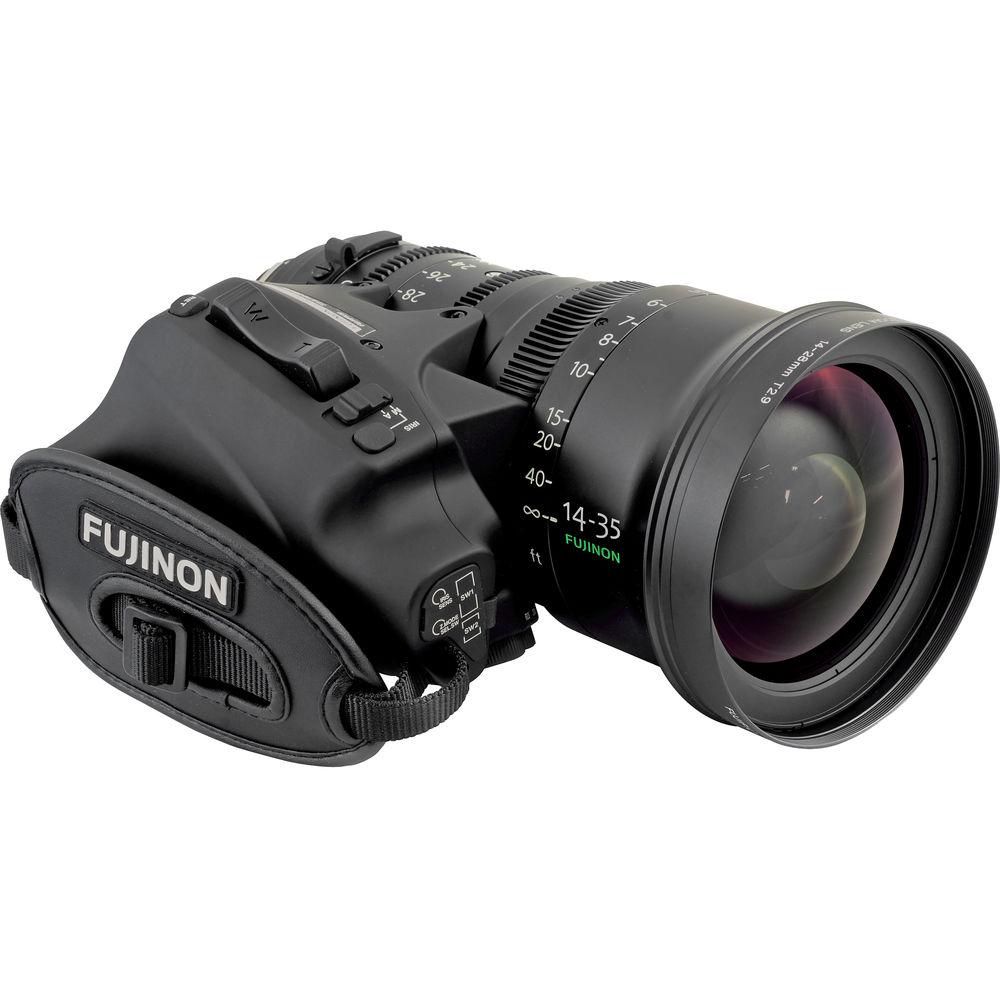

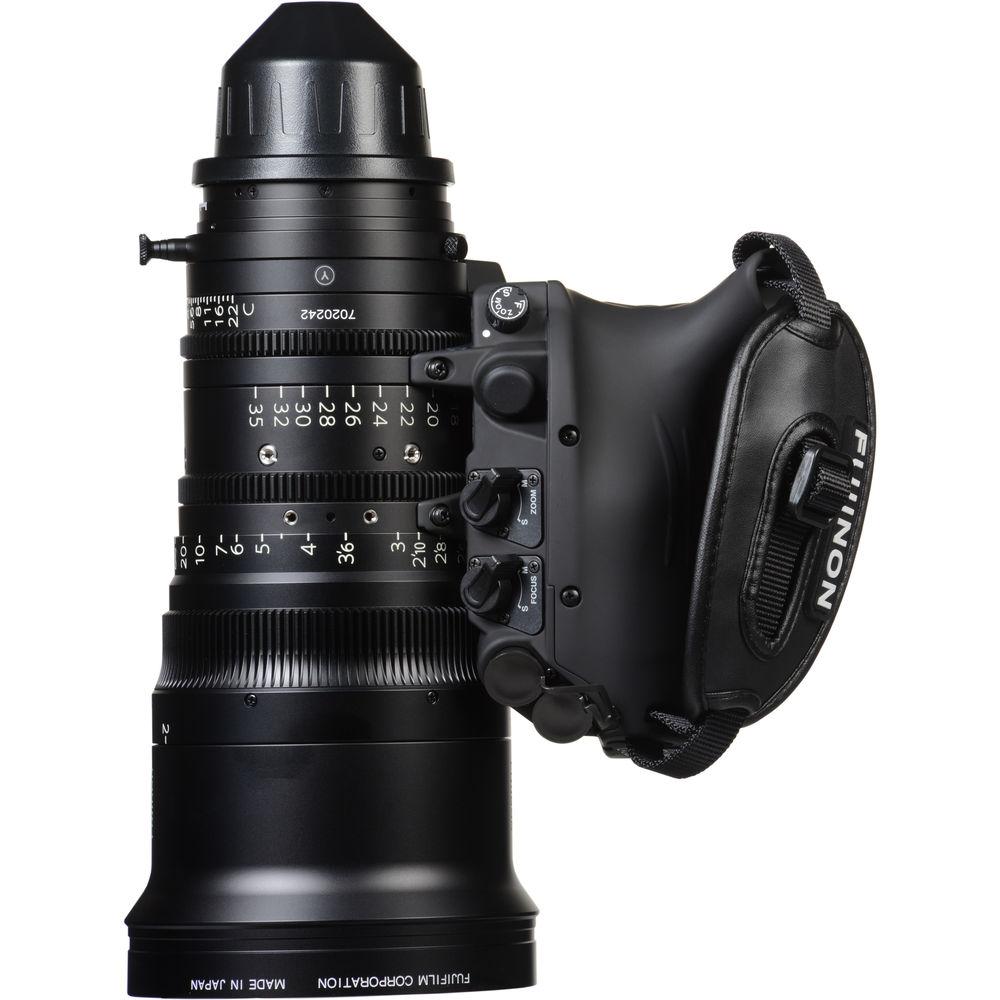

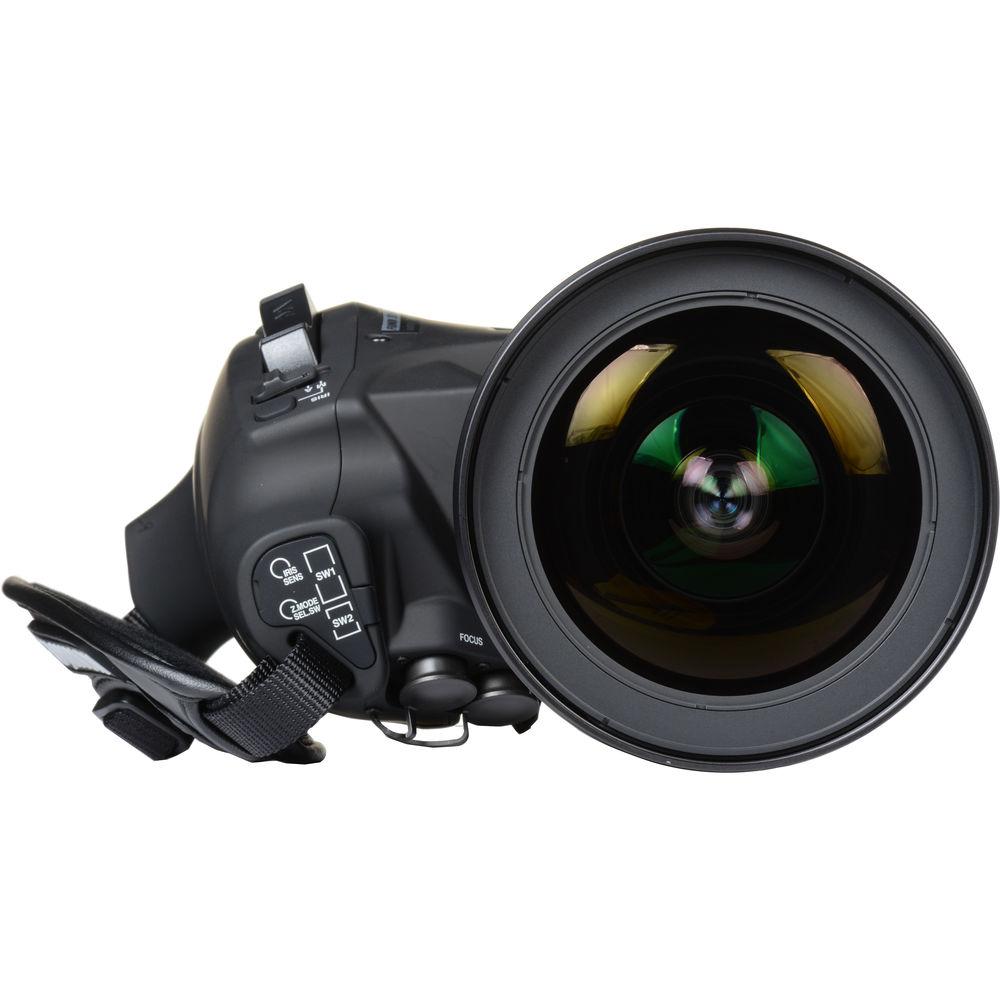

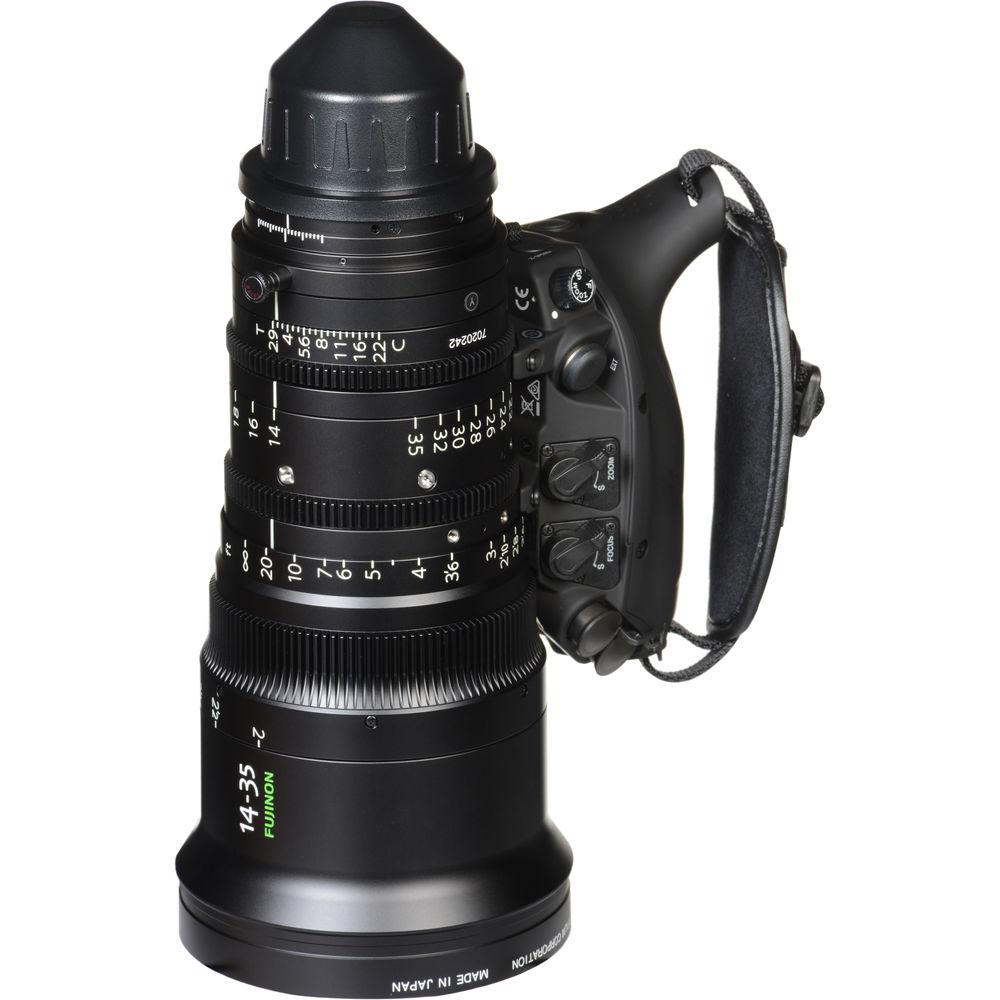

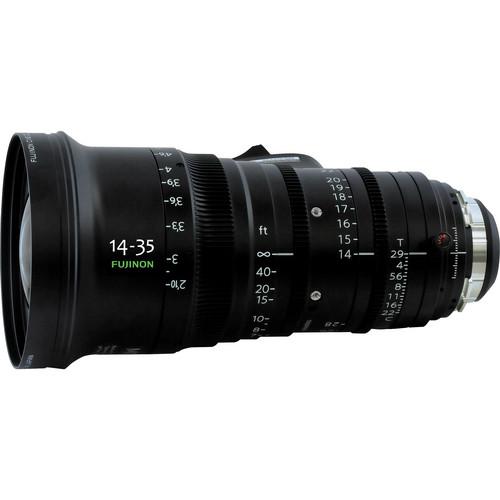

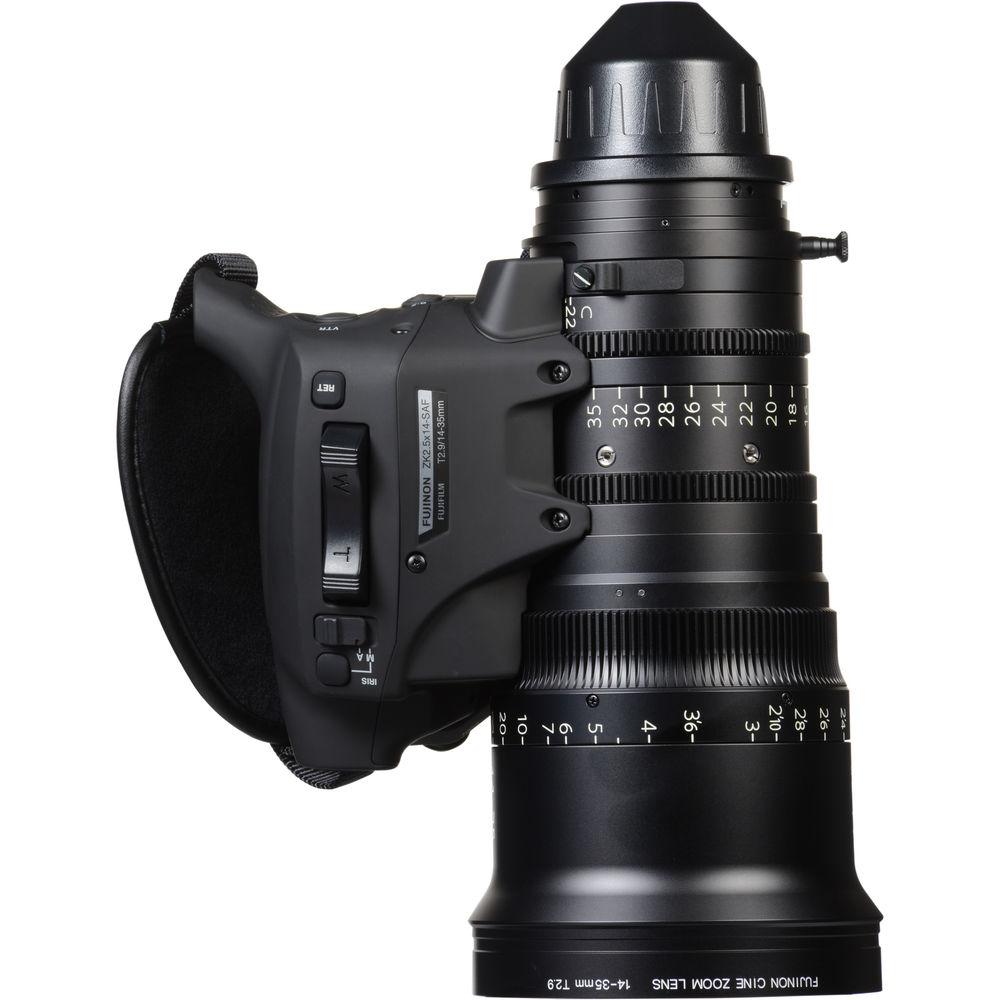

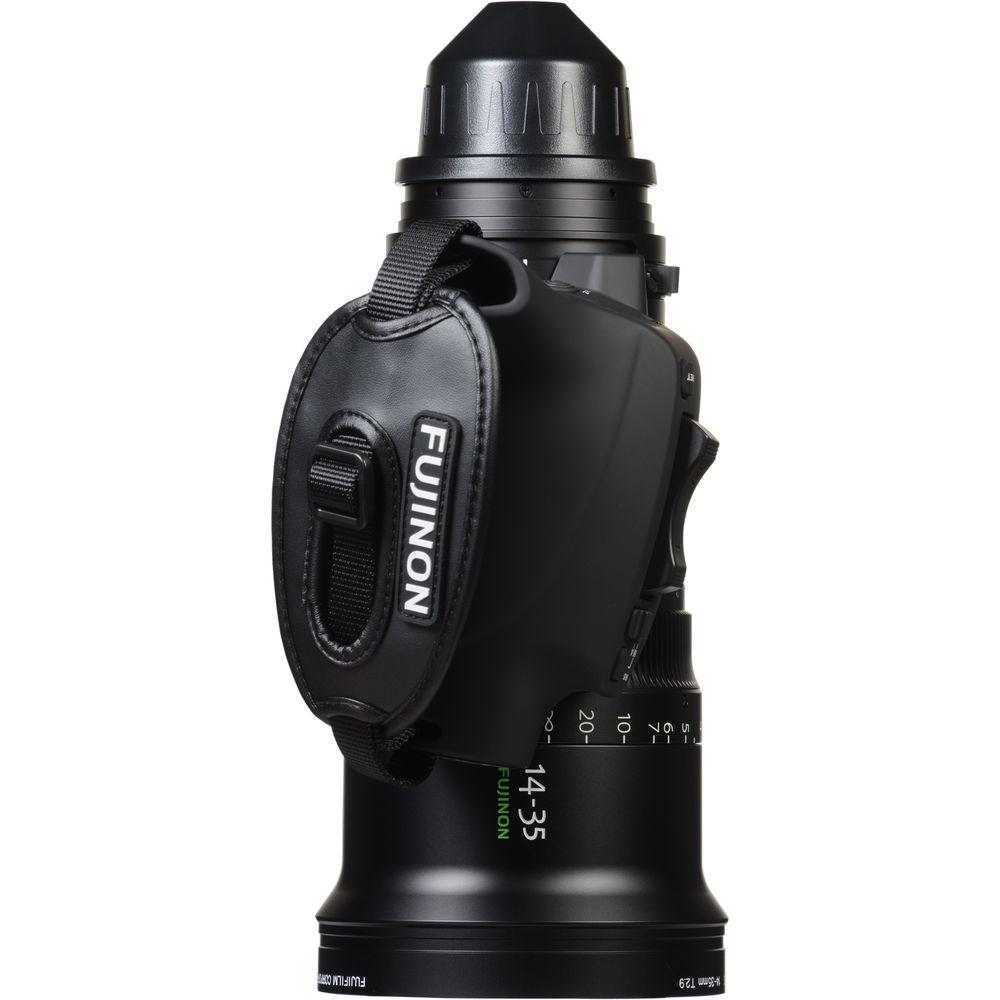

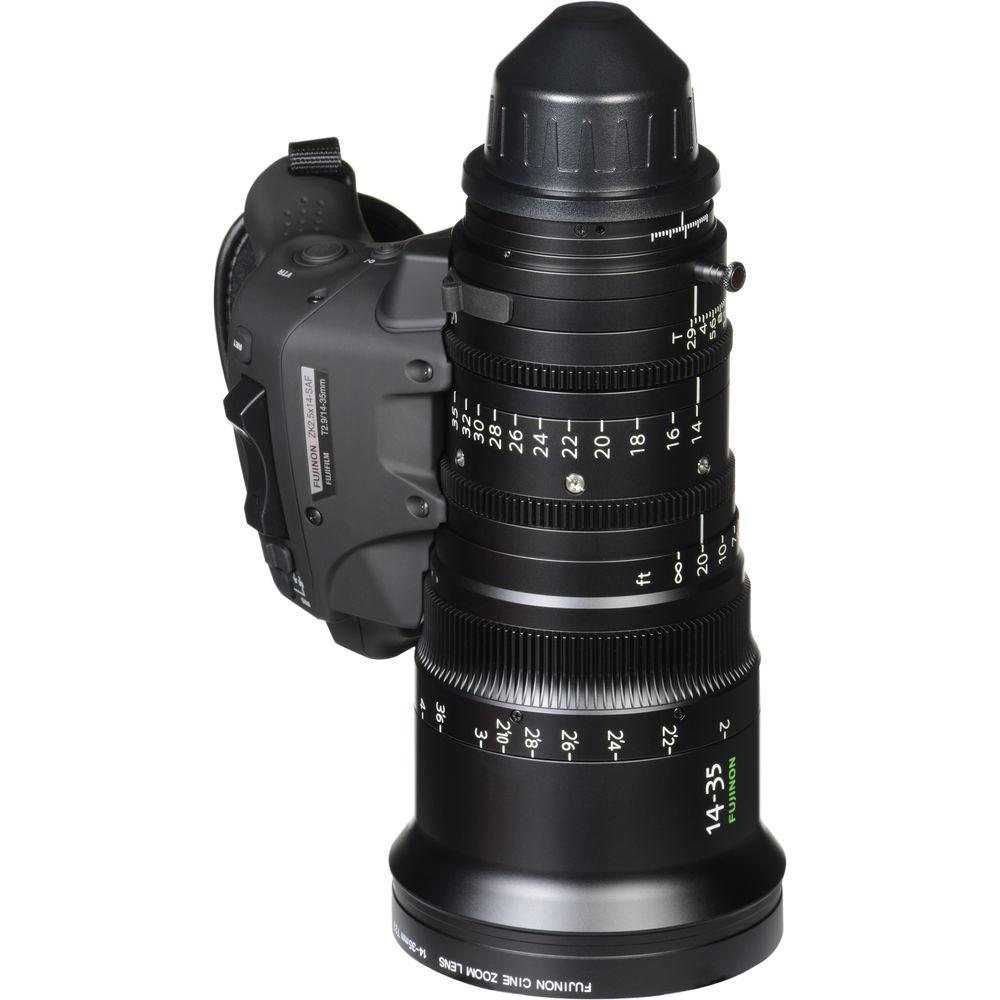

Product description Cinema Lens Care and Maintenance Read More The Fujinon ZK14-35mm T2.9 Cabrio Premier Lens is a wide to telephoto zoom lens for Super 35mm cameras, and it features a PL mount. The focus, zoom, and iris barrels are geared with standard 0.8 film pitch, which provides an interface for the removable ENG-style digital drive unit. The rear PL mount features electrical contacts for sharing Arri LDS and Cooke /i Technology lens data with the camera.
The detachable drive unit is an ENG-style handgrip with a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible, third party manufacturers. When the drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears. Power is provided by either an external connector or the PL mount's "hot shoe" interface. - T2.9 to T22 aperture with 9 iris blades for natural looking bokeh
- The 31.5mm diameter image circle covers up to Super 35mm sensors
- Detachable, ENG-style, digital drive unit with zoom rocker switch
- The lens can be controlled using available cinema industry controllers, as well as available Fujinon wired and wireless controllers.
- Industry standard 0.8 film pitch gears for focus, zoom, and iris control
- Power and data/control connections to the camera via the rear PL mount "hot shoe"
- 16-bit encoding supports sharing LDS and /i Technology lens data with the camera
- The barrel markings in metric or imperial measurements are switchable in the field
- Glow-in-the-dark barrel markings make it easier to read measurements
- 200° focus barrel rotation and 120° zoom rotation
- The lens has back focus (flange distance) adjustment mechanism built into the PL mount.
- Macro focus function available
In the Box Fujinon ZK14-35mm T2.9 Cabrio Premier Lens (PL Mount) Protection Filter Limited 2-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon ZK14-35mm T2.9 Cabrio Premier Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon ZK14-35mm T2.9 Cabrio Specs | Focal Length | 14 to 35mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 31.5 mm | | Maximum T-Stop | T2.9 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 88 to 42° | | Minimum Focus Distance from Image Plane | 2' / 0.6 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Filter Thread | M111 | | Focus Scales | Metric, Imperial | | Focus Rotation | 200° | | Zoom Rotation | 120° | | Zoom Ratio | 2.5x | | Dimensions (W x H) | 4.5 x 4.5" / 114.3 x 114.3 mm | | Length | 3.1" / 231 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 14.4 x 9.9 x 9.0" |
