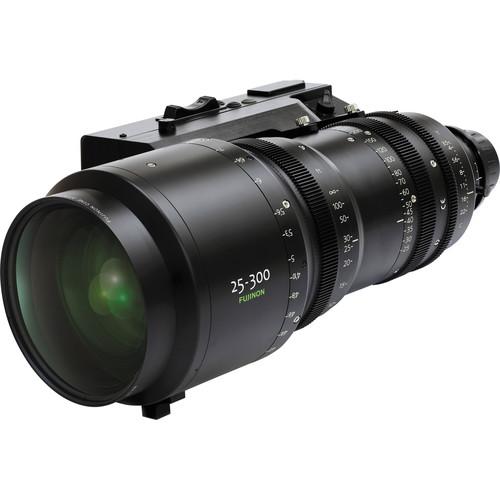

Product description Cinema Lens Care and Maintenance Read More Spanning the Film and ENG worlds, and supporting 4K production, the Fujinon ZK25-300mm T3.5 to T3.85 Cabrio Premier Lens is a 12x zoom for super 35mm size single sensor cameras, and it features a PL mount. The long zoom range allows you to shoot medium wide to long shots without changing lenses, and it holds its maximum T3.5 aperture from 25 to 273mm, almost the entire length of the zoom, losing less than half a stop as it reaches 300mm. This minimized iris ramping makes it easier to use a continuous zoom along the entire zoom range of the lens.
The focus ring features 280 degrees of rotation, providing for accurate focus adjustments, and the 120-degree zoom rotation is consistent with other lenses in the Cabrio line. The focus, zoom, and iris barrels are geared with standard 0.8 film pitch, which provides an interface for the optional removable ENG-style digital drive unit. The rear PL mount features electrical contacts for sharing Arri LDS and Cooke /i Technology lens data with the camera.
An optional detachable drive unit converts the lens to an ENG configuration, and it incorporates a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible, third party manufacturers. When the optional drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears. Power is provided by either an external connector or the PL mount's "hot shoe" interface. Included with the lens is a 111mm clear protection filter that helps to protect the front of the lens. - T3.5/3.85 to T22 aperture with 9 iris blades for natural-appearing bokeh.
- The 31.5mm diameter image circle covers up to Super 35mm sensors.
- Optional ENG-style, digital drive unit with zoom rocker switch.
- Industry standard 0.8 film pitch gears for focus, zoom, and iris control.
- Power and data/control connections to the camera via the rear PL mount "hot shoe."
- 16-bit encoding supports sharing LDS and /i Technology lens data with the camera.
- The barrel markings in metric or imperial measurements are switchable in the field.
- Glow-in-the-dark barrel markings make it easier to read measurements.
- 280° focus barrel rotation for more precise focus adjustments.
- 120° zoom rotation is shared with other lenses in the Cabrio line, making switching between lenses a smoother experience.
- No shims are required to adjust the flange focal distance.
- Macro focus function available.
In the Box Fujinon ZK25-300mm T3.5 to T3.85 Cabrio Premier Lens (PL Mount) 111mm Diameter Clear Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon ZK25-300mm T3.5 to T3.85 Cabrio Premier Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon ZK25-300mm T3.5 Cabrio Specs | Focal Length | 25 to 300mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 31.5 mm | | Maximum T-Stop | T3.5 to 3.85 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 57 to 5° | | Minimum Focus Distance from Image Plane | 3.9' / 1.2 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Filter Thread | None | | Focus Scales | Metric, Imperial | | Focus Rotation | 280° | | Zoom Rotation | 120° | | Zoom Ratio | 12x | | Dimensions (W x H) | 5.4 x 5.4" / 137.2 x 137.2 mm | | Length | 15.8" / 401 mm | | Weight | 19.6 lb / 8.9 kg | | | | Package Weight | 22.55 lb | | Box Dimensions (LxWxH) | 23.543 x 12.126 x 11.181" |
