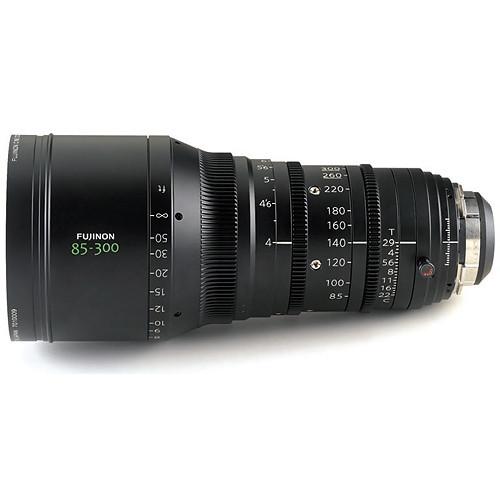

User Manual for Fujinon ZK85-300mm T2.9-4.0 Lightweight Cabrio Lens Click to enlarge the picture
Contents of the user manual for the Fujinon ZK85-300mm T2.9-4.0 Lightweight Cabrio Lens
- Product category: Digital Cine Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Digital Cine Lenses
 |
User manual for the Fujinon ZK85-300mm T2.9-4.0 Lightweight Cabrio Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|

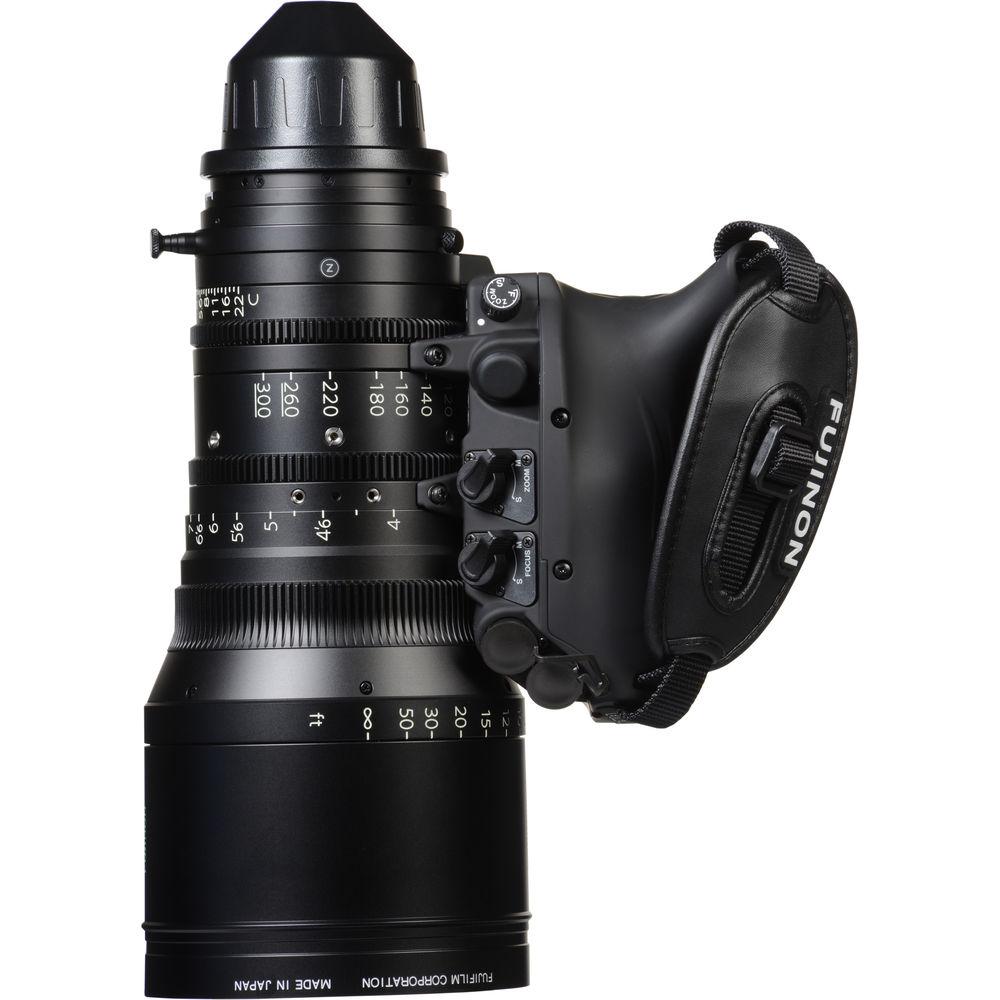

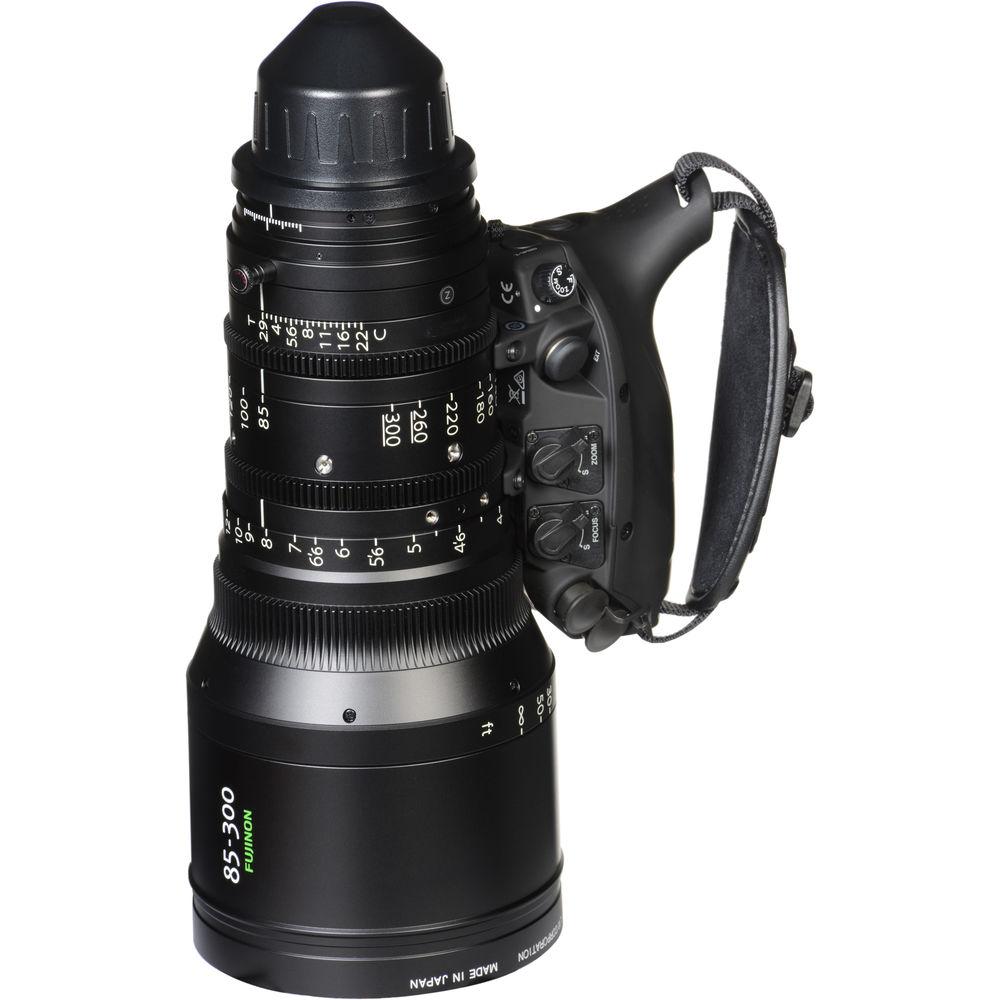

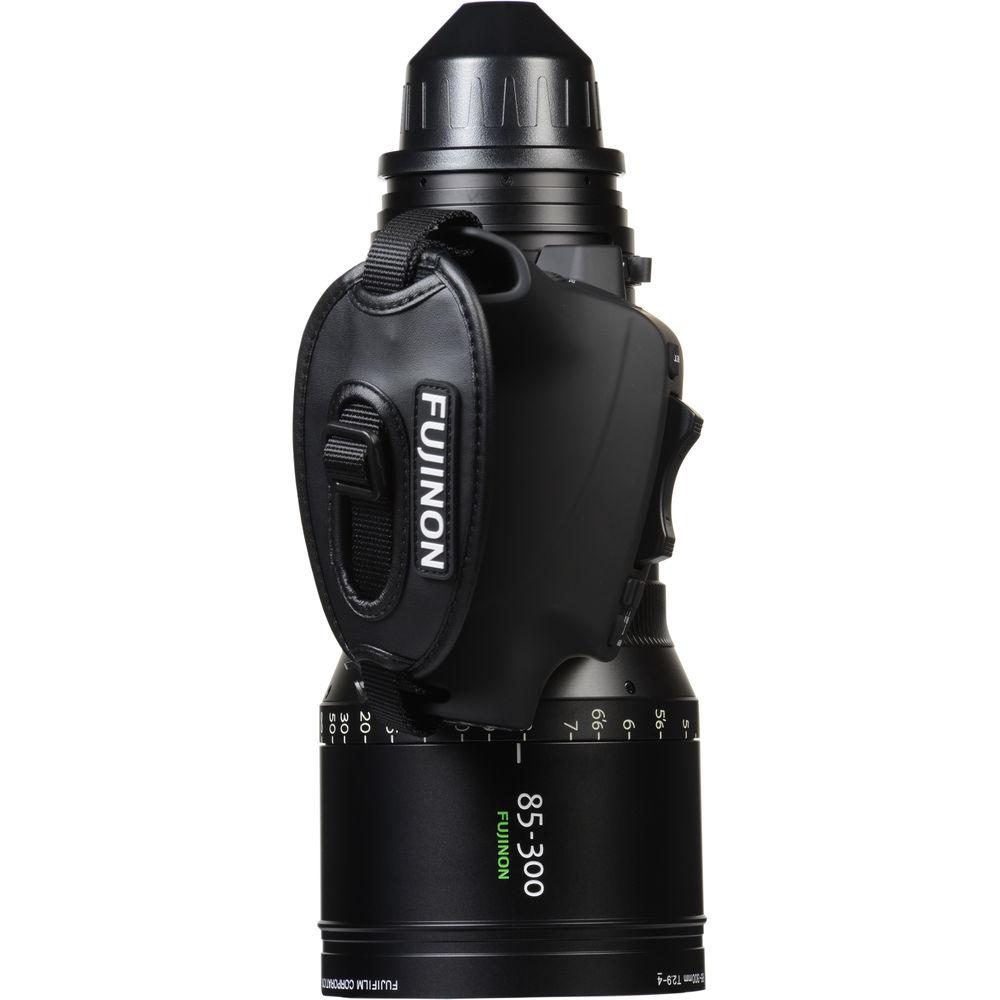

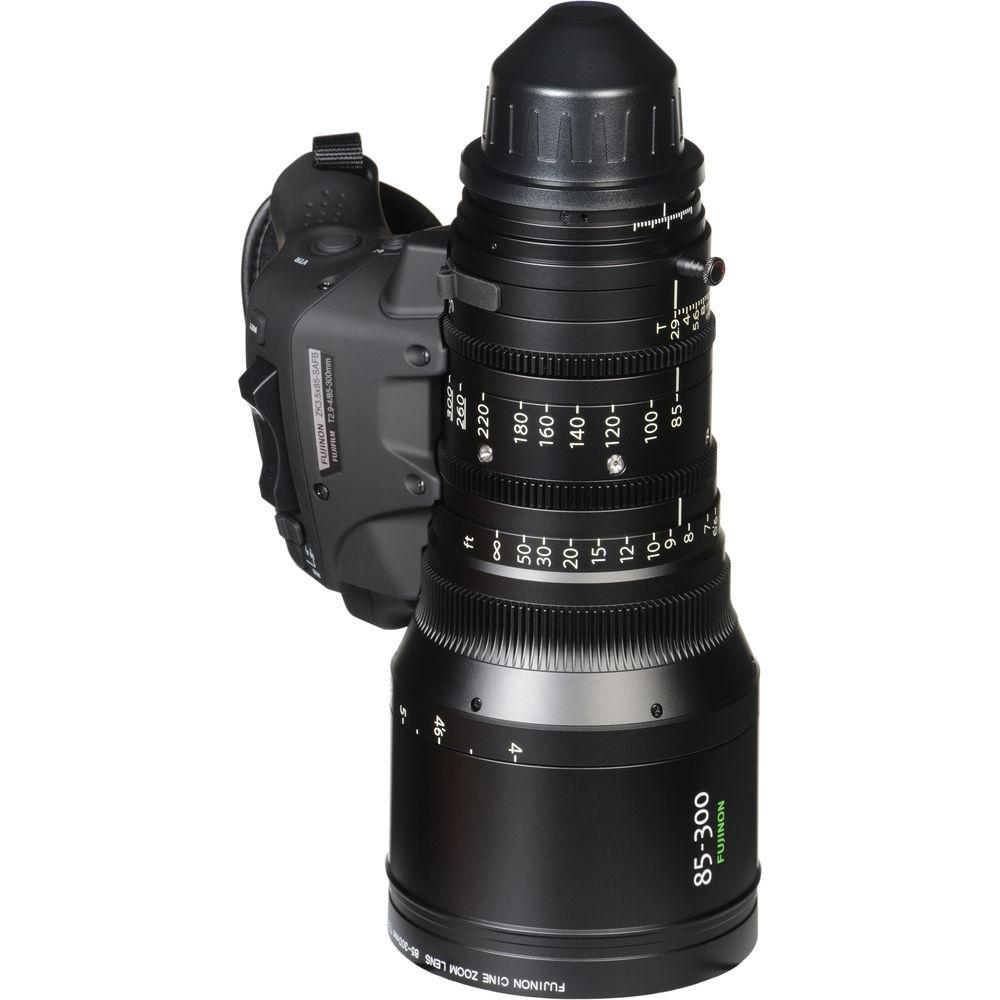

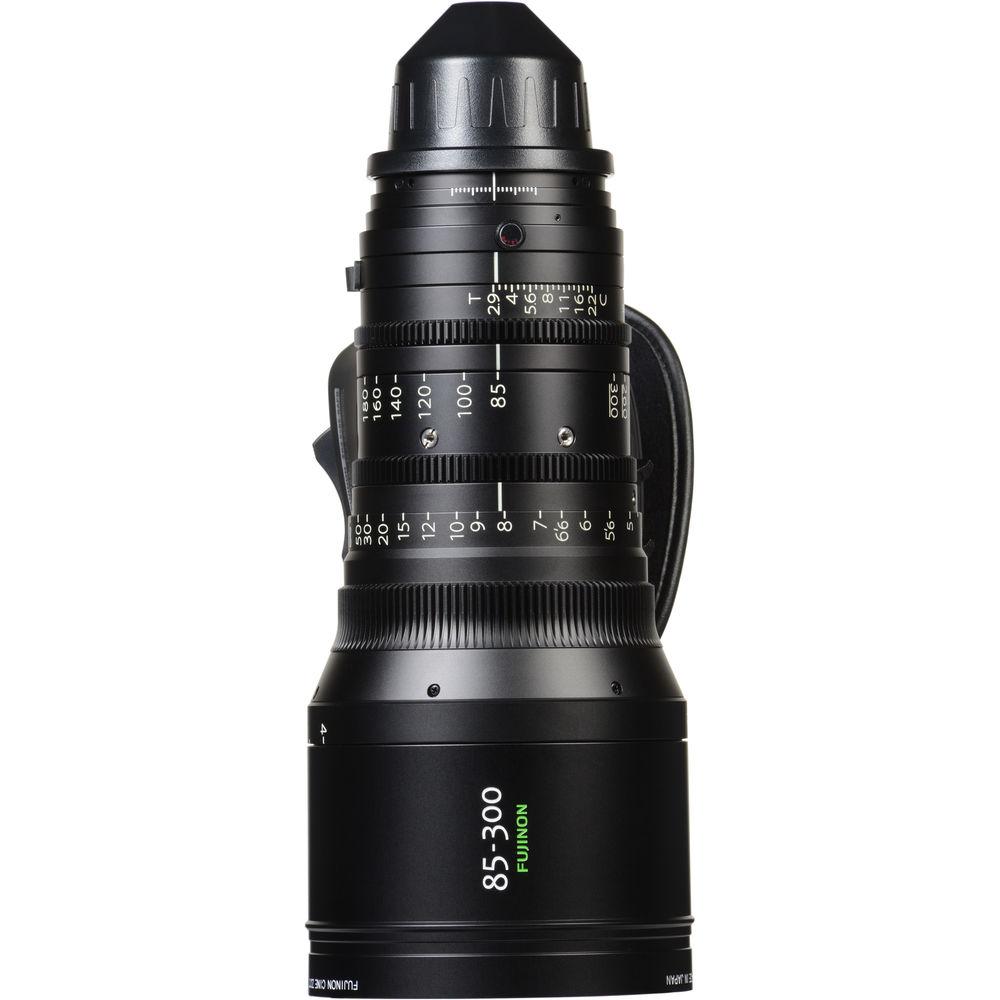

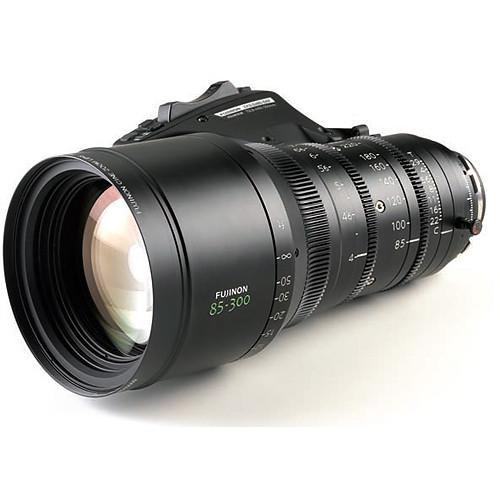

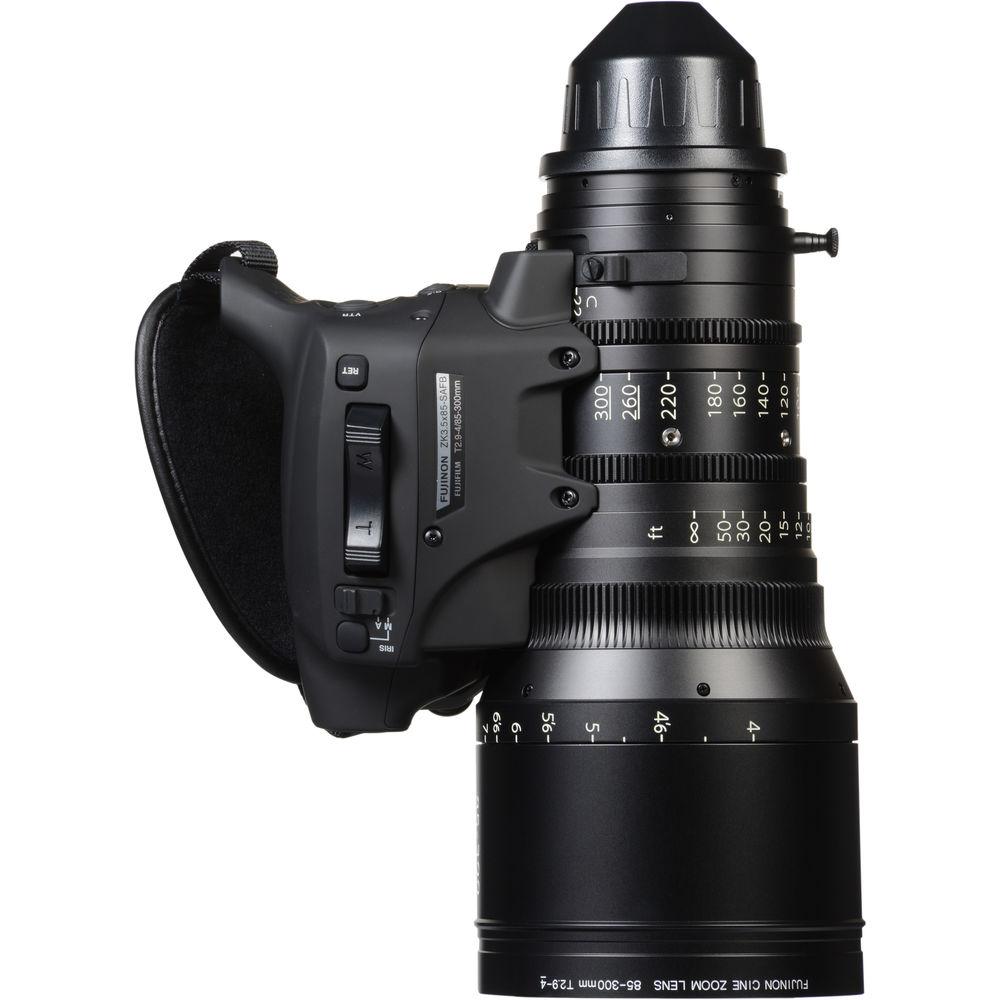

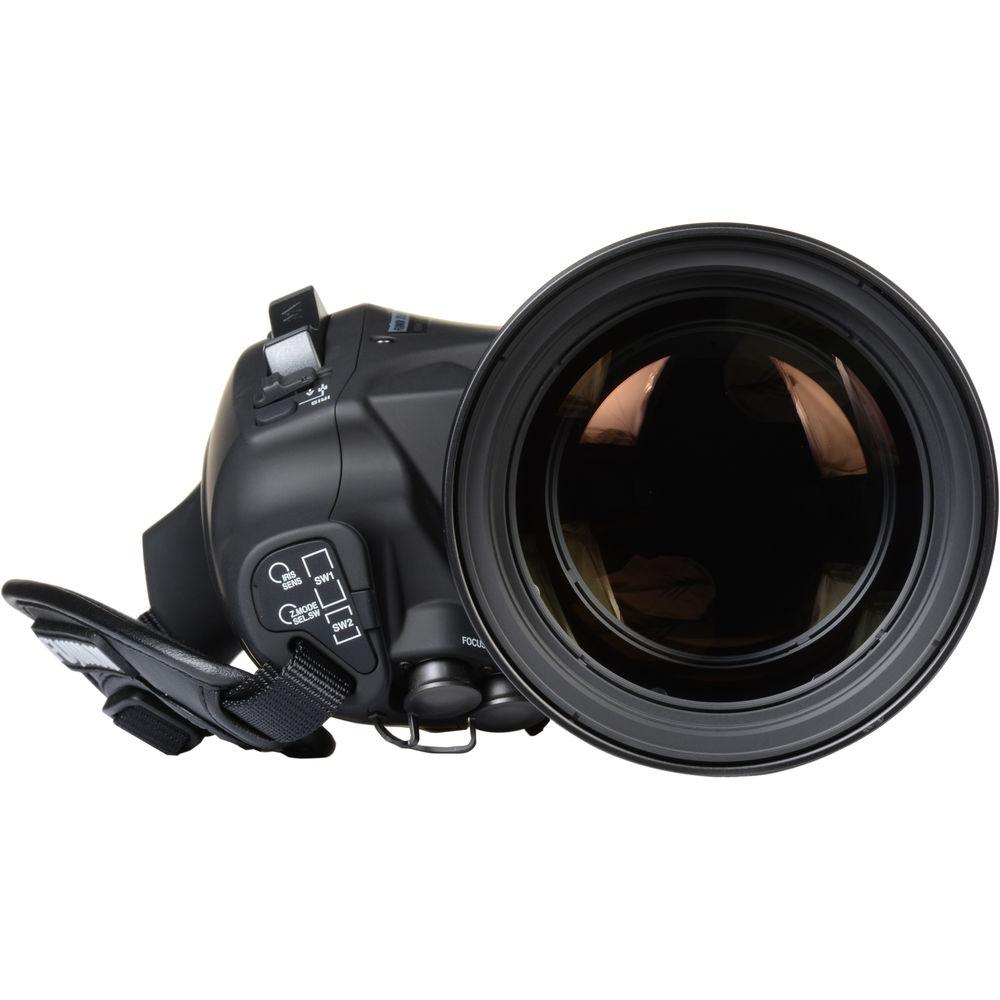

Product description Cinema Lens Care and Maintenance Read More zybbtqeyytzcebecdtuuvbr The Fujinon ZK85-300mm T2.9-4.0 Lightweight Cabrio Lens is a PL Mount lens that features a detachable servo drive unit. With the drive unit, this lens operates like a traditional ENG TV lens thanks to the same interface and accessories familiar to TV lens users. This is helpful in simplifying and reducing setup time since it is not necessary to use more complicated cine lens drive systems, and the drive seamlessly interfaces with wired and wireless cine control systems as well.
With the drive unit removed, this lens has a standard 0.8mm cine gearing, allowing for the use of traditional third-party cine accessories (sold separately). This lens features hybrid technology from both Fujifilm broadcast and cine lens technologies in a lightweight and compact body. - Detachable servo drive unit
- 16-bit high-resolution encoders are employed
- LDS and /i Technology lens data capable through electric contacts in the mount 1
Please Note: LDS (Lens Data System) is a lens communication feature provided by ARRI and /i Technology lens communication feature provided by Cooke. close - Back focus adjustment with macro function
- Natural bokeh (blur) thanks to a newly developed round 9-blade iris
In the Box Fujinon ZK85-300mm T2.9-4.0 Lightweight Cabrio Lens (PL Mount) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon ZK85-300mm T2.9-4.0 Lightweight Cabrio Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon ZK85-300mm T2.9 Cabrio Specs | Application | 35mm PL Mount camera | | Focal Length | 85 to 300mm | | Zoom Ratio | 3.5x | | T-No | T2.9 at 85 to 218mm
T4.0 at 300mm | | Iris Blades | 9 | | MOD | From Image Planes: 4.0' (1.2 m) | | Object Dimensions at M.O.D. | At 85mm: 10.8 x 6.1" (274.0 x 154.0 mm)
At 300mm: 3.1 x 1.7" (79.0 x 44.0 mm) | | Angular Field of View | 1:78 aspect ratio
At 85mm: 18° 21' x 10° 23'
At 300mm: 5° 14' x 2° 57' | | Focus Rotation | 200° | | Zoom Rotation | 120° | | Dimensions (Ø x L) | 4.5 x 9.8" (114.0 x 249.0 mm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 16.7 x 12.5 x 11.6" |
