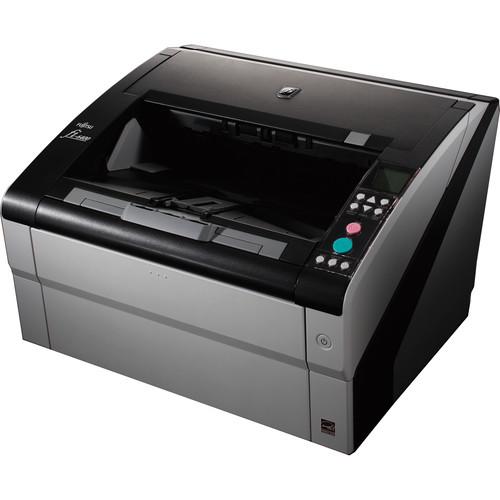

User Manual for Fujitsu fi-6400 Production Scanner Click to enlarge the picture
Contents of the user manual for the Fujitsu fi-6400 Production Scanner
- Product category: Flatbed & Document Scanners Fujitsu
- Brand: Fujitsu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujitsu Flatbed & Document Scanners
|
User manual for the Fujitsu fi-6400 Production Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujitsu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujitsu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujitsu product will considerably shorten its lifespan!
|
Product description Take on up to 40,000 sheets each day at simplex speeds up to 100 ppm with the fi-6400 Production Scanner from Fujitsu. This unit is designed to handle large loads of documents and scan them directly to a computer with USB 2.0 connectivity. Images are also sharp and detailed with a 600 dpi optical resolution which can be output at up to 1200 x 1200 dpi. Also, a color depth of 24-bit ensures accurate colors while the 500-sheet automatic document feeder can take on documents as large as 11.7 x 16.5" or 11 x 17". Additionally, a long document mode enables working with sheets as large as 120" in length.
Duplex scanning is possible with an excellent speed of up to 200 ipm and triple ultrasonic double feed detection means that each sheet will be properly fed and scanned. It comes with PaperStream IP and PaperStream Capture software as well as 2D Barcode for PaperStream to further enhance your scanning capabilities. Scanner Central Admin is also bundled for managing up to 1000 scanners from a single location. - PaperStream IP
- Provides TWAIN/ISIS driver support and automatically converts and cleans images as well as improves OCR when scanning wrinkled/soiled documents and eliminates the need to fine tune scanner settings.
- PaperStream Capture
- An application for scanning and managing scanned images. It allows users to adjust settings and perform batch scans with a simple interface. An Automatic Image Quality Checker setting automatically highlights folded and damaged documents for validation of scanned images.
- Scanner Central Admin
- Allows users to manage up to 1000 scanners from a central location. Additionally, usage status is tracked so consumables can be monitored and replaced.
UPC: 097564308703 In the Box Fujitsu fi-6400 Production Scanner USB Cable AC Power Cord Software CD-ROM Setup DVD-ROM Limited 1-Year Warranty Brochure PDF 979.6kbxvzzeqxbaufacuzveycbvva Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujitsu fi-6400 Production Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujitsu FI-6400 Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 200 ipm (Color)
200 ipm (Grayscale) | | Simplex Speed | 100 ppm (Color)
100 ppm (Grayscale) | | Maximum Document Width | 11" / 27.9 cm | | Maximum Document Length | 17" / 43.2 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External)
8-Bit (Internal) | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Manual | | Connectivity | USB 2.0 | | Paper Weight | 11 to 56 lb | | Maximum Paper Thickness | 9.8 mil / 0.25 mm | | Operating System Compatibility | Windows | | Light Source | LED | | Duty Cycle | 40000 Scans | | Maximum Sheet Capacity | 500 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, RoHS | | Operating Humidity | 20 to 80% | | Operating Temperature | 59 to 95°F / 15 to 35°C | | Maximum Power Consumption | 200 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 18.1 x 16.9 x 12.2" / 46.0 x 43.0 x 31.0 cm | | Weight | 70.5 lb / 32 kg | | | | Package Weight | 84.5 lb | | Box Dimensions (LxWxH) | 25.6 x 24.9 x 22.3" |
