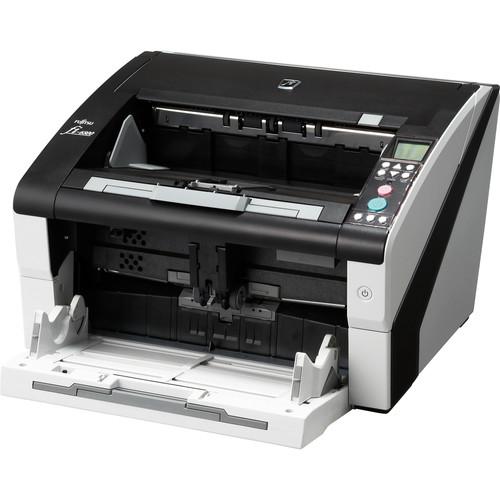

User Manual for Fujitsu fi-6800 Color Duplex High-Volume Production Scanner Click to enlarge the picture
Contents of the user manual for the Fujitsu fi-6800 Color Duplex High-Volume Production
- Product category: Flatbed & Document Scanners Fujitsu
- Brand: Fujitsu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujitsu Flatbed & Document Scanners
|
User manual for the Fujitsu fi-6800 Color Duplex High-Volume Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujitsu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujitsu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujitsu product will considerably shorten its lifespan!
|
Product description The Fujitsu fi-6800 Color Duplex High-Volume Production Scanner allows scan operators to easily configure settings based on their individual preferences such as language, alarm sound/volume, and others directly from the front LCD operator panel. It features independently adjustable side input guides and a 500-page automatic document feeder.
The fi-6800 scanner can maintain rated speeds at up to 300 dpi to increase reading accuracy for OCR or bar code applications where more dots per inch is preferable. Additionally, the PaperStream IP features such as automatic orientation and intelligent blank page deletion can be utilized to increase automation without any sacrifice in scanning speed.
In addition to fast scanning speeds, the fi-6800 includes many scanning tools to improve the batch scanning process. It even provides efficiency after documents have been scanned with an Imprinter option to print a physical string on documents and an Active Stacker feature which controls paper speed exiting the scanner to keep documents neat and orderly.
The Scanner Central Admin provides IT departments an efficient way to manage medium to large scanner deployments. With remotely accessible fleet information, IT departments can now allocate resources effectively based on scan volume, consumable wear, depreciation schedules, and maintenance expiration. - Fast, 130 ppm (simplex) / 260 ipm (duplex) scanning in monochrome or color (letter, landscape @ 300 dpi)
- Space-saving design with quiet operation
- Easy- to-use operator panel with multi-language support
- Triple Ultrasonic Double Feed Detection with Intelligent Multi-Feed Function and retain image feature
- 500-page automatic document feeder with an adjustable height hopper
- Rate-speed scanning with PaperStream IP Image Cleanup (TWAIN & ISIS)
- Automatic intelligent image correction for decreased document preparation − Auto orientation, auto color detection, intelligent blank page detection, and background smoothing
- Document Protection to prevent damage to documents
- Paper feeding of mixed documents of various sizes, shapes, and colors
- Patch Code and Barcode job separation with a flexible file naming schema
- PaperStream Capture software
- Scanner Central Admin software for fleet management
- Full suite of bundled software and third party interoperability
- Batch counter and Document Counting on the front operator panel
- Active Stacker keeps documents neat and orderly in the exit tray
UPC: 097564308239 In the Box Fujitsu fi-6800 Color Duplex High-Volume Production Scanner AC Cable USB Cable Software DVD-ROM Limited 1-Year Warranty Guides & Manuals More info from Fujitsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujitsu fi-6800 Color Duplex High-Volume Production Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Fujitsu fi-6800 Color Duplex High-Volume Production Scanner can be downloaded in PDF format at the link stated below.
Technical parametersFujitsu FI-6800 Specs | Image Sensor Type | 2 x Color CCD ( 1 x front, 1 x back) | | Scanner Type | ADF (Automatic Document Feeder) + Manual feed | | Scanning Modes | Simplex / Duplex
Color/Grayscale/Monochrome | | Light Source | White LED array | | Document Size | ADF Maximum
A3: 12 x 17" (29.7 x 42 cm)
Long Paper Scanning: 125" (317.5 cm)
ADF Minimum
A8 Portrait: 2 x 3" (5.1 x 7.6 cm) | | Paper Weight | Less than A5 Size: 2 to 9.8 mil (0.05 to 0.25 mm): 41 to 209 g/m2 or 11 to 56 lb
A4 to A5 size: 1 to 9.8 mil (0.025 to 0.25 mm): 20 to 209 g/m2 or 5.4 to 56 lb
Over A4 size: 2 to 9.8 mil (0.05 to 0.25 mm): 41 to 209 g/m2 or 11 to 56 lb | | Scanning Speed | A4 Landscape
Color/Grayscale/Monochrome: Simplex: 130 ppm (300 dpi), Duplex: 260 ipm (300 dpi)
A4 Portrait
Color/Grayscale/Monochrome: Simplex: 100 ppm (300 dpi), Duplex: 200 ipm (300 dpi) | | Capacity | Paper Chute: 500 sheets (A4: 80 g/m2 or 20 lb) (Active loadable ADF) | | Colors | Background: White / black (selectable) | | Optical Resolution | 600 dpi | | Output Resolution | Color (24-bit) / Grayscale (8-bit) / Monochrome (1-bit): 50 to 600 dpi, 1200 dpi | | Output Format | Color: 24-bit
Grayscale: 8-bit
Monochrome: 1-bit | | Converter | AD: 1024 levels | | Interface | USB 2.0
Ultra-wide SCSI | | Image processing | Dither / Error diffusion (half-tone) | | Supported Operating Systems | Windows 7, 8, XP, Vista, Server 2008, Server 2012 | | Voltage Range | 100 to 240 VAC (±10%) | | Power Consumption | Operating: Less than 200 W
Sleep Mode: Less than 4 W
Auto Standby (Off) Mode: Less than 0.5 W | | Operating Environment | Temperature: 59 to 95°F (15 to 35°C) | | Relative Humidity | 20 to 80% (non-condensing) | | Compliance | ENERGY STAR, RoHS, EPEAT Silver | | Included Software | PaperStream IP (TWAIN/ISIS) Driver
Software Operation Panel
Error Recovery Guide
PaperStream Capture
Scanner Central Admin Agent | | Multi-Feed Detection | Yes
3 x Ultrasonic multi-feed detection sensors with Intelligent MultiFeed Function | | Dimensions (W x D x H) | 18.1 x 16.9 x 12.2" (46 x 43 x 31 cm)
Installation Space: 33.8 x 64.1 x 13.7" (86 x 163 x 35 cm) | | Weight | 70.5 lb (32 kg) |
