User Manual for Fujitsu fi-7460 Color Duplex Document Scanner Click to enlarge the picture
Contents of the user manual for the Fujitsu fi-7460 Color Duplex Document Scanner
- Product category: Flatbed & Document Scanners Fujitsu
- Brand: Fujitsu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujitsu Flatbed & Document Scanners
 |
User manual for the Fujitsu fi-7460 Color Duplex Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujitsu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujitsu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujitsu product will considerably shorten its lifespan!
|

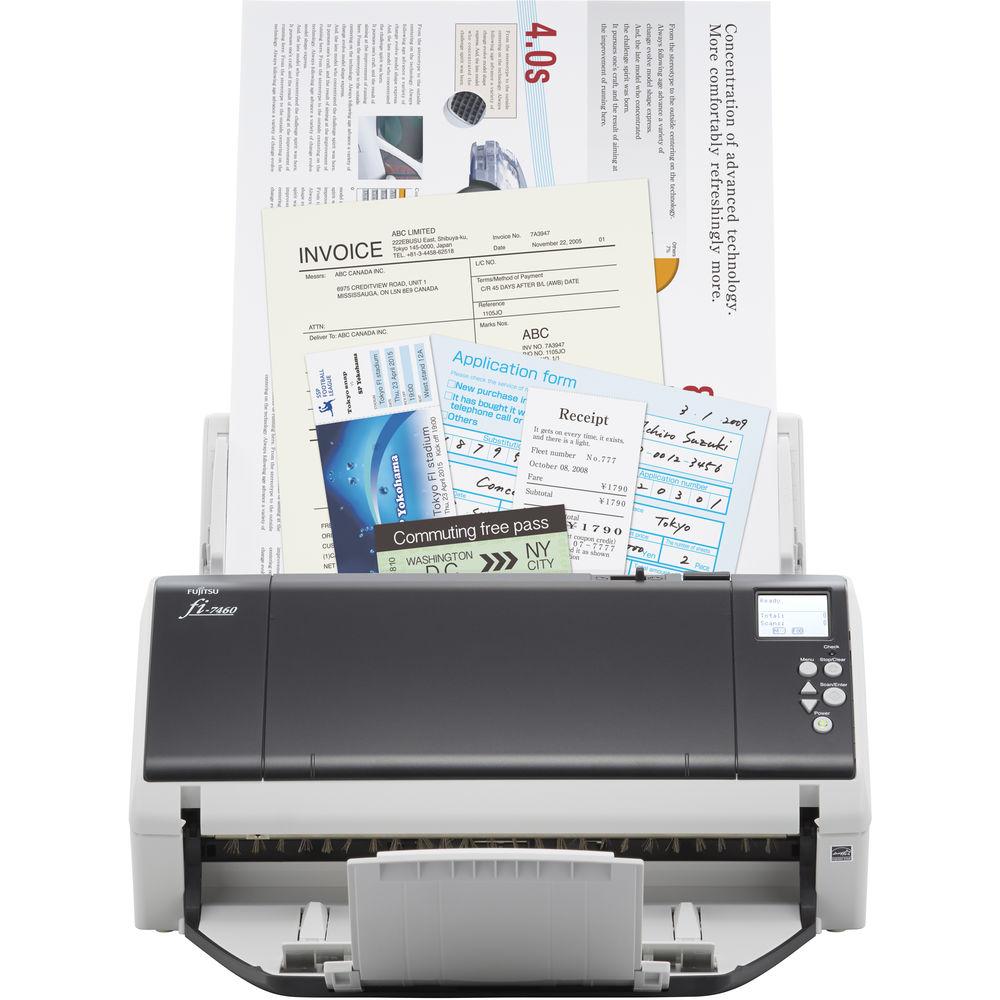

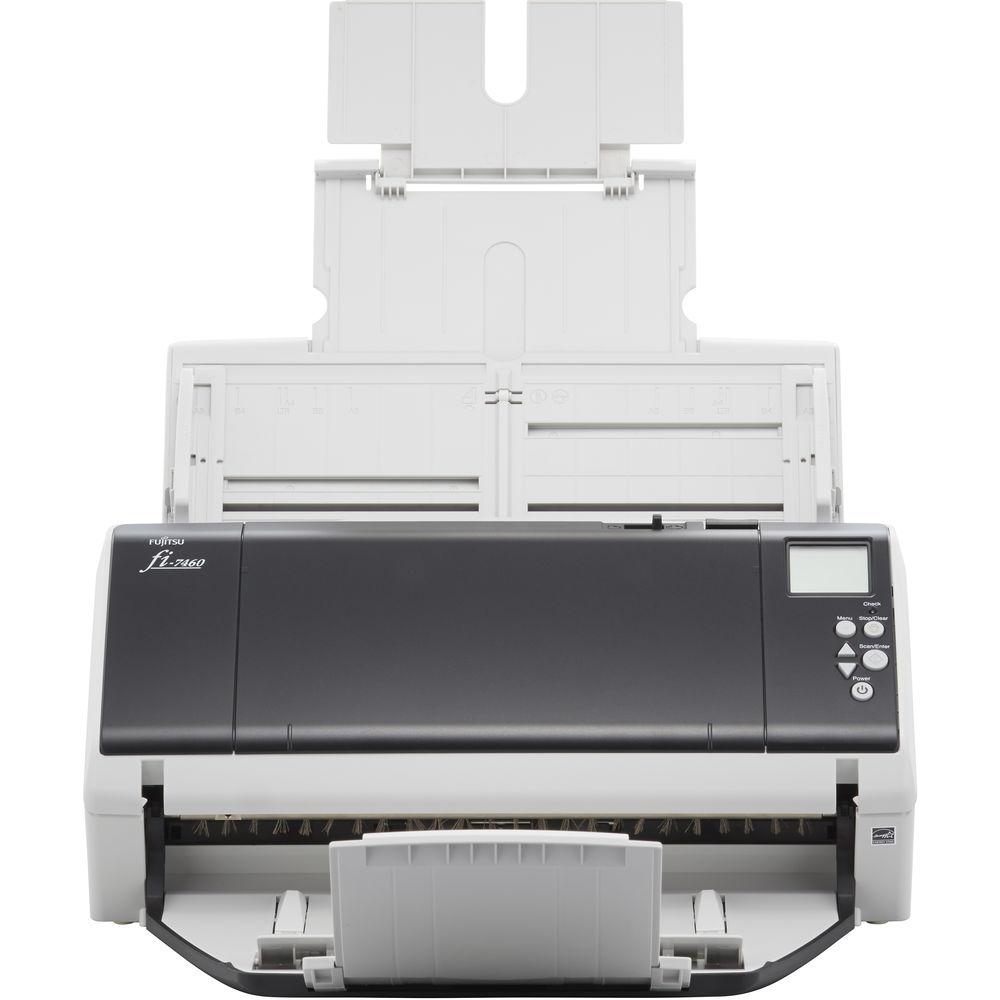

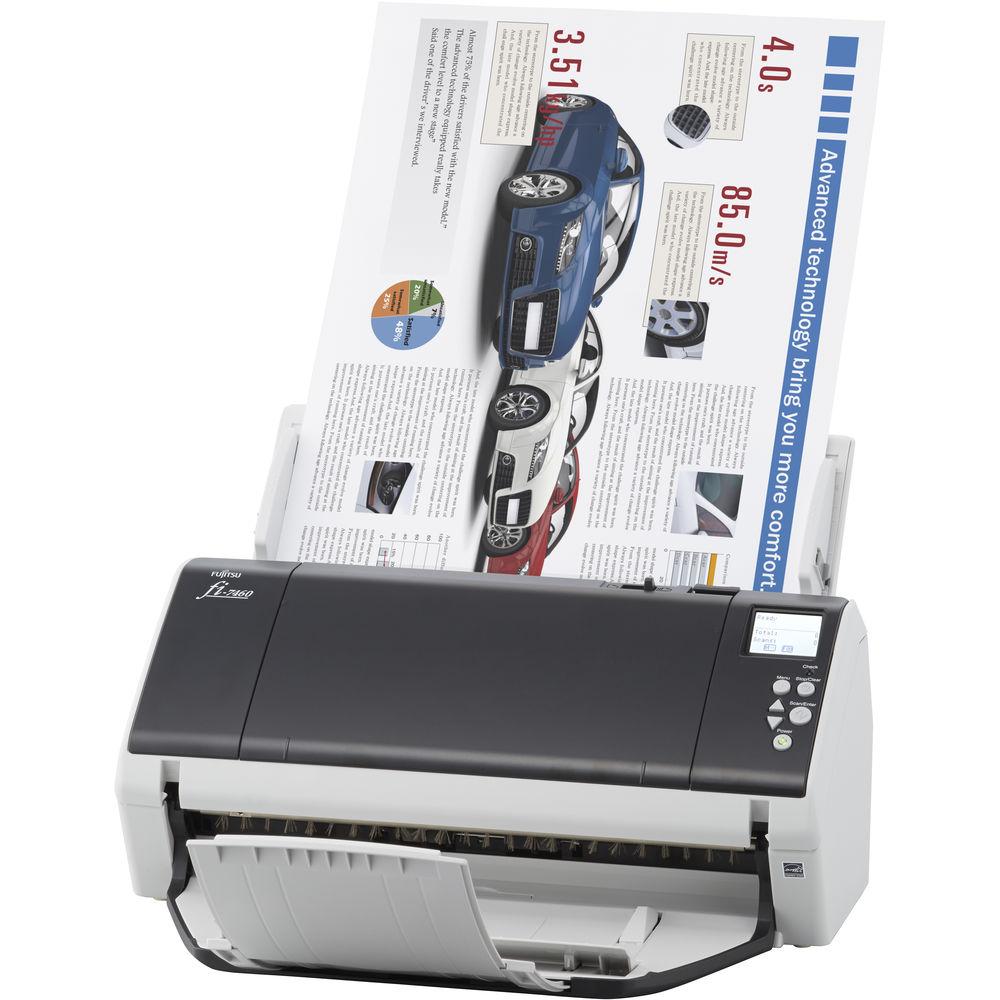

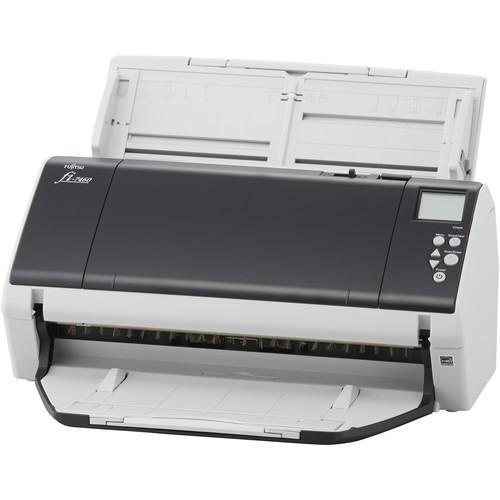

Product description Utilizing both a flatbed and 100-sheet automatic document feeder, the fi-7460 Color Duplex Document Scanner from Fujitsu is a versatile duplex-capable unit that can handle a majority of your scanning needs. It has an optical resolution of 600 dpi and scan speeds of 60 ppm in simplex mode and 120 ipm in duplex mode. Also, with a 24-bit color depth, it can produce images with fine gradations and accurate color rendering. The fi-7460 can work with documents up to 11.7 x 17" using the ADF.Intelligent multi-feed and Skew Reducer functions ensure paper is being fed through the ADF properly and safely. This ensures high quality scans at fast speeds. Also, it has Intelligent Sonic Paper Protection to prevent jams and paper damage. In addition to a built-in LCD screen and front control panels, PaperSteam IP and PaperStream Capture software is bundled with the unit for advanced control options. This enables working with OCR and other software as well as ensuring scans are of the utmost quality. General - Large capacity 100-page feeder
- Mixed batch scanning with plastic and embossed cards
- 1D Barcode, 2D Barcode, and patch code separation
- Eco-friendly LED scanning

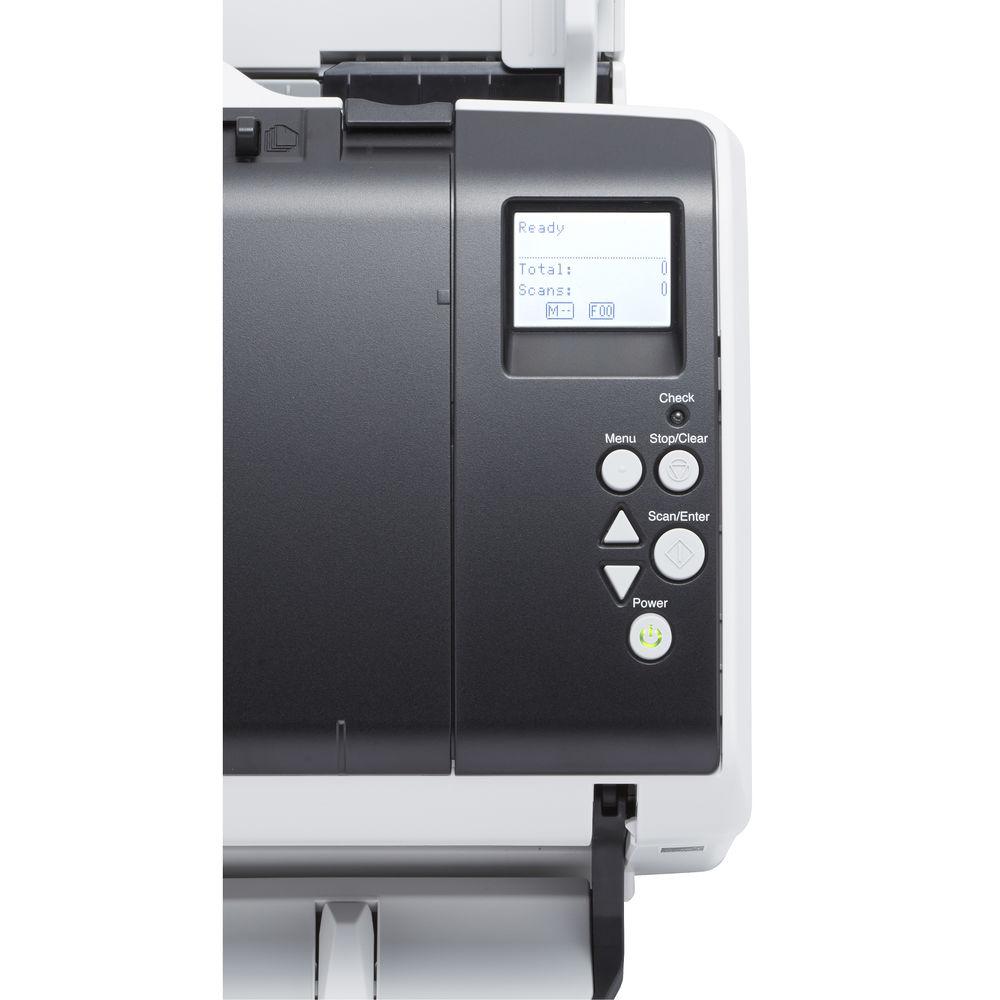

- Backlit LCD panel for easy viewing and control
- Manual feed mode for thick documents
- Automatic image cleanup with PaperStream IP drivers (TWAIN & ISIS)
- PaperStream Capture software
- Scanner Central Admin Software for fleet management
Scanning Performance - Rapid startup from sleep in less than a second
- Thick paper (27 to 413 gsm) and embossed card scanning
- Manual feed mode for thick and difficult documents
- Skew resistance technology
- Automatic stacking speeds for improved organization
- Scan sticky notes, taped receipts, and labels while securing against multi-feeds
- Long document support up to 18.3' in PaperStream IP
- USB 3.0 for forward compatibility
- 32/64-bit driver for PaperStream IP (TWAIN & ISIS)
Fleet Management - Central Admin provides IT departments an efficient way to manage medium to large scanner deployments. With remotely accessible fleet information, IT departments can monitor, update, and allocate resources effectively based on scan volume, consumable wear, depreciation schedules, and maintenance expiration.
UPC: 097564308772 In the Box Fujitsu fi-7460 Color Duplex Document Scanner AC Cable USB Cable Limited 1-Year Warranty Brochure PDF 2.7mb More info from Fujitsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujitsu fi-7460 Color Duplex Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujitsu FI-7460 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 120 ipm (Color, Grayscale) | | Simplex Speed | 60 ppm (Color) | | Maximum Document Width | 11.7" / 29.7 cm | | Maximum Document Length | 17" / 43.2 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Manual | | Life Expectancy | 9000 Sheets per Day | | Connectivity | USB 3.0 | | Wireless Connectivity | None | | File Formats | JPEG, PDF, TIFF | | Media Types | Photo, Plain Paper, Plastic ID Card | | Paper Weight | 7 to 110 lb / 27 to 413 gsm | | Maximum Paper Thickness | 55.1 mil / 1.4 mm | | Operating System Compatibility | Windows | | Light Source | LED | | Image Sensor | 2 x Charge-Coupled Device (CCD) | | Control Panel | LCD Touchscreen, 6 Buttons | | Drivers | TWAIN, ISIS | | Maximum Sheet Capacity | 100 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, EPEAT Silver, RoHS | | Operating Humidity | 20 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Maximum Power Consumption | 36 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Dimensions | 15.0 x 8.2 x 6.6" / 38.1 x 20.8 x 16.8 cm | | Weight | 16.7 lb / 7.6 kg | | | | Package Weight | 20.55 lb | | Box Dimensions (LxWxH) | 20.0 x 12.5 x 12.0" |
