User Manual for Fujitsu fi-7600 Document Scanner Click to enlarge the picture
Contents of the user manual for the Fujitsu fi-7600 Document Scanner
- Product category: Flatbed & Document Scanners Fujitsu
- Brand: Fujitsu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujitsu Flatbed & Document Scanners
 |
User manual for the Fujitsu fi-7600 Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujitsu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujitsu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujitsu product will considerably shorten its lifespan!
|

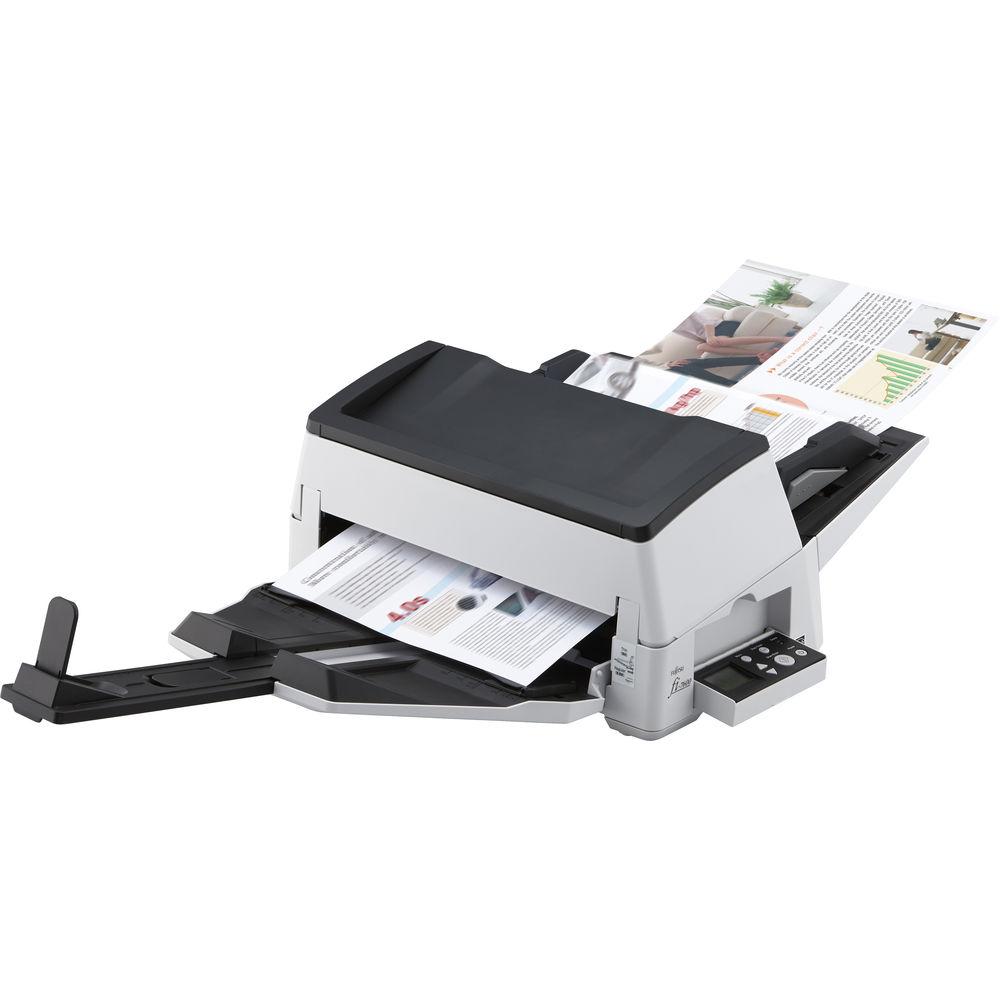

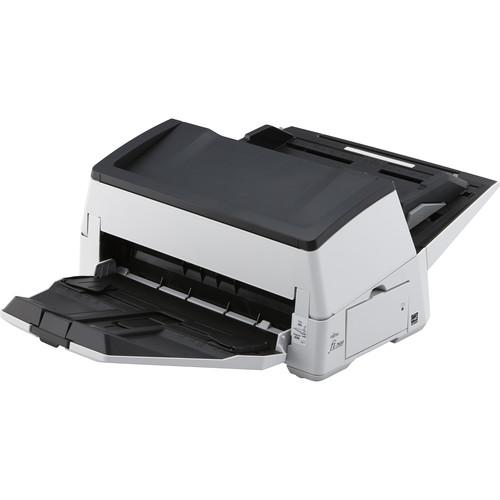

Product description Scan hundreds of documents with speed and clarity by picking up the fi-7600 Document Scanner from Fujitsu. Equipped with a 300-sheet automatic document feeder, users will be able to perform batch scans at speeds of up to 100 ppm, and it will support various document types, including paper, plastic cards, envelopes, and more. An optical resolution of 600 dpi helps create sharp, crisp images while the ADF is able to work with documents from 2 x 2.7" up to 12 x 17", or 12 x 220" in a long document mode. Also, single-pass duplexing is possible at up to 200 ipm.
In order to ensure all documents are scanned accurately, the fi-7600 uses Intelligent Sonic Paper Protection and Ultrasonic Double Feed Detection. This prevents documents from damage and results in higher-quality scans. The scanner is also unique in its implementation of a control panel of both sides of the unit, allowing for easier placement in different workspaces. In order to provide smooth connectivity with a computer, the scanner is equipped with a USB 3.0 interface and comes with PaperStream IP and PaperStream Capture. - The high-capacity 300-sheet ADF can work with documents from 2 x 2.7" up to 12 x 17", or up to 12 x 220" in long document mode. It also features speeds of up to 100 ppm in simplex and 200 ipm in duplex.

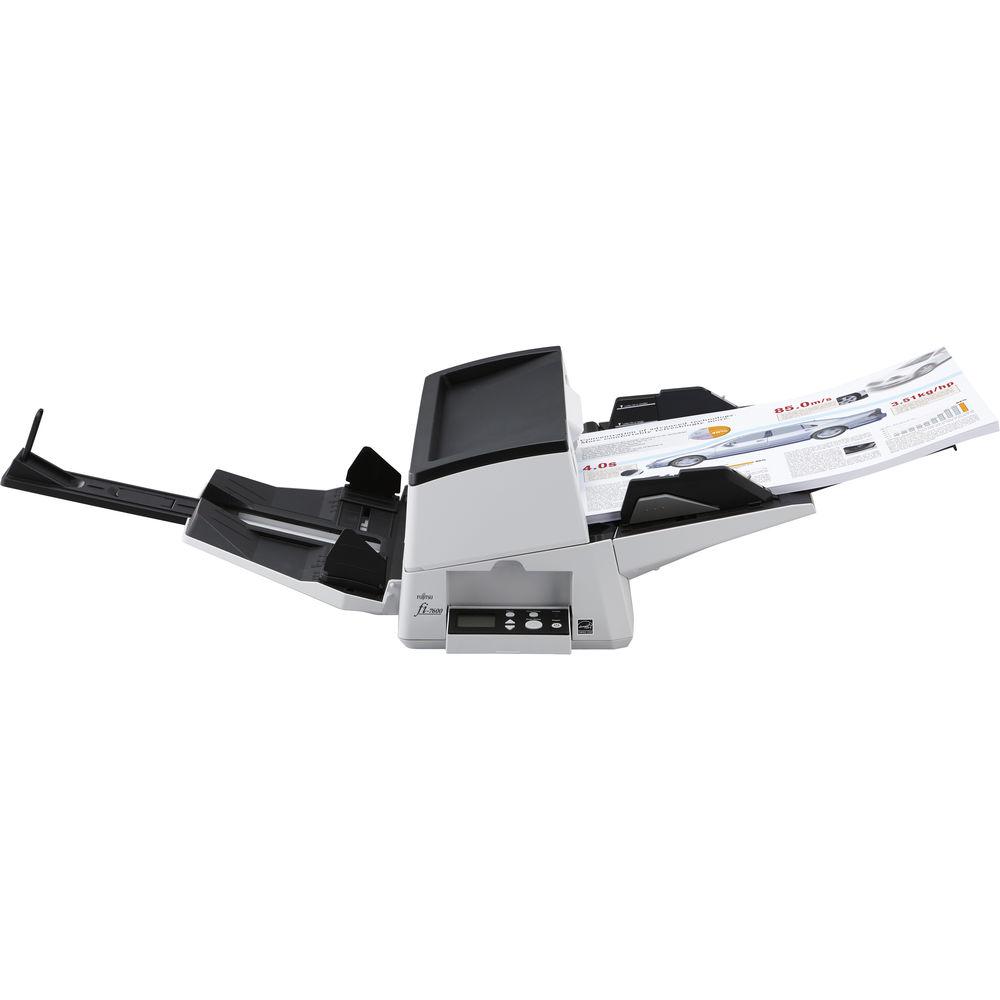

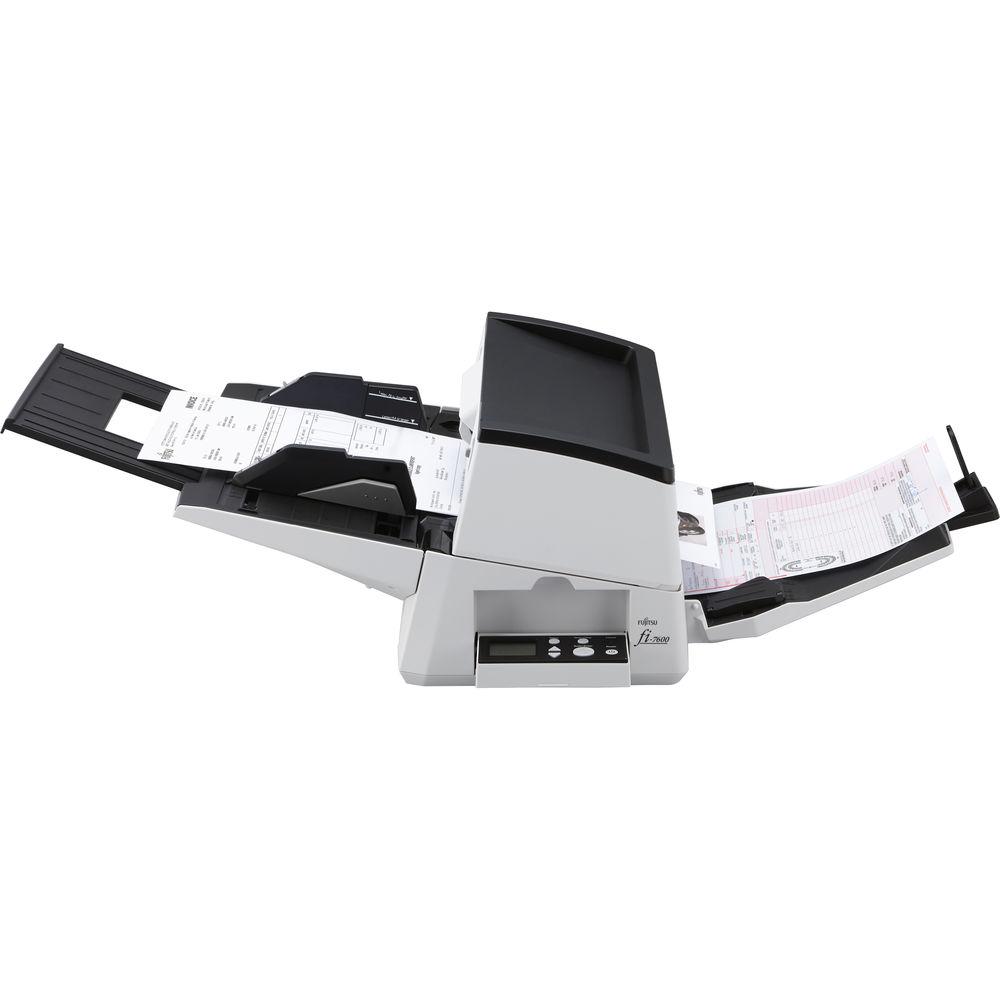

- There is an operation panel with an LCD on both sides of the unit for easier placement in your workspace.
- Scans plastic cards up to 55.1 mil or paper with a weight of 5.3-110 lb.
- Paper Picking Control function automatically controls the pressure put on the papers for smoother feeding.
- Manual/Single feed mode switch to help scan thick or layered documents.
- Stacker Side Guides help align documents after they are scanned for even stacks.
- Image processing functions include multi-image output, auto color detection, blank page detection, dynamic threshold (iDTC), Advanced DTC, SDTC, error diffusion, de-screen, emphasis, halftone, dropout color, sRGB output, hole punch removal, index tab cropping, split image, de-skew, edge correction, streak reduction, cropping, dither, static threshold, and divide long page.
- A straight paper path for the ADF reduces strain on documents as they are fed.
- ENERGY STAR and RoHS certified.
- Intelligent Sonic Paper Protection helps prevent and reduce damage to documents if a misfeed occurs.
- Intelligent MultiFeed function provides a method for manually feeding documents with sticky notes, taped receipts, and labels.
- Skew Reduction helps improve feeding and ensures that the entirety of your document is scanned.
- PaperStream IP provides TWAIN and ISIS driver support for the scanner and includes features such as Assisted Scanning, Advanced Image Cleanup, Auto Color Detection, Blank Page Detection, and Front and Back Merge.
- PaperStream Capture provides a user interface for adjusting scan settings and organizing files as they are scanned. This includes indexing and support for barcodes to help with organization.
- Bundled software includes PaperStream IP, 2D Barcode for PaperStream, PaperStream Capture, ScanSnap Manager for fi Series, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent, Software Operation Panel, and Error Recovery Guide.
UPC: 097564308888 In the Box Fujitsu fi-7600 Document Scanner Stacker ADF Paper Chute USB Cable AC Adapter and Cable Setup DVD-ROM Limited 3-Month Warranty More info from Fujitsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujitsu fi-7600 Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujitsu PA03740-B505 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 200 ipm (Color) | | Simplex Speed | 100 ppm (Color) | | Maximum Document Width | 12" / 30.5 cm | | Maximum Document Length | 220" / 558.8 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF | | Connectivity | USB 3.0 | | Wireless Connectivity | None | | Media Types | Plain Paper, Plastic ID Card | | Paper Weight | 5 to 110 lb / 20 to 413 gsm | | Maximum Paper Thickness | 55.1 mil / 1.4 mm | | Operating System Compatibility | Windows | | Light Source | LED | | Image Sensor | 2 x Charge-Coupled Device (CCD) | | Control Panel | 6 Buttons | | Drivers | TWAIN, ISIS | | Maximum Sheet Capacity | 300 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, RoHS | | Operating Humidity | 20 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Maximum Power Consumption | 55 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Dimensions | 25.2 x 18.6 x 8.4" / 64.0 x 47.3 x 21.4 cm | | Weight | 24.25 lb / 11 kg | | | | Package Weight | 32.4 lb | | Box Dimensions (LxWxH) | 23.1 x 19.7 x 15.6" |
