User Manual for Fujitsu fi-7700 Document Scanner Click to enlarge the picture
Contents of the user manual for the Fujitsu fi-7700 Document Scanner
- Product category: Flatbed & Document Scanners Fujitsu
- Brand: Fujitsu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujitsu Flatbed & Document Scanners
 |
User manual for the Fujitsu fi-7700 Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujitsu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujitsu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujitsu product will considerably shorten its lifespan!
|

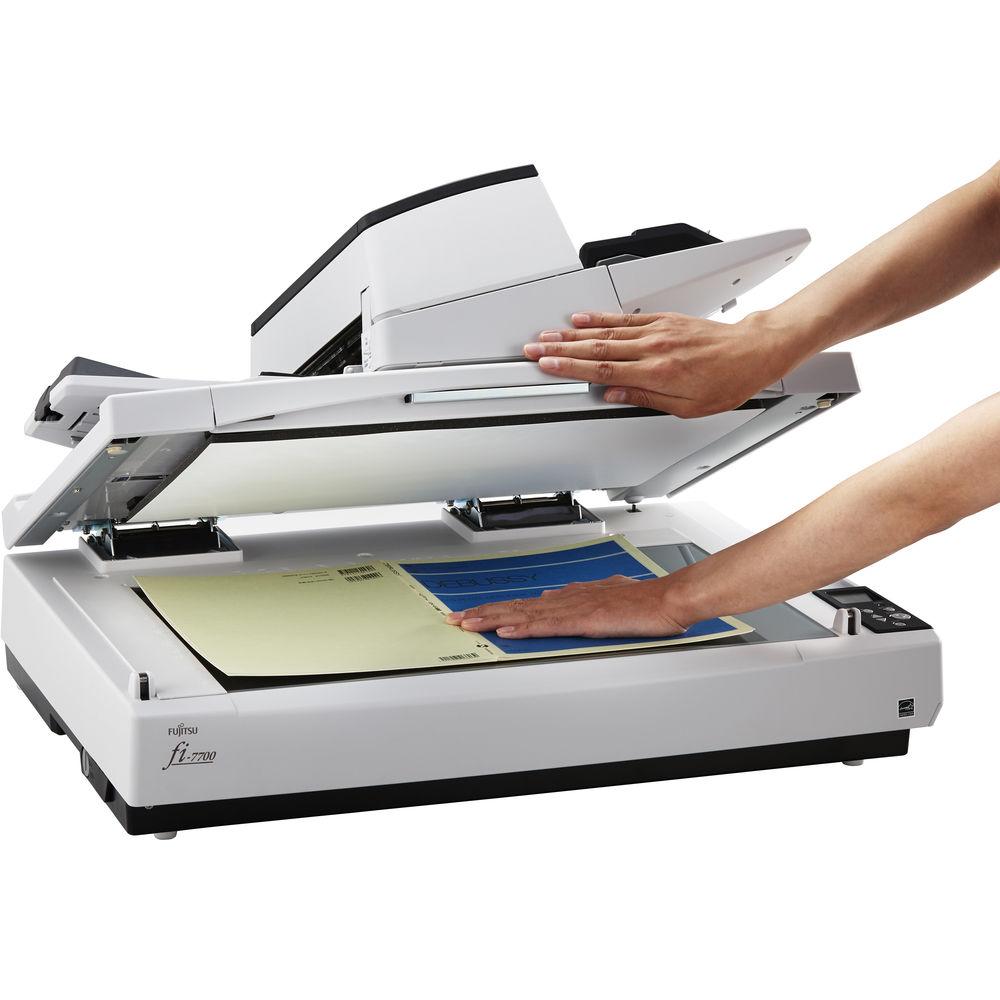

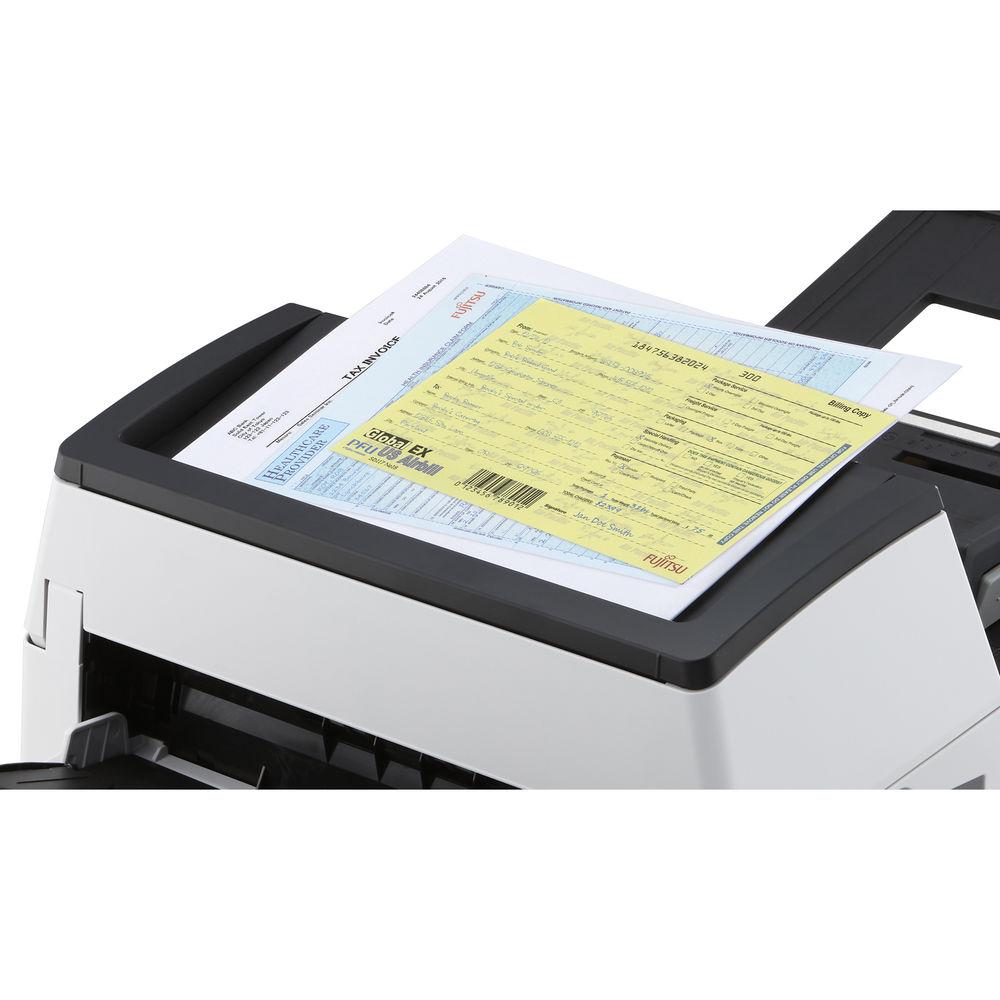

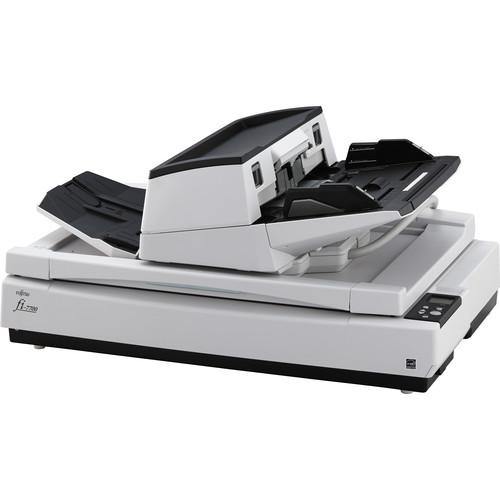

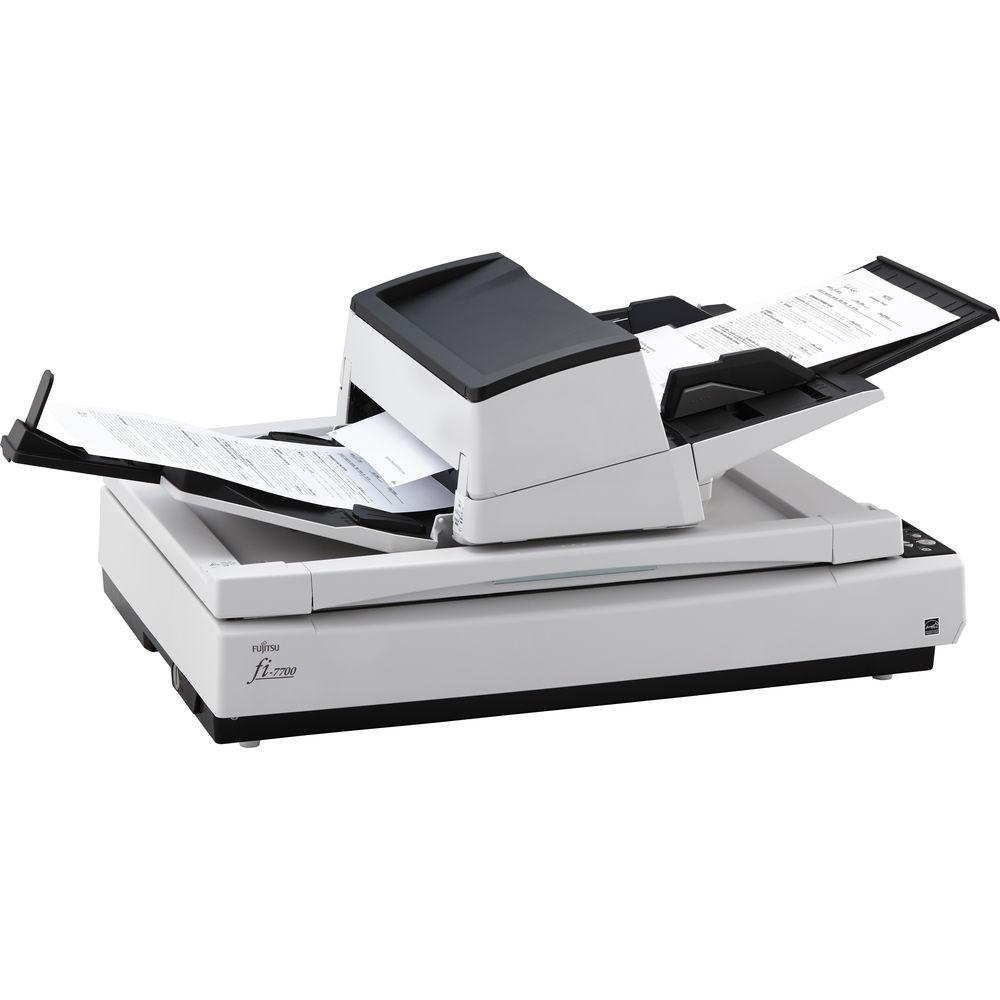

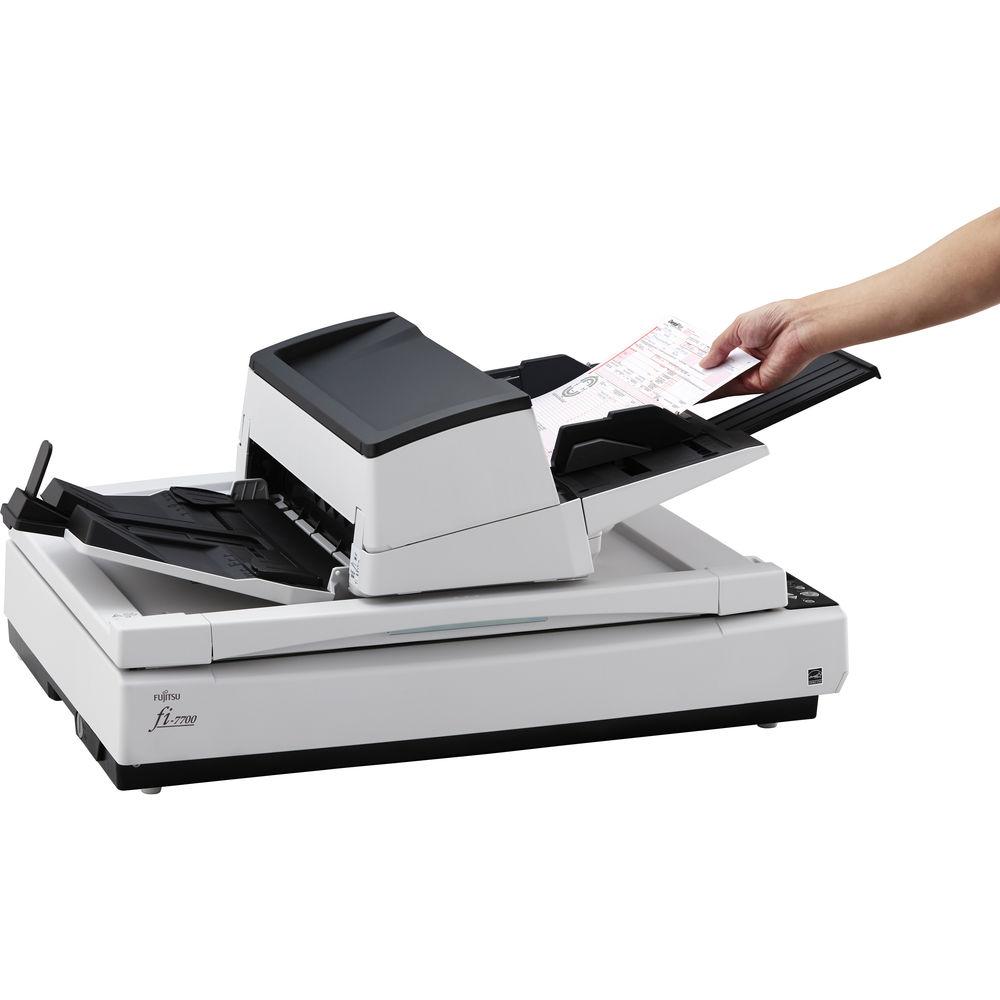

Product description For high-volume and highly demanding office environments, the fi-7700 Document Scanner from Fujitsu will provide the versatility and durability required for quickly scanning various types of documents. It supports standard documents, plastic ID cards, envelopes, books, magazines, and more due to the implementation of both a 300-sheet automatic document feeder and a 12 x 18" flatbed. The unit is quite fast as well, with the ability to produce a scan in just 0.6 seconds via the flatbed or operated at a speed of up to 100 ppm using the ADF. Along with this speed, the ADF also enables single-pass duplexing at 200 ipm and can handle long documents up to 12 x 220" in size. Additionally, guaranteeing everything is handled properly is an intelligent Sonic Paper Protection function.
Another advantage of the fi-7700 is the ability to rotate the ADF 180° in order to better fit the workspace. It also comes with the PaperStream IP driver for TWAIN and ISIS support and producing clean scans. PaperStream Capture is included as well to help integrate the scanner into your business's workflow and to perform batch scans. The fi-7700 works with Windows computers and connects via a fast USB 3.0 interface. - Integrated flatbed unit offers a scan area of 12 x 18" and can produce a scan in just 0.6 seconds.
- The high-capacity 300-sheet ADF can work with documents from 2 x 2.7" up to 12 x 17", or up to 12 x 220" in long document mode. It also features speeds of up to 100 ppm in simplex and 200 ipm in duplex.
- The ADF can be rotated 180° to better fit the workspace.
- Scans plastic cards up to 55.1 mil or paper with a weight of 5-110 lb.
- Image processing functions include multi-image output, auto color detection, blank page detection, dynamic threshold (iDTC), Advanced DTC, SDTC, error diffusion, de-screen, emphasis, halftone, dropout color, sRGB output, hole punch removal, index tab cropping, split image, de-skew, edge correction, streak reduction, cropping, dither, static threshold, and divide long page.
- A straight paper path for the ADF reduces strain on documents as they are fed.
- ENERGY STAR and RoHS certified.
- Intelligent Sonic Paper Protection helps prevent and reduce damage to documents if a misfeed occurs.
- Intelligent MultiFeed function provides a method for manually feeding documents with sticky notes, taped receipts, and labels.
- Skew Reduction helps improve feeding and ensures that the entirety of your document is scanned.
- PaperStream IP provides TWAIN and ISIS driver support for the scanner and includes features such as Assisted Scanning, Advanced Image Cleanup, Auto Color Detection, Blank Page Detection, and Front and Back Merge.
- PaperStream Capture provides a user interface for adjusting scan settings and organizing files as they are scanned. This includes indexing and support for barcodes to help with organization.
- Bundled software includes PaperStream IP, 2D Barcode for PaperStream, PaperStream Capture, ScanSnap Manager for fi Series, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent, Software Operation Panel, and Error Recovery Guide.
UPC: 097564308871 In the Box Fujitsu fi-7700 Document Scanner Stacker ADF Paper Chute USB Cable AC Adapter and Cable Setup DVD-ROM Limited 3-Month Warranty More info from Fujitsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujitsu fi-7700 Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujitsu PA03740-B005 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 200 ipm (Color) | | Simplex Speed | 100 ppm (Color) | | Maximum Document Width | 12" / 30.5 cm | | Maximum Document Length | 220" / 558.8 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Flatbed | | Connectivity | USB 3.0 | | Wireless Connectivity | None | | Media Types | Plain Paper, Plastic ID Card | | Paper Weight | 5 to 110 lb / 20 to 413 gsm | | Maximum Paper Thickness | 55.1 mil / 1.4 mm | | Operating System Compatibility | Windows | | Light Source | LED | | Image Sensor | 3 x Charge-Coupled Device (CCD) | | Control Panel | 6 Buttons | | Drivers | TWAIN, ISIS | | Maximum Sheet Capacity | 300 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, RoHS | | Operating Humidity | 20 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Maximum Power Consumption | 64 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Dimensions | 27.8 x 19.7 x 13.6" / 70.6 x 50.0 x 34.5 cm | | Weight | 77.16 lb / 35 kg | | | | Package Weight | 91.1 lb | | Box Dimensions (LxWxH) | 35.0 x 28.5 x 20.0" |
