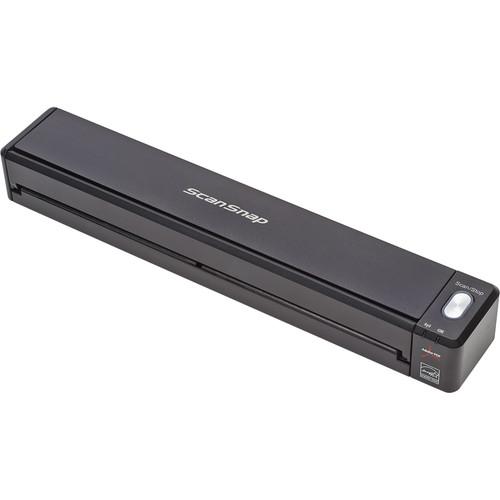

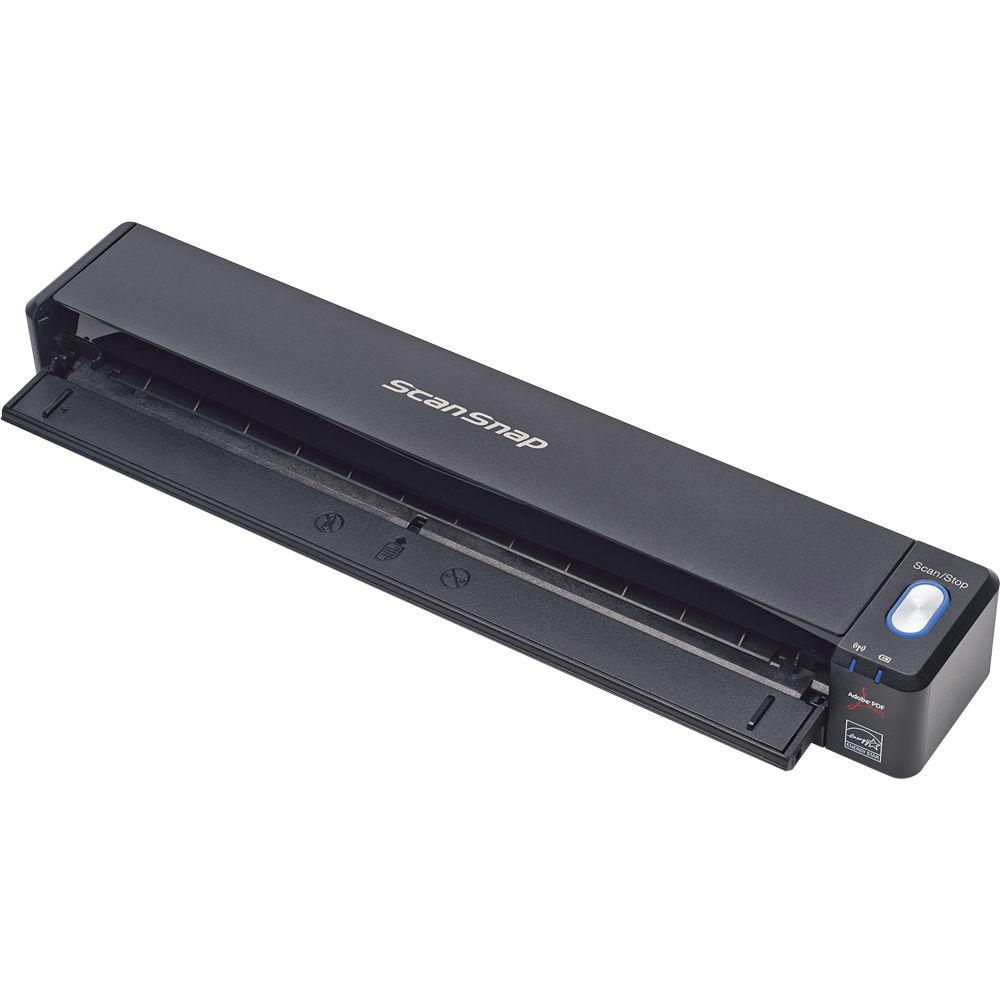

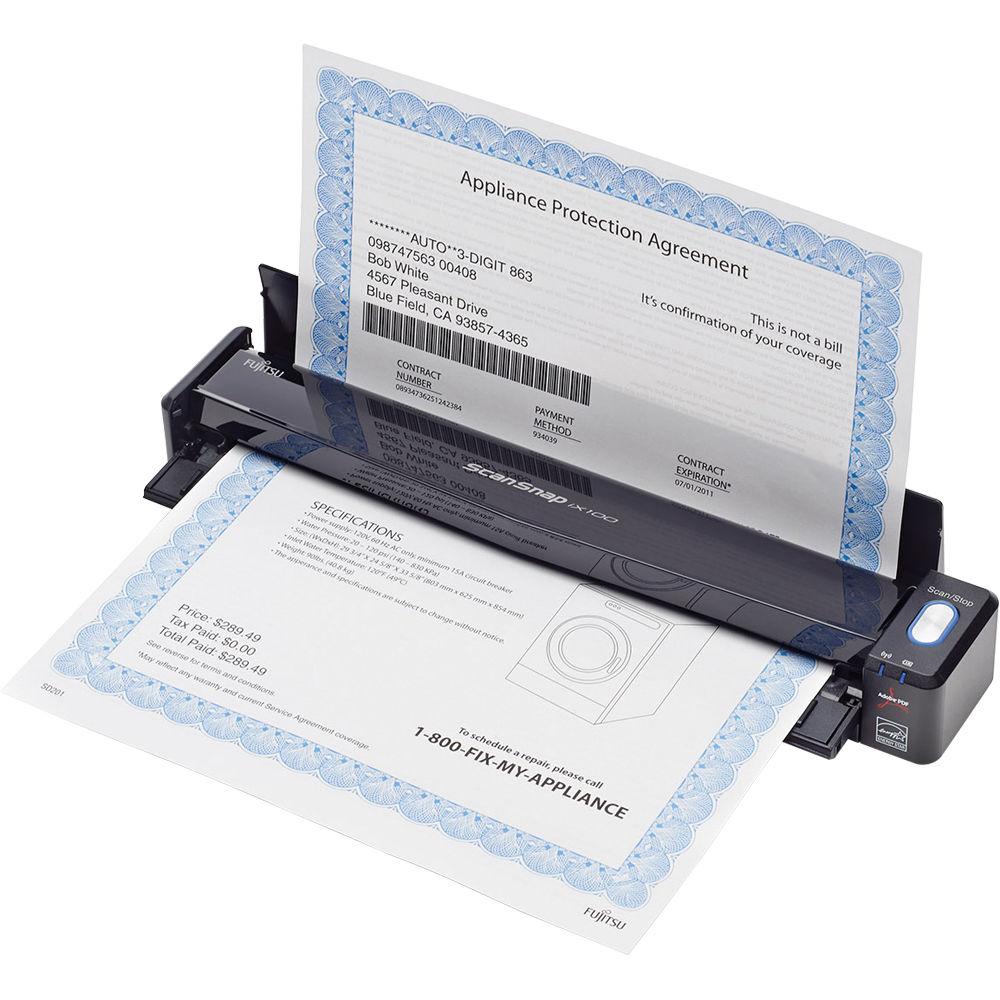

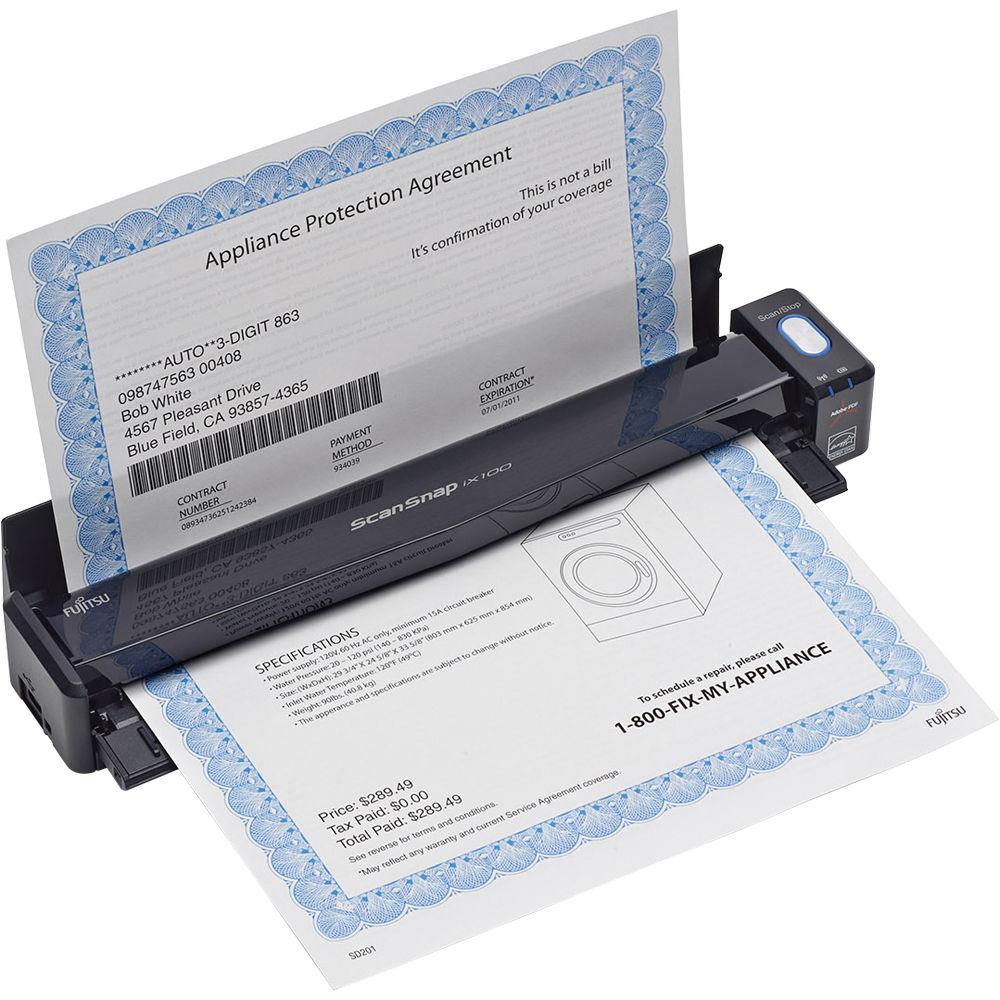

User Manual for Fujitsu ScanSnap iX100 Wireless Mobile Scanner Click to enlarge the picture
Contents of the user manual for the Fujitsu ScanSnap iX100 Wireless Mobile Scanner
- Product category: Portable Scanners Fujitsu
- Brand: Fujitsu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujitsu Portable Scanners
 |
User manual for the Fujitsu ScanSnap iX100 Wireless Mobile Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujitsu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujitsu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujitsu product will considerably shorten its lifespan!
|
Product description Video: Comparing Fujitsu Scanners Read More The battery-powered ScanSnap iX100 Wireless Mobile Scanner from Fujitsu provides users with a Wi-Fi capable portable scanning solution for working almost anywhere. The iX100 features an optical resolution of 600 dpi for detailed image capture and can work with documents from 1 x 1" all the way to 8.5 x 34" in size. Speed is also not an issue with the ability to scan a document in just 5.2 seconds at up to 300 dpi.
The unit's wireless connectivity enables scanning over a network to computers or mobile devices running the ScanSnap Connect application. It can also detect networks and automatically connect to commonly visited networks once initially set up. A Direct Connect mode then allows users to scan wirelessly without an infrastructure network.
Other modes include a Dual Scan feature that will scan two smaller documents simultaneously, and automatic stitching of a two-page spread. Warm-up time is fast at <2 seconds from Ready and the USB-rechargeable Li-ion battery will provide up to 260 scans from a single charge. Additionally, the iX100 has USB 2.0 connectivity for direct connection to a computer and scanning. - Automatic detection of color or black & white as well as correction for skew and orientation with blank pages removed
- Straight paper path allows for scanning of thicker documents like plastic credit cards
- Continuous Document Feeding function permits users to insert pages one after another for rapid scanning
- Quick Menu offers the ability to quickly change settings for different jobs such as scan to folder, email, print, mobile, or a variety of cloud services and applications
- Scan to mobile devices and computers, including Windows, Mac, iOS, Android, and Kindle devices, with the ScanSnap Connect application
- Scan directly to cloud services like Dropbox, Evernote, Google Docs, SugarSync, Salesforce Chatter, and SharePoint Online
- ScanSnap folder can act as a host folder for transmitting scans directly to your favorite applications
- ScanSnap Manager V6.3 driver is included along with ScanSnap Organizer V5.2 (V1.1 for Mac OS), CardMinder V5.2, ABBYY FineReader for ScanSnap 5.0, and Scan to Microsoft SharePoint
UPC: 097564308444 In the Box Fujitsu ScanSnap iX100 Wireless Mobile Scanner USB Cable Setup DVD-ROM Limited 1-Year Warranty Brochure PDF 4.5mbeqeqbwqstccs More info from Fujitsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujitsu ScanSnap iX100 Wireless Mobile Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujitsu iX100 Specs | Scanner Type | CDF (Continuous Document Feeding), Simplex sheetfed two-way paper pass (straight path, U-turn path) | | | | Scan Sensor | 1 x Contact Image Sensor (CIS) | | Scan Modes | Color, grayscale, monochrome, automatic (color/grayscale/monochrome detection) | | Optical Resolution | 600 dpi | | | | Scan Speed | Auto: 5.2 sec/page
Normal (150 dpi): 5.2 sec/page
Better (200 dpi): 5.2 sec/page
Best (300 dpi): 5.2 sec/page
Excellent (600 dpi): 20.4 sec/page | | Document Size | Normal Mode: A4, A5, A6, B5, B6, business card, postcard, letter, legal, and custom sizes from 1.0 x 1.0" to 8.5 x 14.2" (25 x 25 mm to 216 x 360 mm)
Normal Mode with Carrier Sheet: A3, B4, double letter, photographs, A4, A5, A6, B5, B6, business card, postcard, letter, legal, and custom sizes from 1.0 x 1.0" to 8.5 x 14.2" (25 x 25 mm to 216 x 360 mm)
Long Paper Scanning (300 dpi or less): Max. 8.5 x 34.0" (216 x 863 mm) | | Paper Weight | Straight Path: 14-56 lb (52.3-209.3 gsm)
U-Turn Path: 14-20 lb (52.3-80.0 gsm) | | Paper Thickness | Non-Embossed Card: 29.9 mil (0.76 mm)
Embossed Card: 29.9 + 18.9 mil (0.76 + 0.48 mm) | | Warm-Up Time | From Ready: <2 sec
From Chute Cover Closed: <3 sec | | | | Computer Interface | USB 2.0 (USB 1.1 compatible)
Wi-Fi | | Driver | ScanSnap Manager | | System & Software Requirements | Windows
Windows Vista SP2 (32/64-bit), 7 SP1 (32/64-bit), 8/8.1 (32/64-bit)
Intel Core 2 Duo 2.2 GHz or higher (Intel Core i5 2.5 GHz or higher recommended)
2 GB memory or more for 64-bit computers (4 GB or more recommended)
1 GB memory or more for 32-bit computers (4 GB or more recommended)
1024 x 768 display resolution for Windows 8/8.1
800 x 600 display resolution for Windows 7 and Vista
2690 MB or more free hard disk space
DVD-ROM drive for installation
USB 2.0 / USB 1.1 port
Macintosh
Mac OS X 10.7-10.9
Intel Core 2 Duo 2.2 GHz or higher (Intel Core i5 2.5 GHz or higher recommended)
2 GB memory or more (4 GB or more recommended)
1024 x 768 display resolution
1930 MB or more free hard disk space
DVD-ROM drive for installation
USB 2.0 / USB 1.1 port | | | | Light Source | Three color LED (red, green, blue) | | Certifications | ENERGY STAR qualified
RoHS | | Power Source | 1 x Li-ion battery (3.7 V, 720 mAh) | | Battery Life | 260 sheets | | Power Requirements | 5 VDC, 0.5 A | | Power Consumption | Operation: 4.7 W or less
Sleep Mode: 2.2 W or less
Auto Standby (Off): <0.5 W | | Operating Conditions | Temperature: 41 to 95°F (5 to 35°C)
Humidity: 20 to 80%, non-condensing | | Dimensions | 10.7 x 1.9 x 1.4" (273 x 48 x 36 mm) | | Weight | 0.9 lb (400 g) | | | | Package Weight | 1.725 lb | | Box Dimensions (LxWxH) | 12.4 x 5.55 x 2.85" |
