User Manual for Furman 6-Channel Power Distributor Click to enlarge the picture
Contents of the user manual for the Furman 6-Channel Power Distributor
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
 |
User manual for the Furman 6-Channel Power Distributor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|

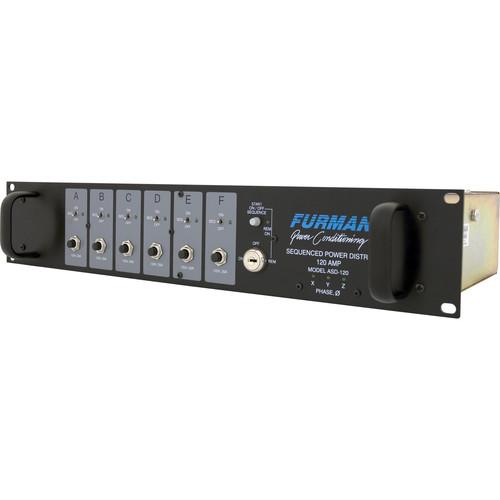

Product description The Furman ASD-120 AC Sequenced Power Distro is an extremely compact, low-cost rackmount power-distribution system that is ideal for mobile PA systems, touring musical and theatrical acts, mobile recording facilities, on-location film and video shoots, and more. It is ideal for any situation where AC power must be distributed to multiple circuits and a hard-wired, built-in system is missing, inadequate, or impractical. The ASD-120 allows for six circuits to be powered up in a sequenced fashion, and the sequence is reversed for power down. The delay interval is user-adjustable via an internal trim pot. The front panel provides a three-position switch for each circuit that allows each circuit to be part of the power-up/down sequence, or to remain on or off apart from the sequence. An LED indicates when either the power-up or power-down sequence is in progress. The sequence can be initiated with either momentary or maintained switches, locally or remotely. A duplex outlet is provided for each delay step.The distributor has a low-voltage lockout that prevents the unit from sequencing on when the line voltage is too low. - The ASD-120 can handle up to 120 amps of incoming power, distributing it to six 20-amp, 120V circuits. Each circuit has a front-panel status indicator that lights up when it is turned on, and a 20-amp duplex outlet on the rear panel.
- Since the sequence control signals are also available on the rear panel, one or more ASD-120s may be installed in remote locations and operated via low-voltage control wiring. The sequence-control signals can also drive PowerPorts, MiniPorts, PS-PRO and PS-8-R Power Sequencers, or any other circuits that need to know when their particular time delay has elapsed. Using one or more ASD-120's can provide the capability of controlling power and power sequencing for an entire system.
- This unit incorporates four oversized busses, allowing wiring for 120V or 240V single-phase, or 208V three-phase power. A strain relief clamp is provided that can accommodate a cable or wire bundle up to 1.5" in diameter. Cable termination is a simple process of breaking out and stripping the individual conductors and connecting them with set screws, and then tightening the strain relief clamp.
- Spike-Clamping Voltage: TVSS rating 400V peak, L-N, N-G, L-G (tested to UL 1449)

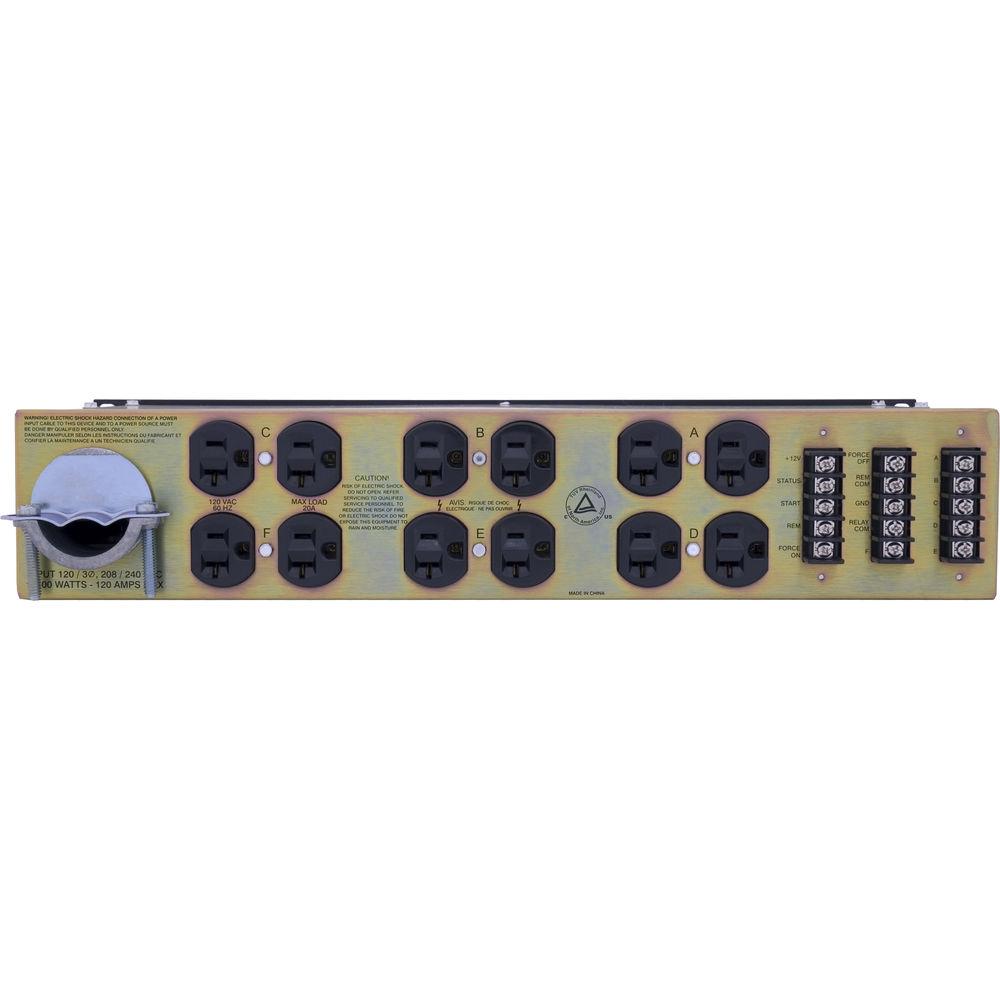

- Six widely spaced duplex outlets on rear panel
- The REMOTE function can be set using 3 dip (12V ON, 12V OFF, GND ON, MAINTAINED/MONMENTARY) switches under the front-panel security cover.
- The trim pot and the 3 dip switches (1M, 2M, 4M) settings are on the front panel under the security cover. The maximum time is 7 minutes per step.
- A locking switch with a removable key is provided for maximum security.
- Steel chassis, zinc-chromate plating; .125" brushed and black anodized-aluminum front panel.
UPC: 654061041184 In the Box Furman 6-Channel Power Distributor (Version 2) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman 6-Channel Power Distributor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman ASD-120 2.0 Specs | Input | Input Current: 120 A
Input Voltage: 120/240 V single phase, or 208 V 3-phase | | Output | Six identical 20 A, 120 V circuits | | Output Current | Current limitation on 12V supply expanded to up to 250 mA | | Surge Energy Rating | Maximum Surge Current: 6500 A
Maximum Spike Energy: 80 joules per circuit | | Remote Output | Standardized, using 4-P (+12V, STATUS, REM, GND) removable Phoenix connector on rear panel | | Connector | 8-P Removable Phoenix connector on rear panel | | Low Voltage Control | Low-voltage lockout that prevents the unit from sequencing on when the line voltage is too low | | Audible Alarm | No | | Compatibility | 19" rack | | Environmental Requirements | None listed | | Agency Certifications | ETL/CETL listed | | Dimensions | 3.5 x 19 x 10" (8.9 x 48.3 x 25.4 cm) | | Weight | 18 lb (8.2 kg) | | Equipment Protection | None | | | | Package Weight | 19.45 lb | | Box Dimensions (LxWxH) | 21.8 x 18.7 x 8.0" |
