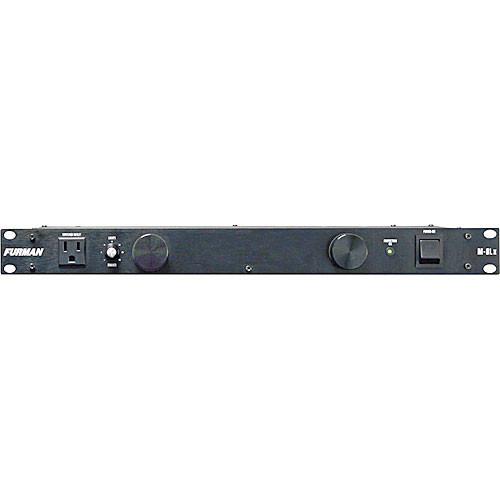

User Manual for Furman M-8Lx Merit X Series 8 Outlet Power Conditioner & Surge Protector - with Dual Rack Lights Click to enlarge the picture
Contents of the user manual for the Furman M-8Lx Merit X Series 8
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
|
User manual for the Furman M-8Lx Merit X Series 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description The Furman M-8Lx Merit X Series 8 Outlet Power Conditioner is a low-cost AC power solution for rack mount systems. Install an M-8Lx in the top slot of your rack, and the eight switched AC outlets in the rear panel will power up and protect all your equipment up to a 15A load. The M-8Lx also features an additional AC outlet on the front panel, and two pull-out light tubes for rack illumination, with dimmer control. Merit X Series conditioners protect your delicate electronic equipment by combining high voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit quickly responds, and clamps transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of "electronic pollution" from contaminating the AC line, and from there leaking into sensitive audio, video, or computer circuits. The M-8Lx features two slide out, swiveling light fixtures that provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level. - The rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters.
- A circuit breaker is provided on the rear panel. If the total load on the Power Conditioner (combining all outlets) exceeds the 15A (or 1800W limit), the circuit breaker will trip. It may be easily reset by pushing in a button.
- A convenient master switch for the rear outlets which glows when the power is on. There is a separate "Rack Lights" switch for the lamps, plus a dimmer control knob which regulates the lamps' brightness.
- Standard level filtration from radio frequencies and electromagnetic interference.
- Operating Voltage: 90-140 VAC
UPC: 654061027942 In the Box Furman M-8Lx Merit X Series 8 Outlet Power Conditioner & Surge Protector - with Dual Rack Lights 3-Year Warranty User Manual PDF 3mbeyssefdbrdttcs Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman M-8Lx Merit X Series 8 Outlet Power Conditioner & Surge Protector - with Dual Rack Lights in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman M8Lx Specs | Input | 1x 6' 14 AWG power cord with 3-prong plug | | Output | 8x rear panel 3-prong AC power outlets
1x Front panel 3-prong AC power outlet | | Surge Energy Rating | 170 Joules | | Noise Attenuation | Transverse mode: Greater than 26dB, 200 KHz to 10 MHz | | Audible Alarm | N/A | | Compatibility | 19" Rack system | | Agency Certifications | TUV, TUV-C | | Dimensions | 19 x 7.5 x 1.75" (48.3 x 19.0 x 4.5cm) WxDxH | | Weight | 5.5 lbs (2.5kg) | | Equipment Protection | None | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 21.7 x 9.4 x 3.4" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
